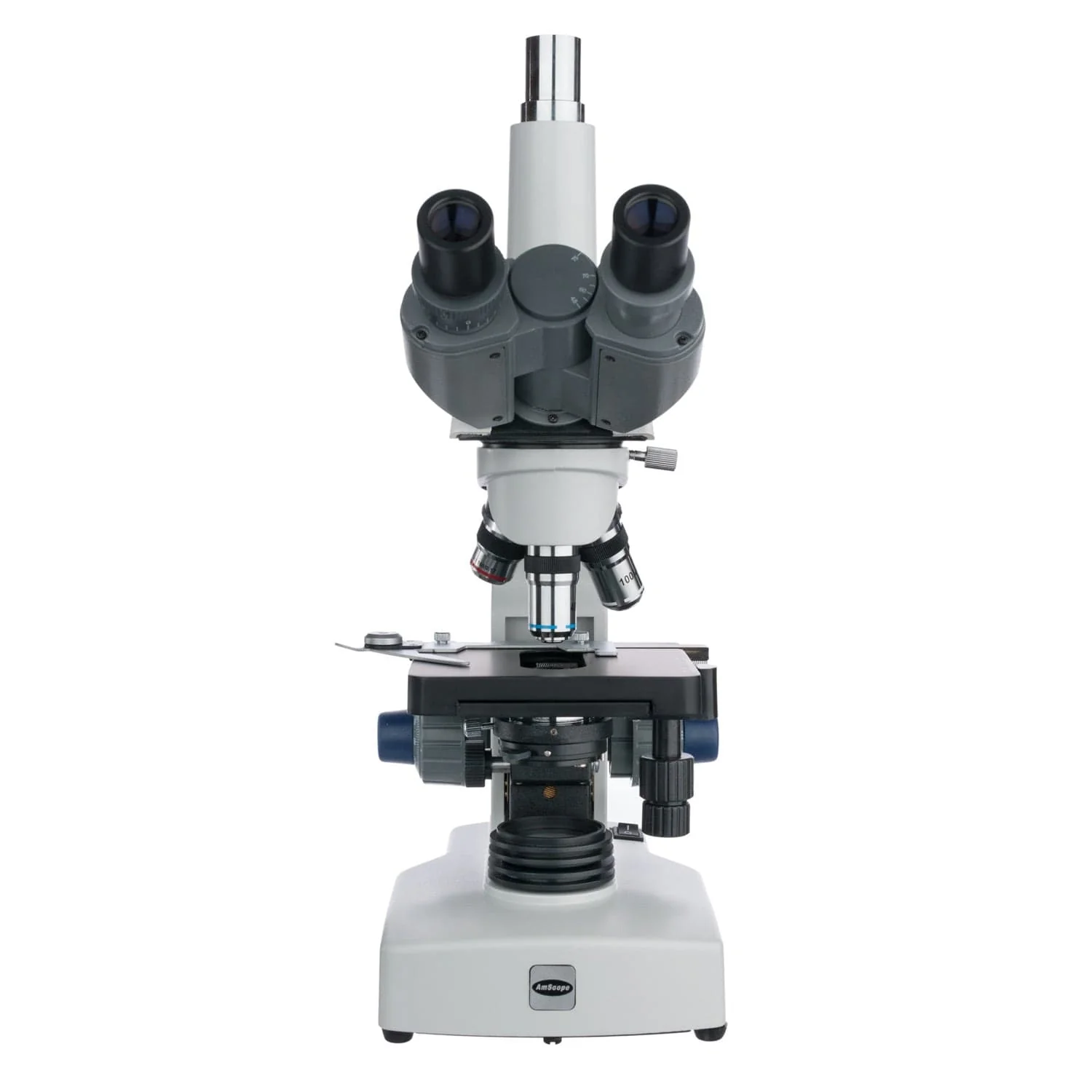

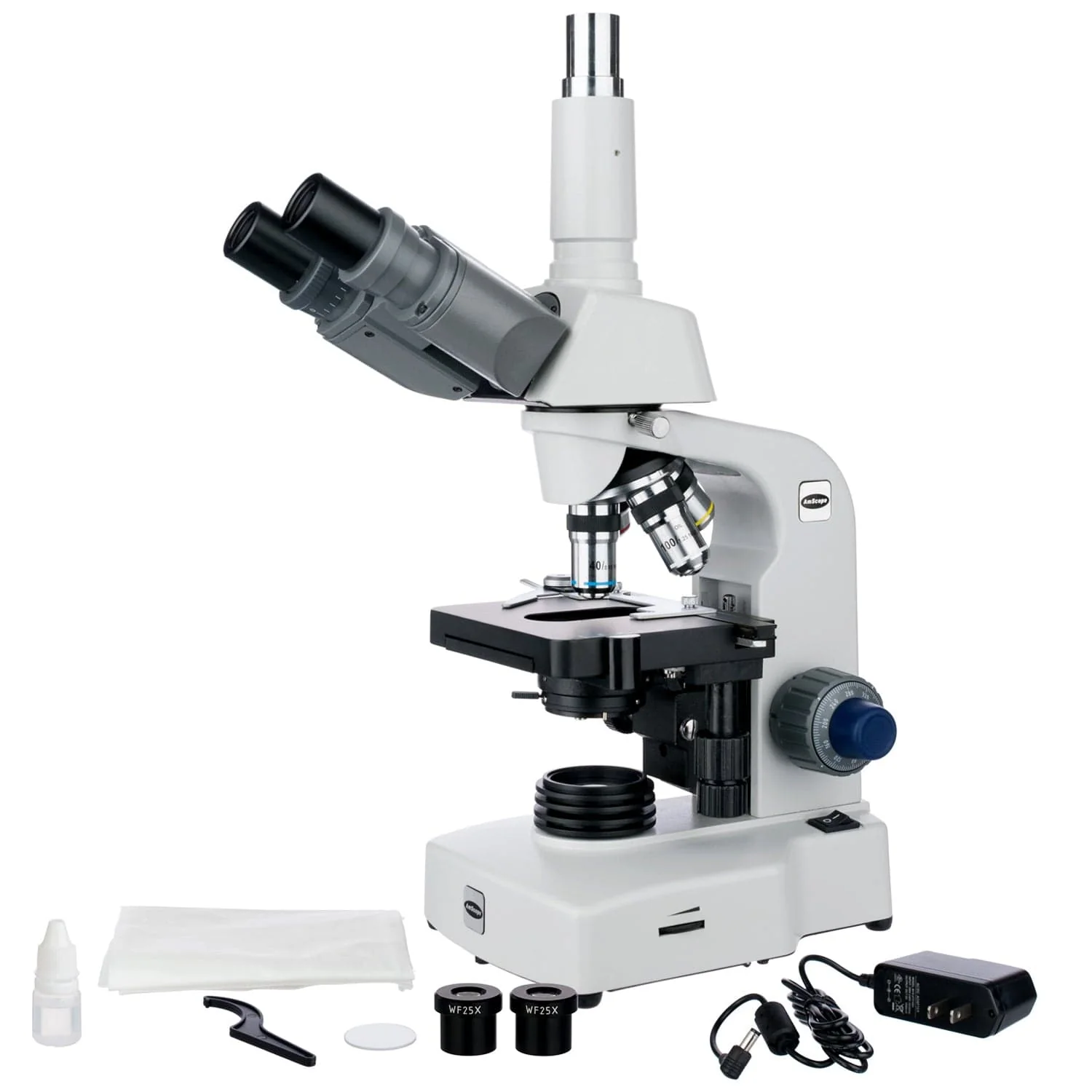

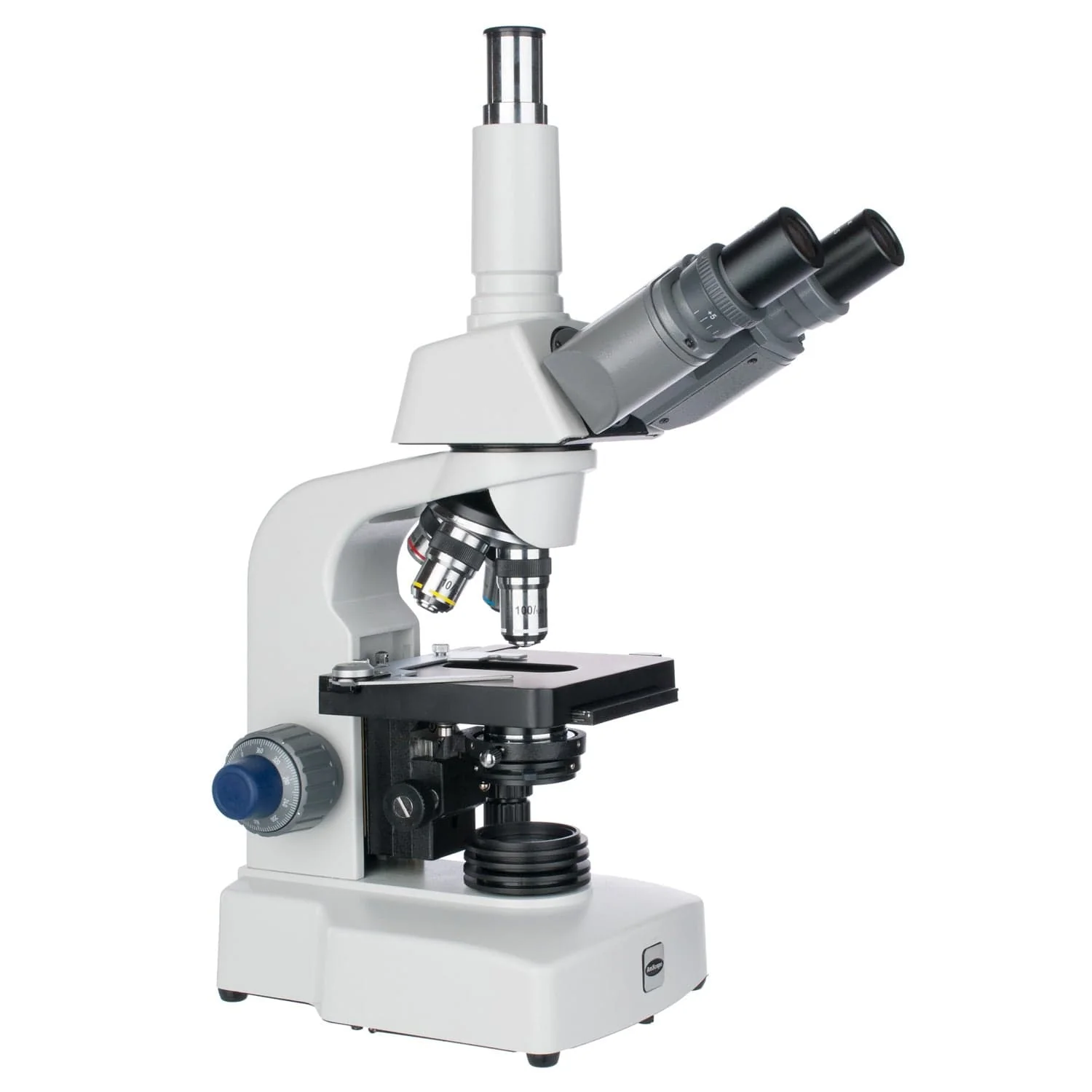

AmScope T450C Outlet 2500X LED Siedentopf Trinocular Compound Microscope with 3D Mechanical Stage

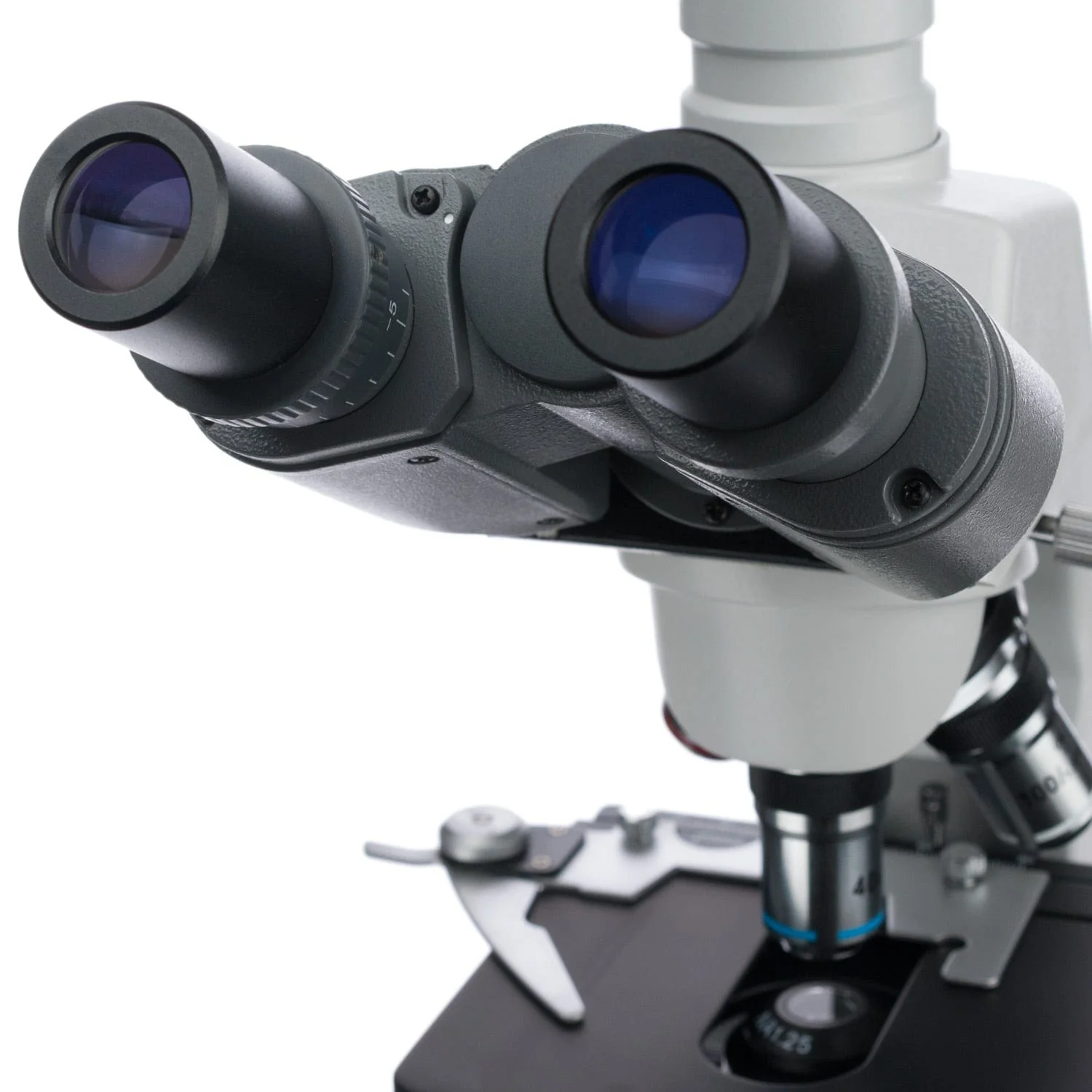

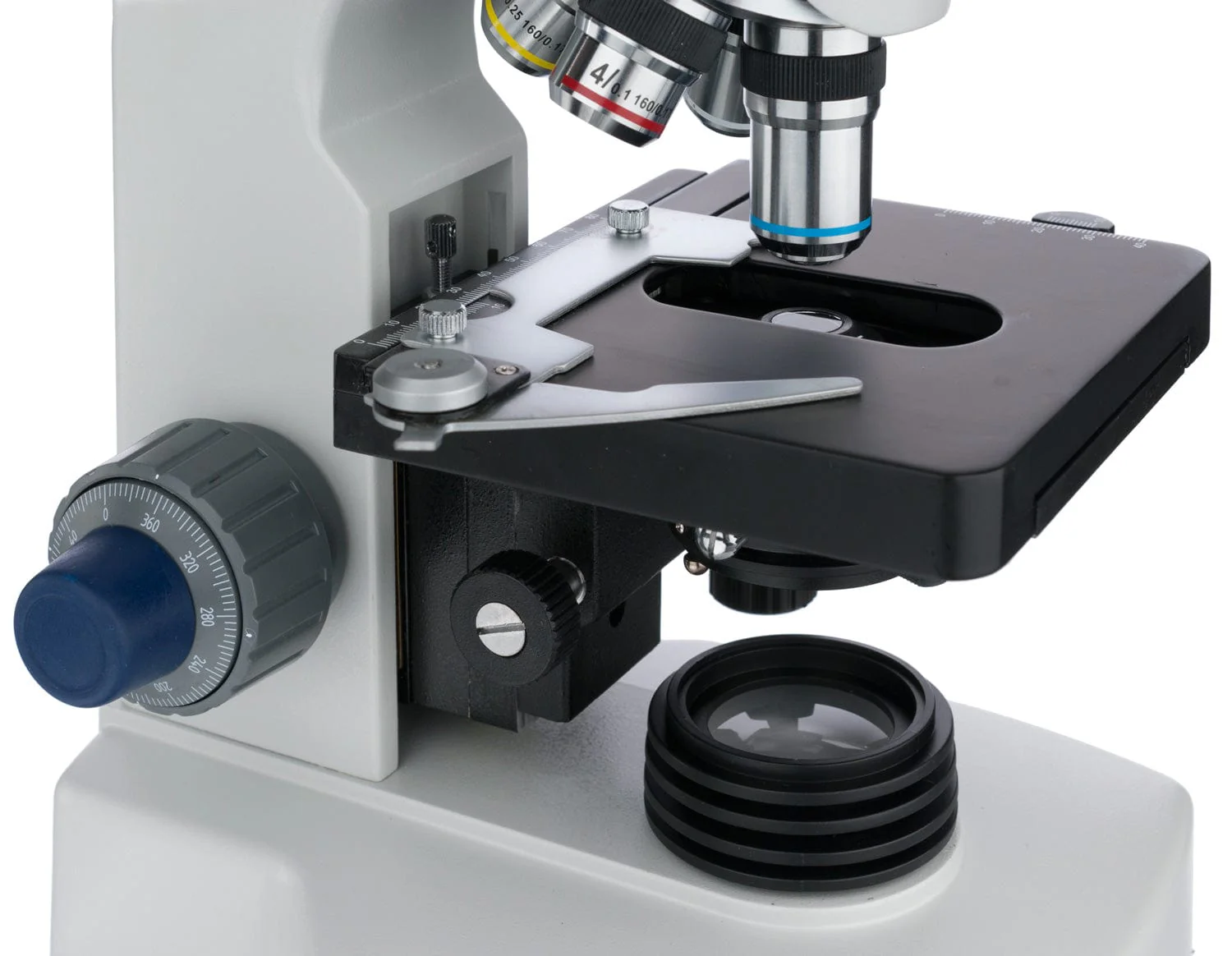

This trinocular compound microscope is designed for clinical examination and teaching demonstration in medical fields, veterinary offices, laboratories and colleges. The observation head has a 30° incline for comfort, and can swivel 360° for flexible viewing angle. The Siedentopf interpupillary adjustment allows easy fitting for any user. The 3D mechanical stage provides a wide range of movement, and is ergonomically designed for low-fatigue use. The variable-intensity LED illumination system provides a super-bright light source while maintaining a much lower temperature than halogen illumination. The trinocular port adds an additional port for a camera.

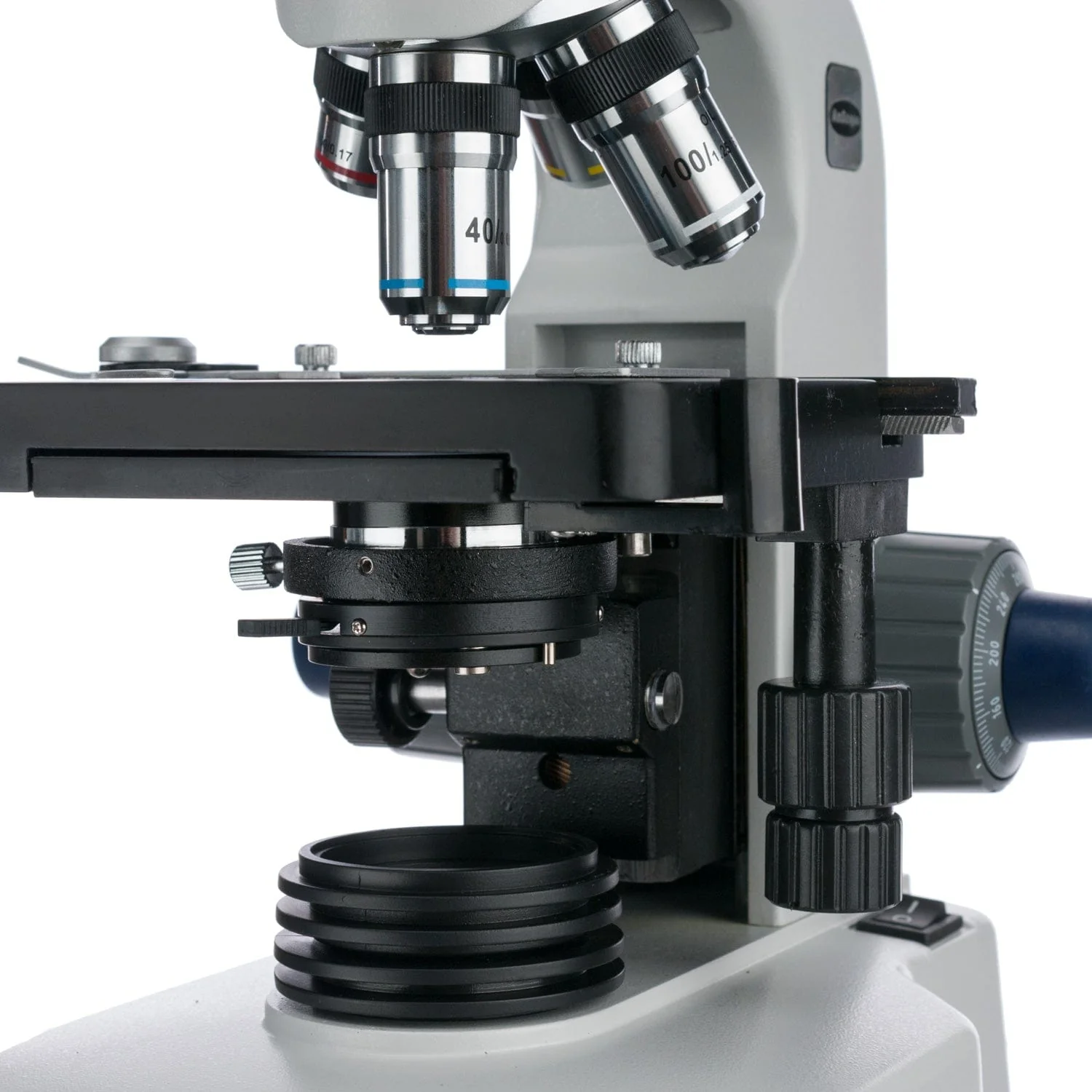

The reversed objective turret is less obstructive than conventional forward turrets, and provides instant access to 4 magnification levels to easily focus in on minute details from 40X to 1000X. Additional 25X eyepieces extend the maximum magnification to 2500X, and 6 distinct levels of magnification to cover a wide range of specimens. The high-quality lenses are achromatically corrected to improve resolution and color accuracy.
This is an ideal instrument for schools, clinics, veterinarians, and general use. It offers a wide range of optional accessories to expand the functionality. The magnification range can be expanded with a large selection of objective and ocular lenses. Specialized condensers are available for dark-field and phase-contrast applications, ideal for bloodwork, fluid-analysis, and pathology.
Specifications
| Optical System | Finite |
| Mechanical Tube-length | 160mm |
| Head | Trinocular, 30° incline, 360° rotatable |
| Interpupillary Adjustment | Compensation-free gemel |
| Interpupillary Range | 53-77mm |
| Ocular Tube Diameter | 23mm |
| Eyepieces | 10X, 25X |
| Photo-port | Height-adjustable 23mm tube |
| Nosepiece | Quadruple reverse |
| Objective Lenses | 4X, 10X, 40X (spring), 100X (spring, oil) |
| Focusing System | Coaxial coarse and fine focus, upper limit-stop, tension-control |
| Stage | Double-layer 142mm x 114mm |
| X-Y Translation Range | 78mm x 53mm |
| Sub-stage Condenser-holder | Rack-and-pinion |
| Condenser | Achromatic Abbe condenser, NA1.25 |
| Transmitted Illumination | LED |
Objective Lenses
| Magnification | Corrections | NA | Cover-glass Thickness |
|---|---|---|---|
| 4X | Achromatic | 0.10 | 0.17mm |
| 10X | Achromatic | 0.25 | 0.17mm |
| 40X | Achromatic | 0.65 | 0.17mm |
| 100X | Achromatic | 1.25 | 0.17mm |
Magnification Chart
| Eyepiece | Objective | |||
| 4X | 10X | 40X | 100X | |
| 10X | 40X | 100X | 400X | 1000X |
| 25X | 100X | 250X | 1000X | 2500X |
Packing List :
