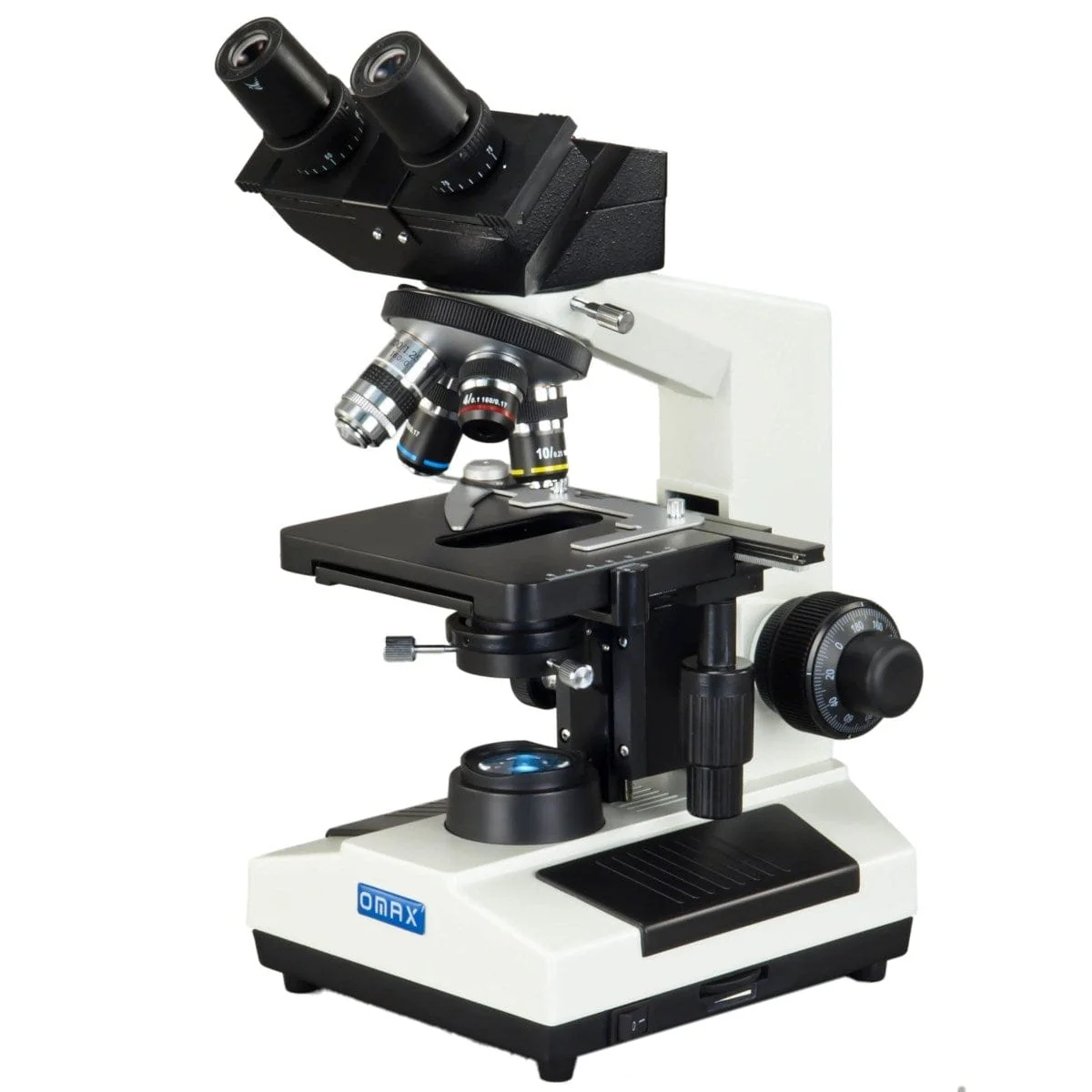

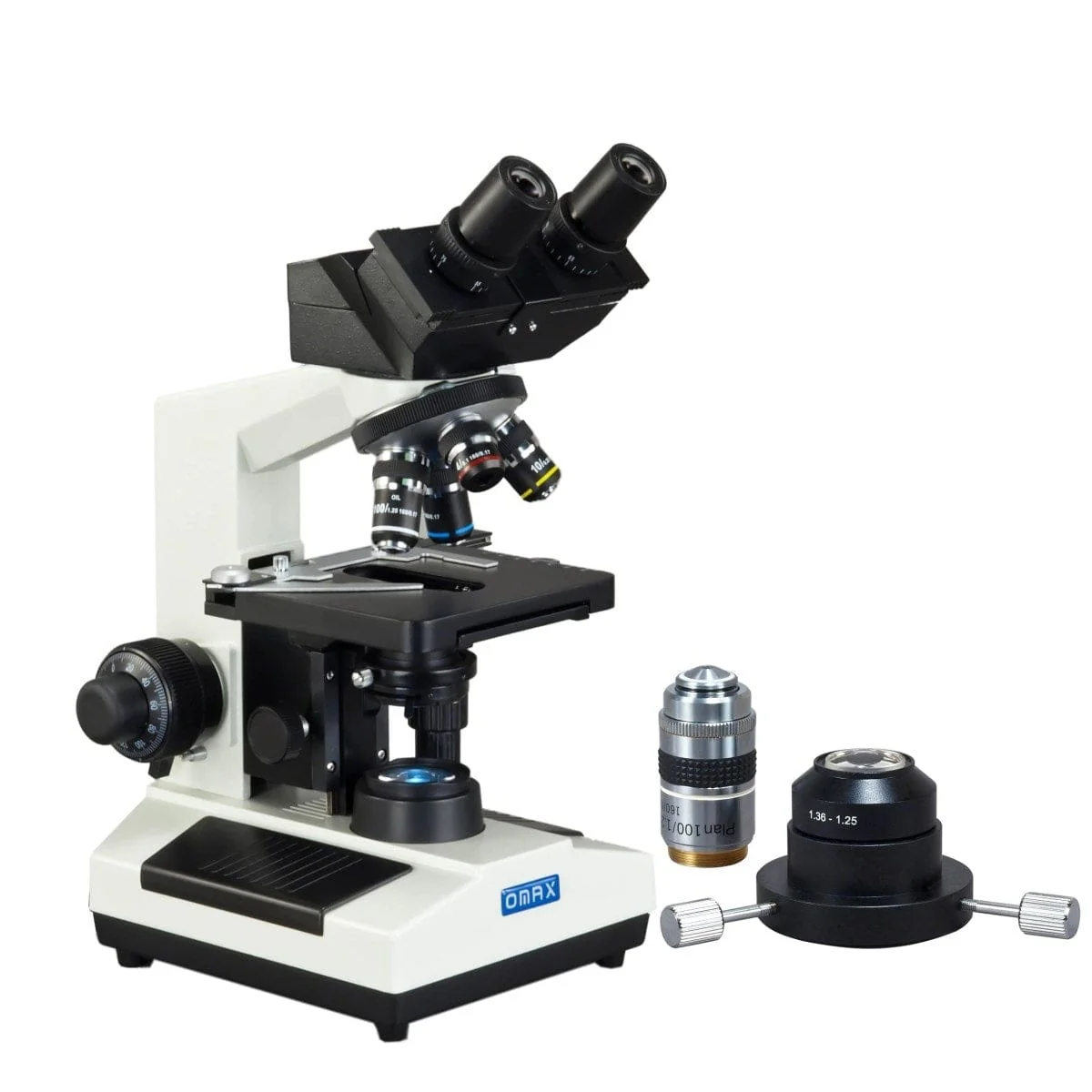

OMAX MD827S30L-A191BOIL Binocular Biological Microscope with 2000X Magnification LED
OMAX Digital Microscopes integrate advanced digital-imaging with precision optical-microscopy. Digital-integration promotes uniformity, and presents a simplified method for setting up and using microscopes. A simple USB connection allows you to view real-time images on your PC. The integrated camera can be used for monitoring and recording still images and video. The included Windows software features a wide range of measurement and editing tools, lending itself perfectly to the classroom or clinic with its ability to record, measure, and comment.
OMAX provides a large range of solutions for education, research, and industry. Building on industry standards, we provide a full range of accessories to suit your needs.
The OMAX MD827S30L brings photomicrography to the classroom or clinic. This hybrid design combines all of the fundamental functionality needed in optical microscopy with 3MP integrated digital imaging.

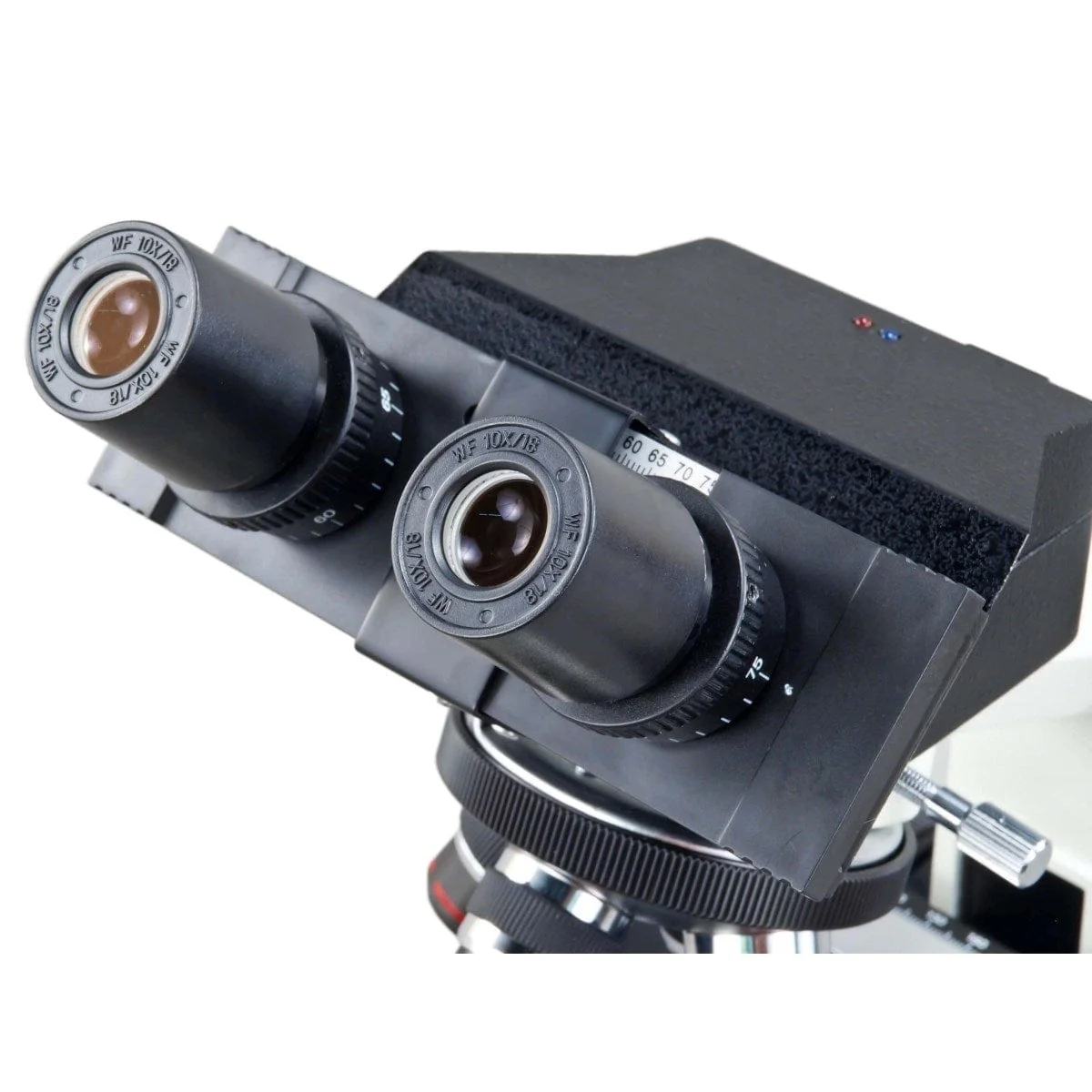

The MD827 series microscope uses a binocular viewing head. To customize the microscope to your viewing comfort, the eyepiece spacing can be easily adjusted using a simple sliding mechanism. Diopters are available on each ocular tube to fine-tune the eyepieces, and the ocular tubes are angled at 45° to accommodate sitting or standing. Various eyepieces can be used to increase the overall optical magnification without changing the camera's magnification.
The objective turret provides instant access to 4 magnification levels to easily focus in on minute details from 40X to 1000X. For traditional viewing, additional 20X eyepieces extend the maximum magnification to 2000X, and provides 8 distinct levels of magnification. The high-quality lenses are achromatically corrected to improve resolution and color accuracy.

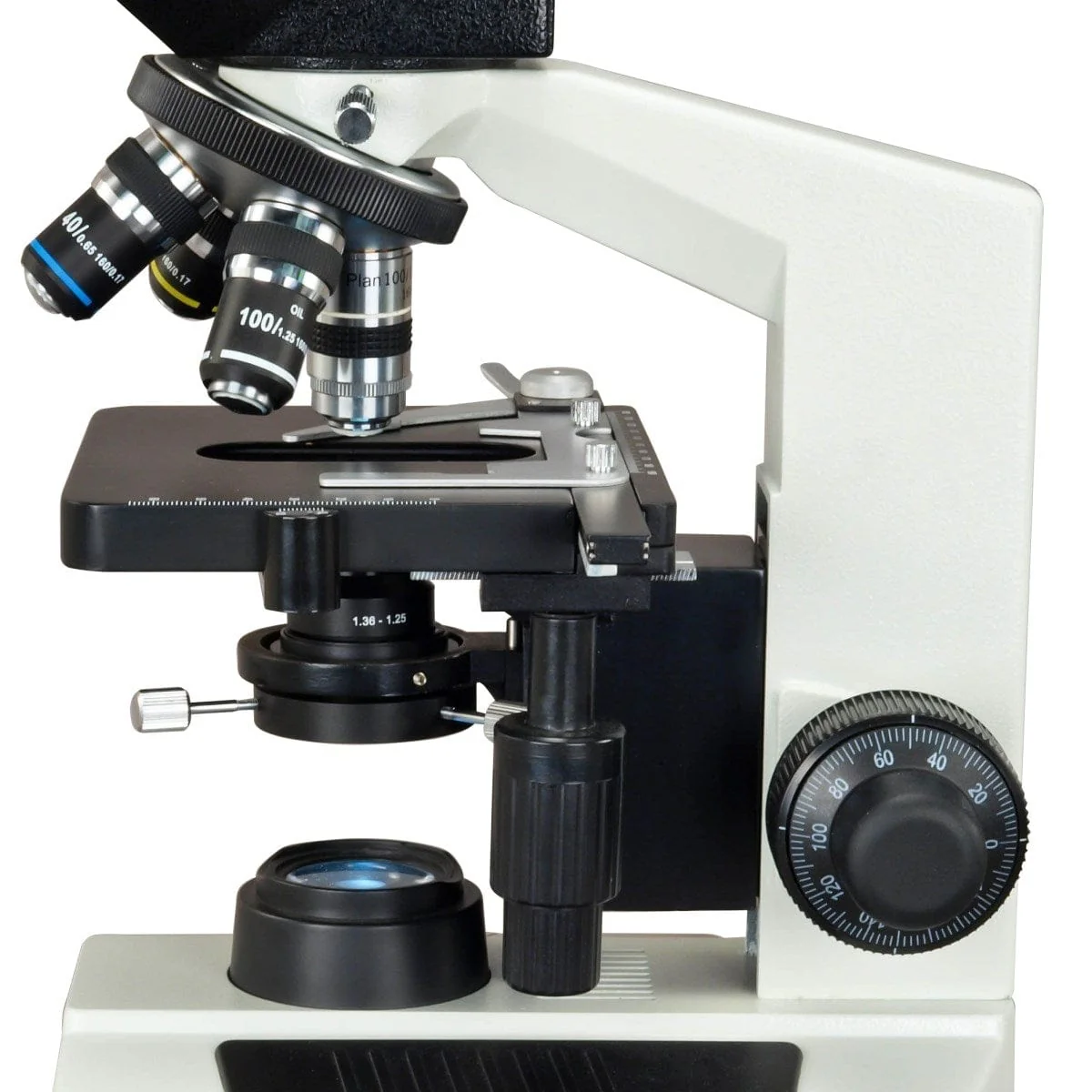

The 2-layer mechanical stage provides smooth and precise movement for examination of specimen slides. The stage's low-position controls are conveniently placed near the coaxial focus knobs for a streamlined workflow. The LED sub-stage lighting provides cool, energy-efficient illumination. The light-source is daylight balanced to produce natural colors for imaging. Additionally, specialized condensers are available for advanced techniques, such as darkfield and phase-contrast.

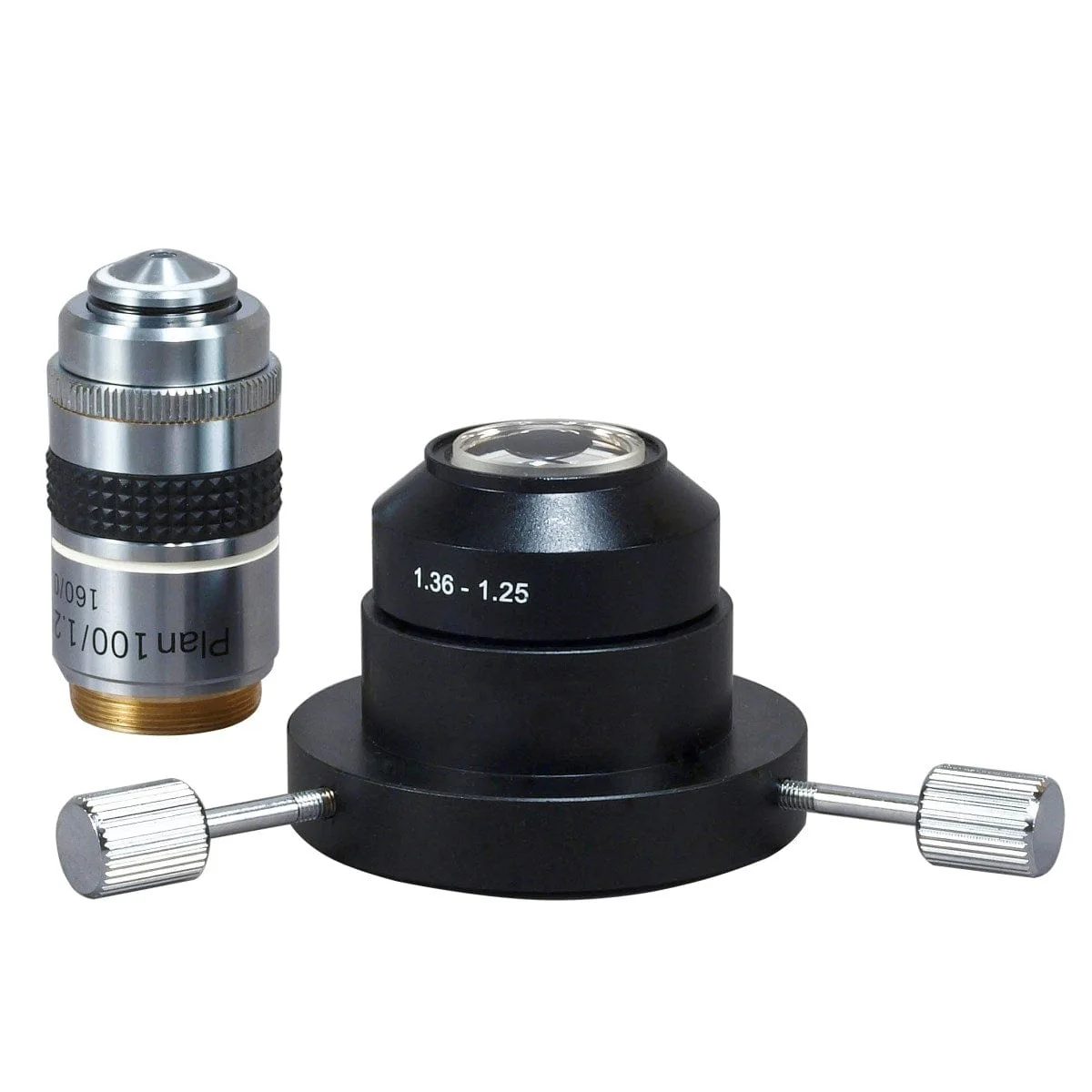

An oil darkfield condenser and a 100X plan-achromatic darkfield objective lens are included for darkfield observation at high magnification. The condenser works with dry and immersion lenses, providing optimal contrast with oil objectives. The 100X darkfield objective has a built-in iris to manipulate its numerical aperture. This lets you fine-tune the contrast. Darkfield observation will provide contrast in otherwise indistinguishable objects by highlighting changes in refractive index. This is particularly helpful for live cell study including blood cell analysis.
Specifications
| Optical System | Finite-conjugate |
| Tube Length | 160mm |
| Head | Digital-integrated binocular, 45° incline, 360° rotatable |
| Interpupillary Adjustment | Sliding, 55-75mm |
| Ocular Diameter | 23mm |
| Eyepieces | 10X FN18, 20X |
| Objective Turret | quadruple forward |
| Focusing System | coaxial coarse and fine focus |
| Stage | 2-layer mechanical |
| Stage Dimensions | 140mm x 140mm |
| Stage X-Y Travel Range | 75mm x 50mm |
| Specimen Holders | Slide caliper |
| Transmitted Illumination | LED |
| Condenser | Abbe condenser with iris diaphragm, NA1.25 NA1.36 oil darkfield condenser |
| Sub-stage Condenser-holder | Rack-and-pinion |
| Power | 100-240VAC 50/60Hz wide-band |
| Dimensions | 7-7/8" x 10-1/4" x 15-3/8" (20cm x 26cm x 39cm) |
Objective Lenses
| Magnification | Corrections | NA | Immersion Medium | Cover-glass Thickness |
|---|---|---|---|---|
| 4X | achromatic | 0.10 | none | 0.17mm |
| 10X | achromatic | 0.25 | none | 0.17mm |
| 40X | achromatic | 0.65 | none | 0.17mm |
| 100X | achromatic | 1.25 | oil | 0.17mm |
| 100X | plan achromatic | 0.31 - 1.25 | oil | 0.17mm |
| Camera Specifications | |
| Sensor Type | CMOS |
| Sensor Optical Format | 1/2.5" |
| Active Pixels | 3M (2048 x 1536) |
| Shutter | electronic rolling shutter |
| Capture Resolution and Maximum Framerate | 4fps @ 2048x1536 10fps @ 1024x768 |
| Connectivity | USB 2.0 |
Software
| OS Requirements | Windows (32/64 bit) XP/Vista/7/8/10 | ||||||
|---|---|---|---|---|---|---|---|
| Hardware Requirements | Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port | ||||||
| Features |
|
Packing List:
- Digital binocular microscope head
- Microscope body
- 4 objectives: 4X, 10X, 40X, 100X
- A pair of WF10X eyepieces
- A pair of WF20X eyepieces
- A sample bottle of immersion oil
- Dust cover
- Color filters
- Mirror
- CD (camera driver and software)
- USB2.0 cable
- One oil darkfield condenser
- One 100X darkfield objective lens
