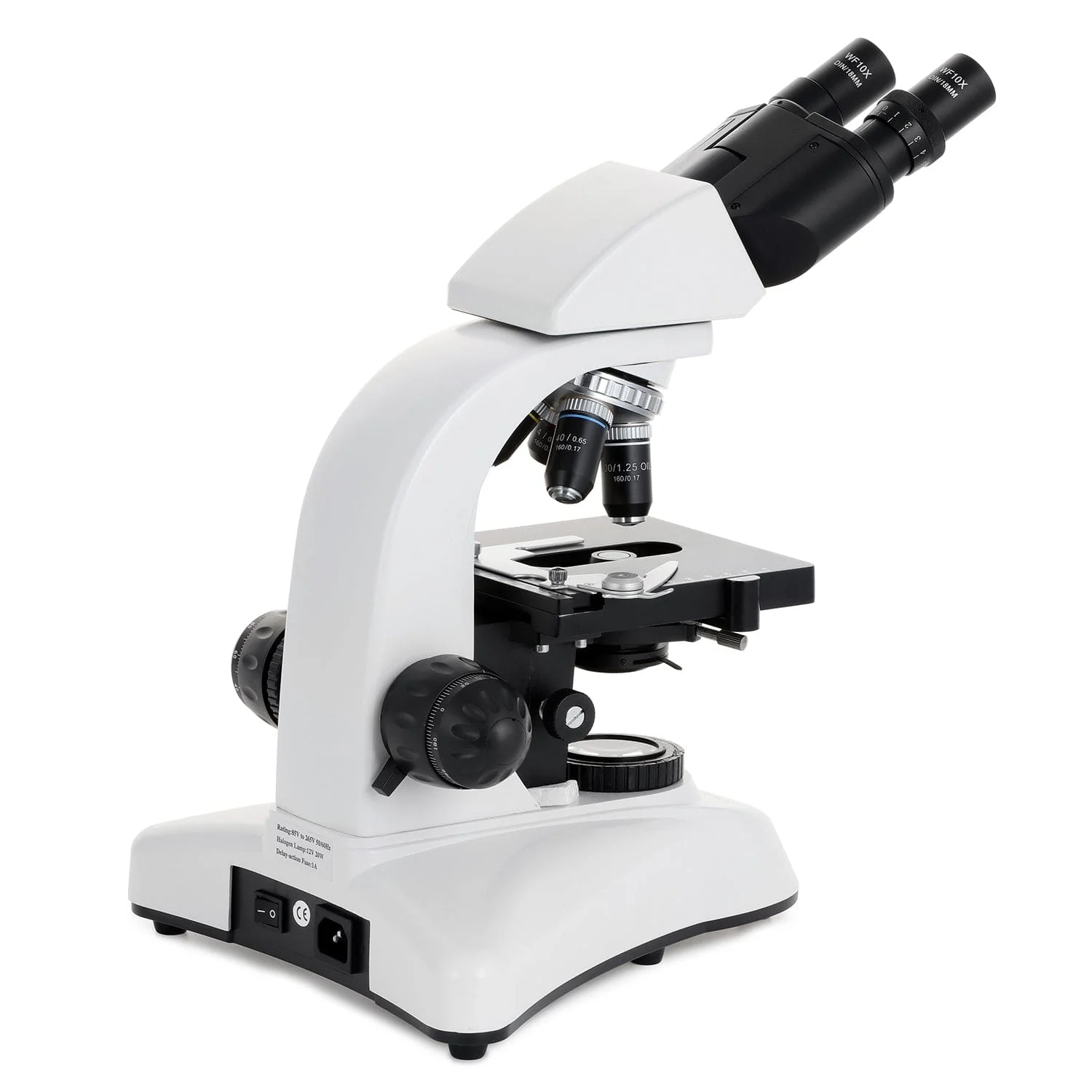

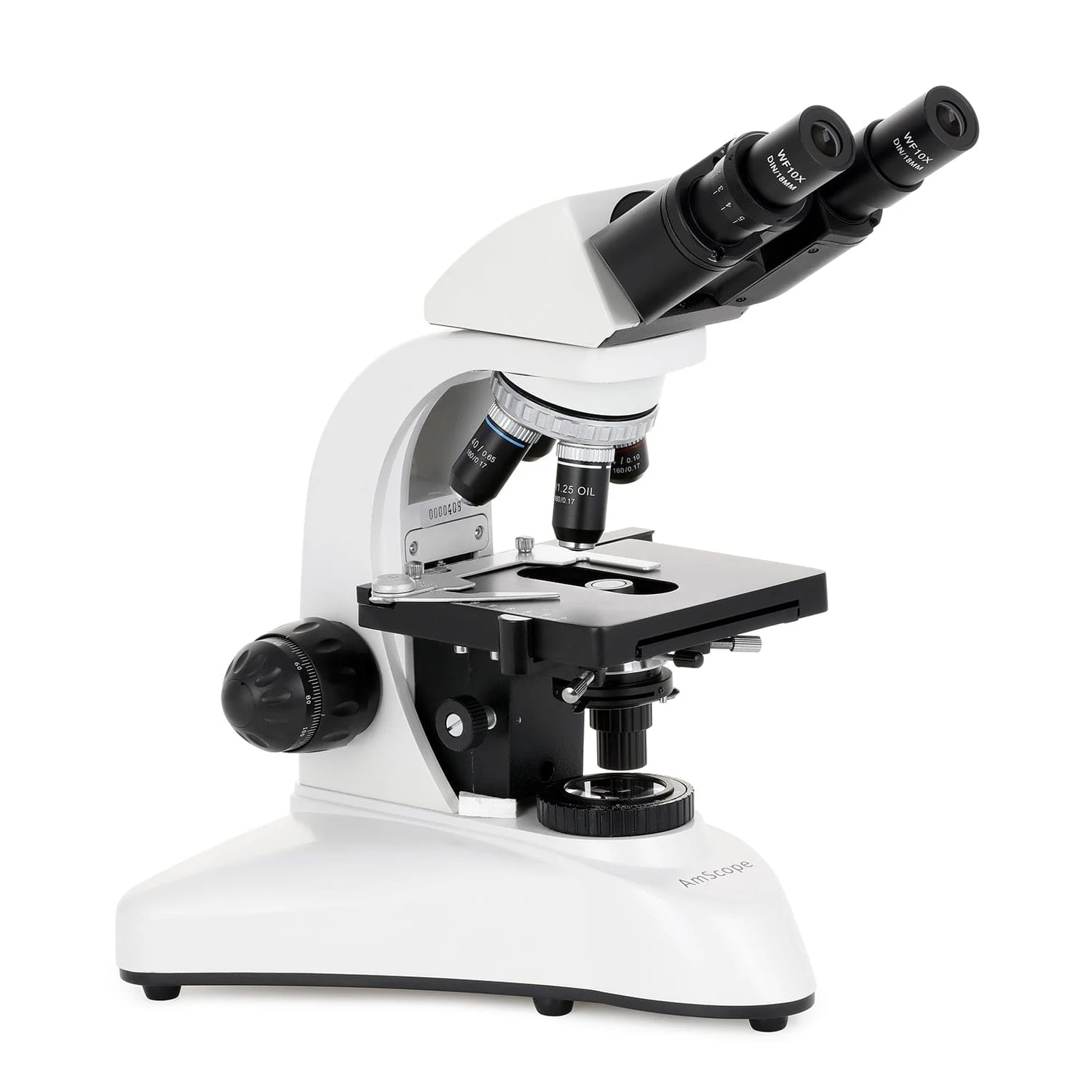

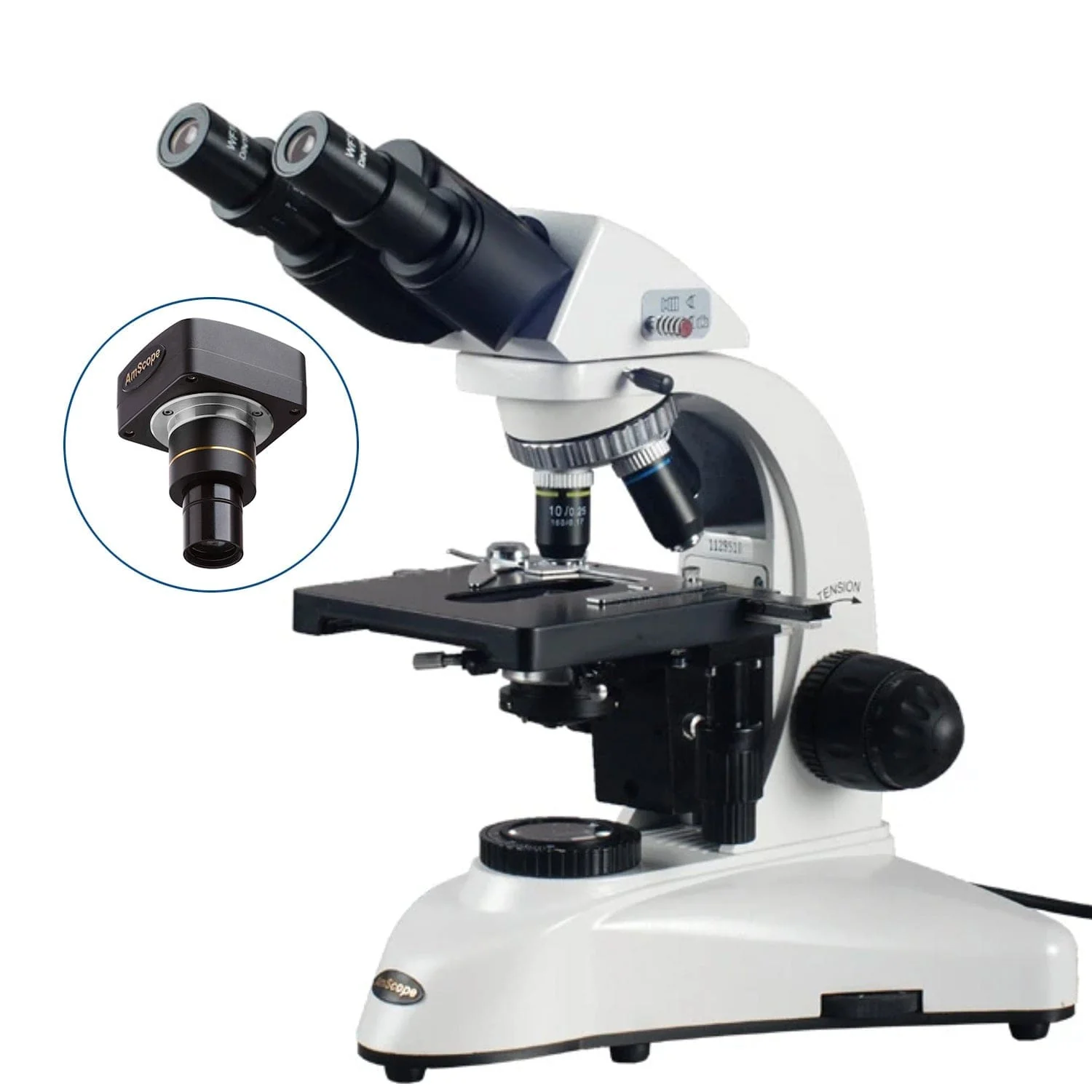

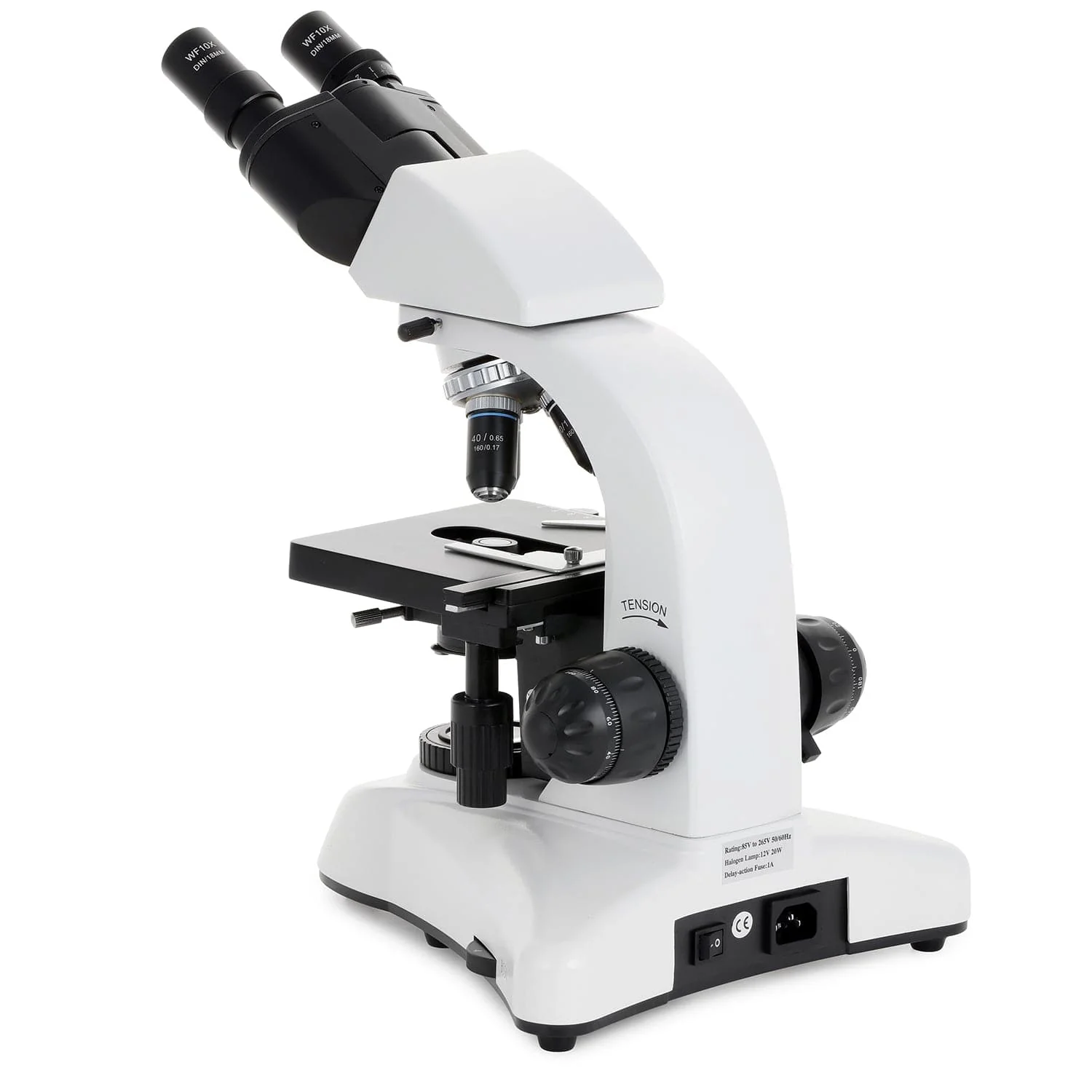

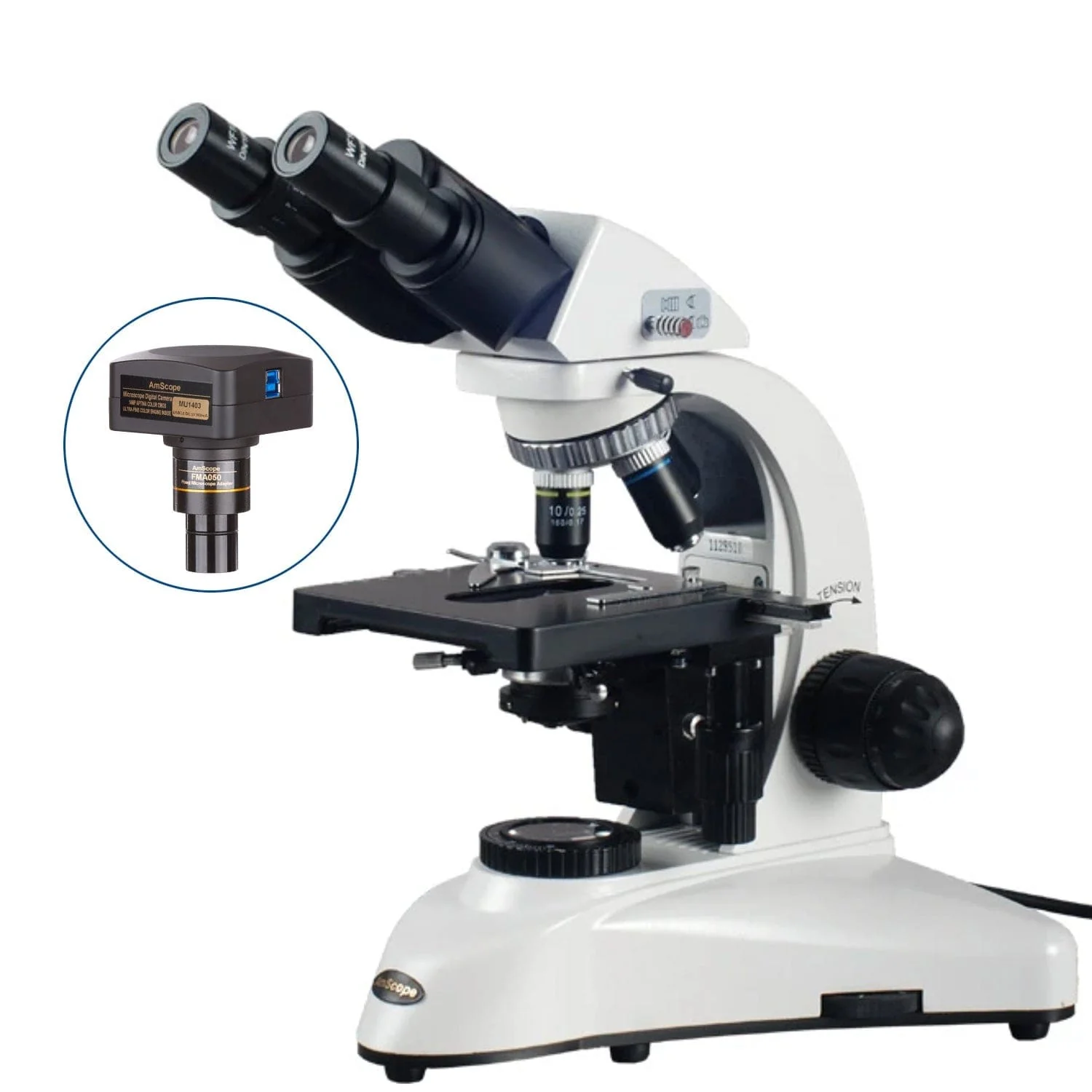

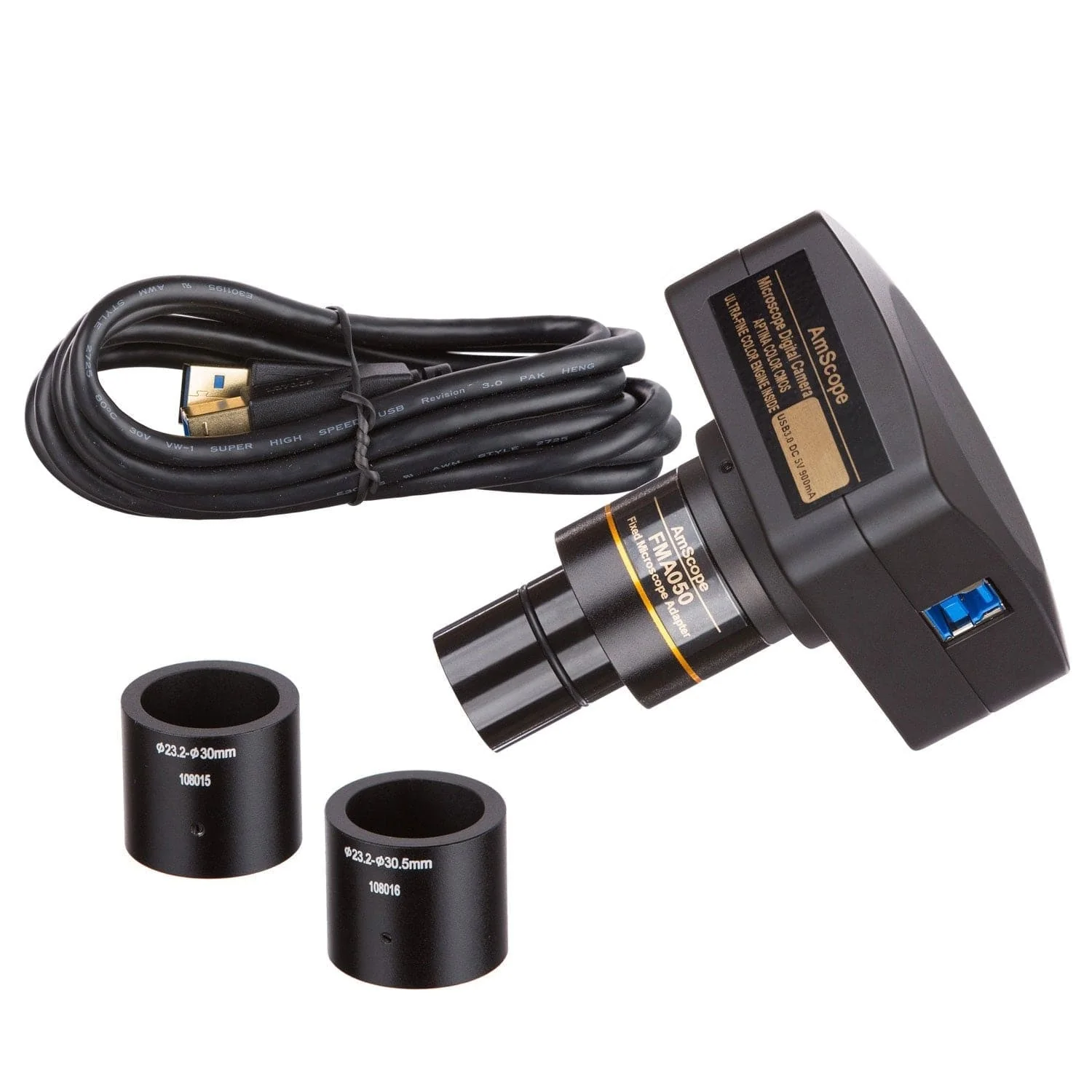

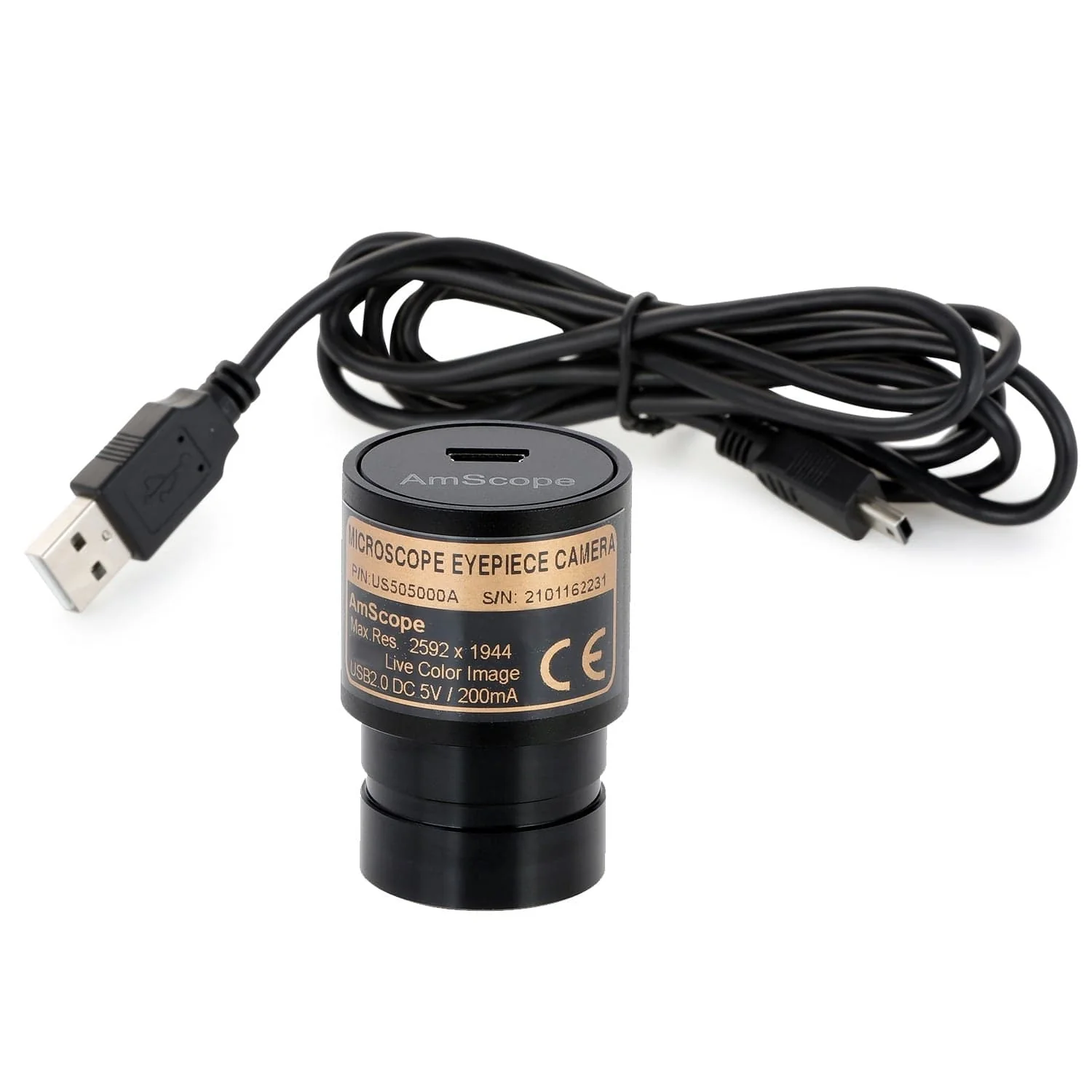

AmScope B530 Series Binocular Compound Microscope with 20W Halogen Kohler Illumination, 3D Mechanical Stage and Optional Digital Camera
The B530 biological microscope is designed to be used in professional and advanced educational environments. Its solid build, precision mechanics, and Koehler illumination system guarantee reliable, accurate functionality with sharp color-corrected images.

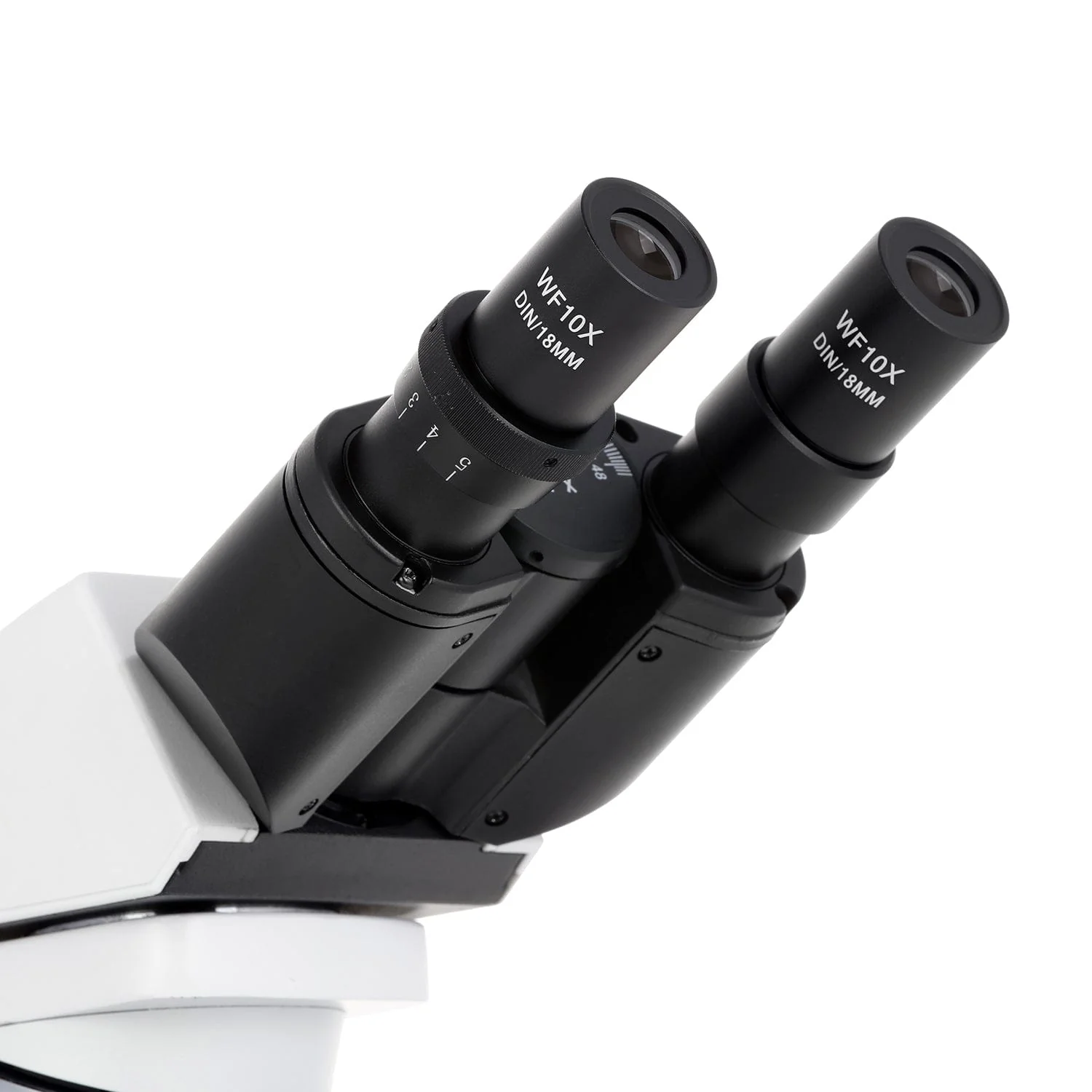

To customize the microscope to your viewing comfort, the eyepiece spacing can be easily adjusted using a precision Siedentopf mechanism. A diopter is available on the left ocular tube to compensate for asymmetry, and the ocular tubes are angled at 30° to comfortably accommodate a seated position without neck strain.

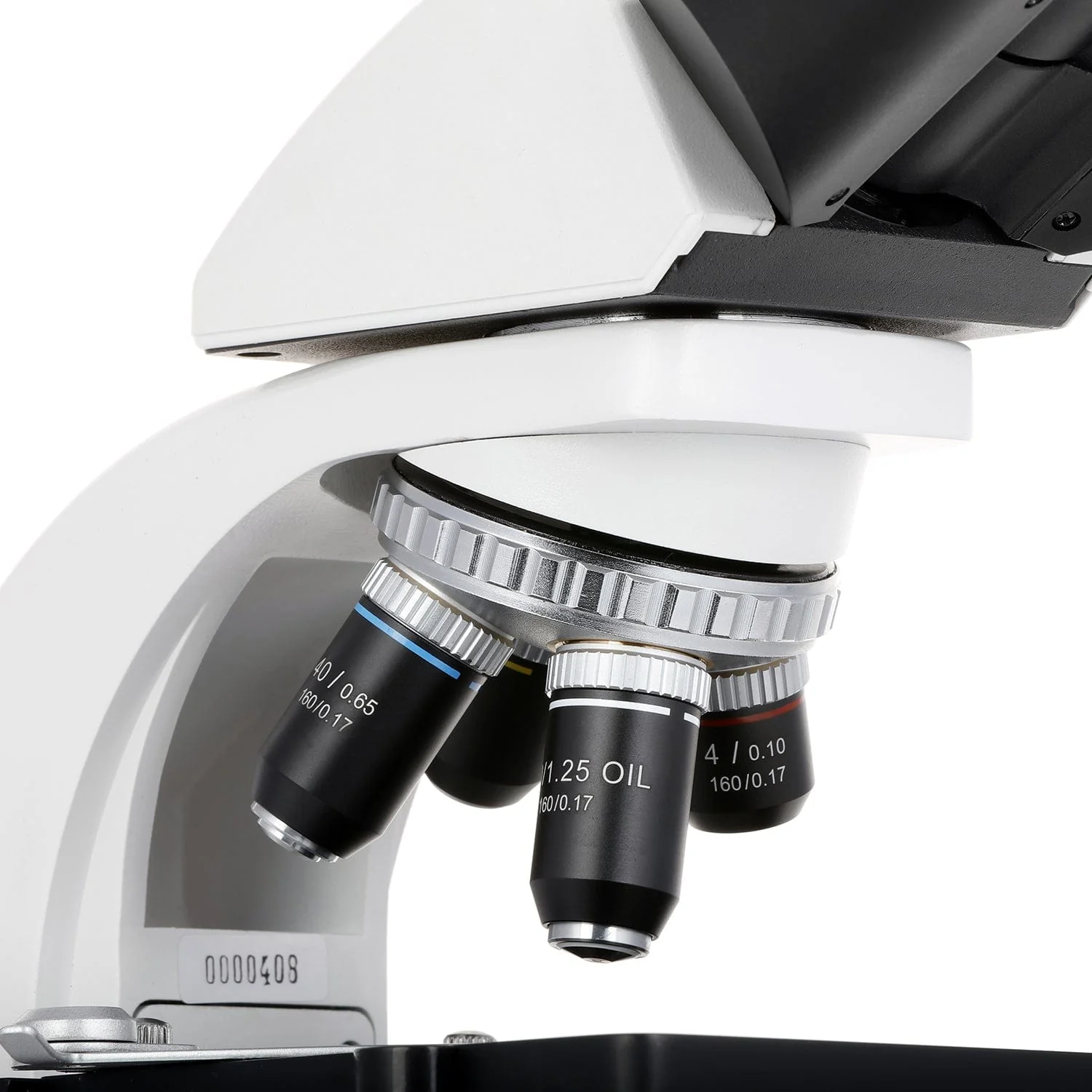

The objective turret provides instant access to 4 magnification levels to easily focus in on minute details from 40X to 1000X. This covers magnifications needed for studying hair follicles, cells, and bacteria. The turret's reversed orientation provides more working room above the stage. These high-quality lenses are achromatically corrected to improve resolution and color accuracy.

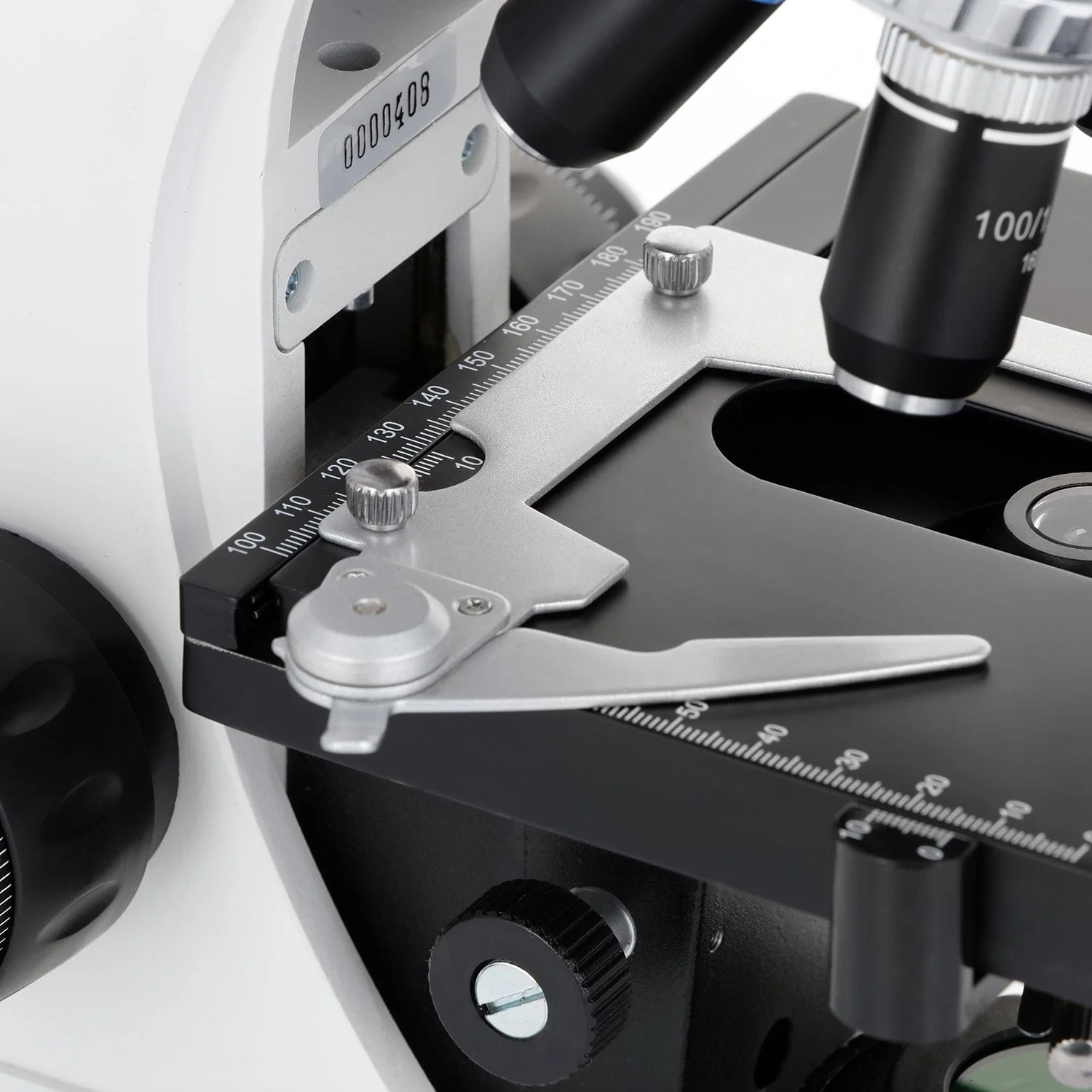

The large 2-layer mechanical stage provides smooth and precise movement for examination of specimen slides. The stage's low-position controls are conveniently placed near the coaxial focus knobs for a streamlined workflow. Examining specimen slides is intuitive and precise for users at any skill level.

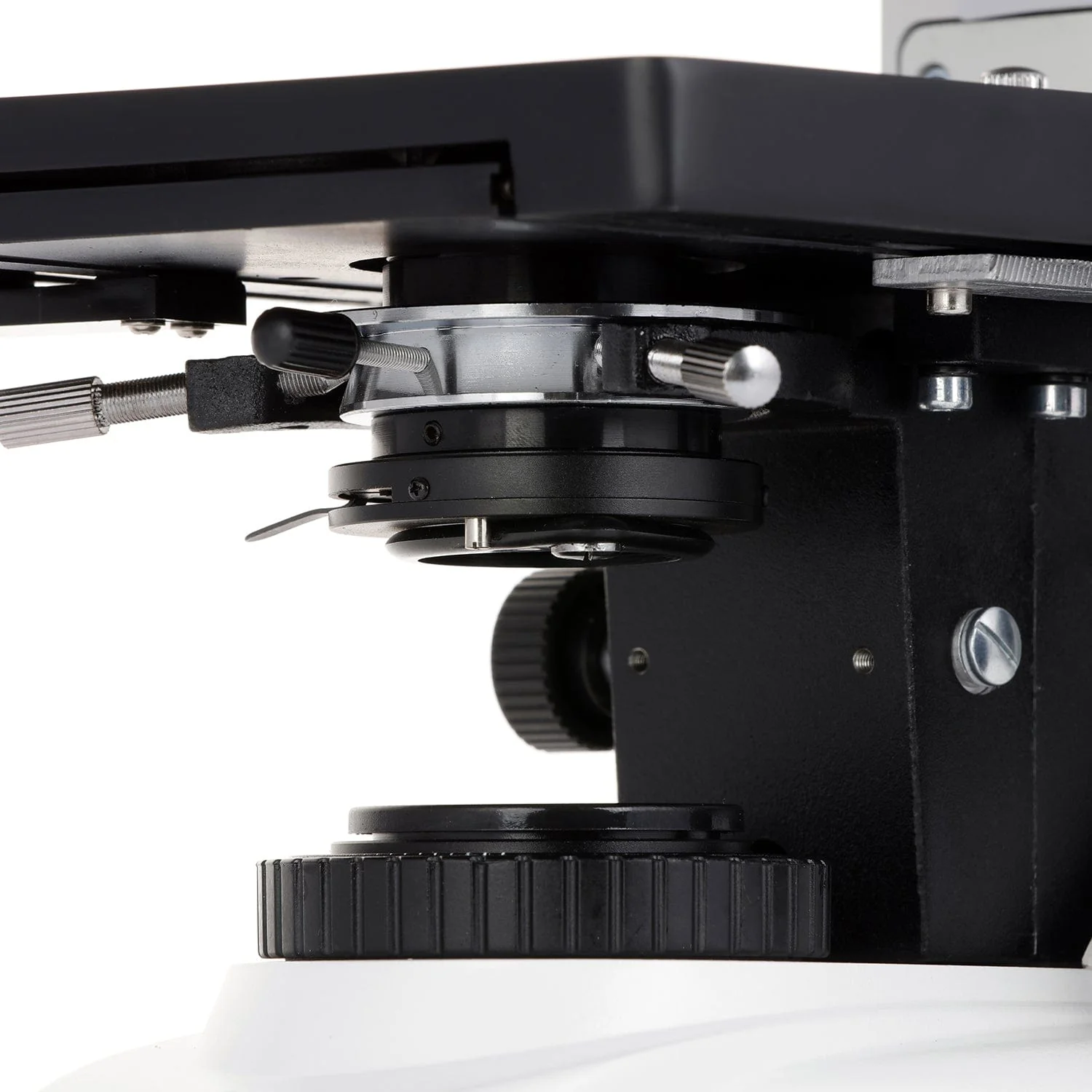

Built on Koehler illumination principals, the sub-stage lighting provides evenly-distributed light for optimal contrast. The halogen light-source provides bright illumination with a lower color-temperature for decreased fatigue when used for long periods. The Abbe light condenser has a high 1.25 numerical aperture for oil-immersion, and an iris diaphragm to optimize contrast and depth-of-field. The condenser holder uses rack-and-pinion height adjustment for precision control, and is centerable for proper alignment. The illuminator's field lens provides an iris diaphragm to control light-spread, optimizing contrast and definition in specimen features.
Specifications
| Optical System | Finite-conjugate |
| Mechanical Tube Length | 160mm |
| Head | Binocular, 30° incline, 360° rotatable |
| Interpupillary Adjustment | Siedentopf compensation-free gemel, 55-75mm |
| Ocular Diameter | 23mm |
| Ocular Diopters | left ocular |
| Eyepieces | 10X |
| Objective Lenses | DIN standard |
| Objective Parfocal Distance | 45mm |
| Objective Mounting Thread | RMS 20.32mm |
| Objective Turret | Reverse quadruple, ball-bearing movement |
| Focusing System | Coaxial coarse and fine focus, tension control |
| Division of Fine Focus | 0.002mm |
| Stage Design | Double-layer with caliper |
| Stage Dimensions | 140mm x 140mm |
| X-Y Translation Range | 75mm x 50mm |
| Transmitted Illumination | 6V/20W halogen |
| Condenser | NA1.25 Abbe condenser with iris diaphragm |
| Sub-stage Condenser-holder | rack and pinion |
| Power | 85-230VAC 50/60Hz wide-band |
Objective Lenses
| Magnification | Corrections | NA | Immersion Medium | Cover-glass Thickness |
|---|---|---|---|---|
| 4X | achromatic | 0.10 | — | 0.17mm |
| 10X | achromatic | 0.25 | — | 0.17mm |
| 40X | achromatic | 0.65 | — | 0.17mm |
| 100X | achromatic | 1.25 | oil | 0.17mm |
