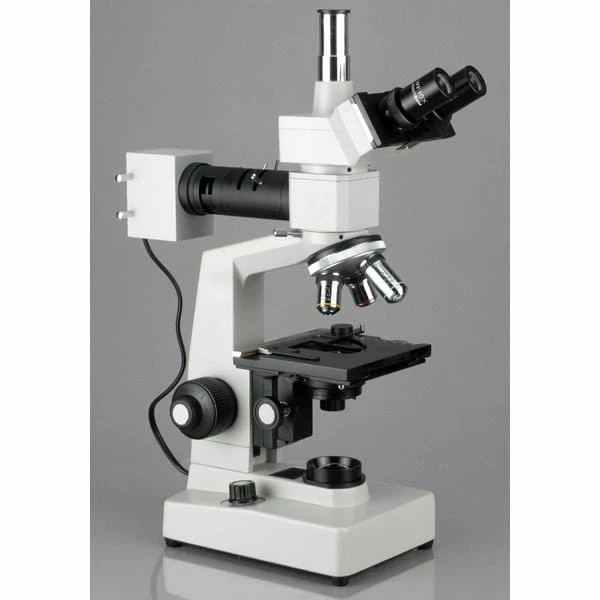

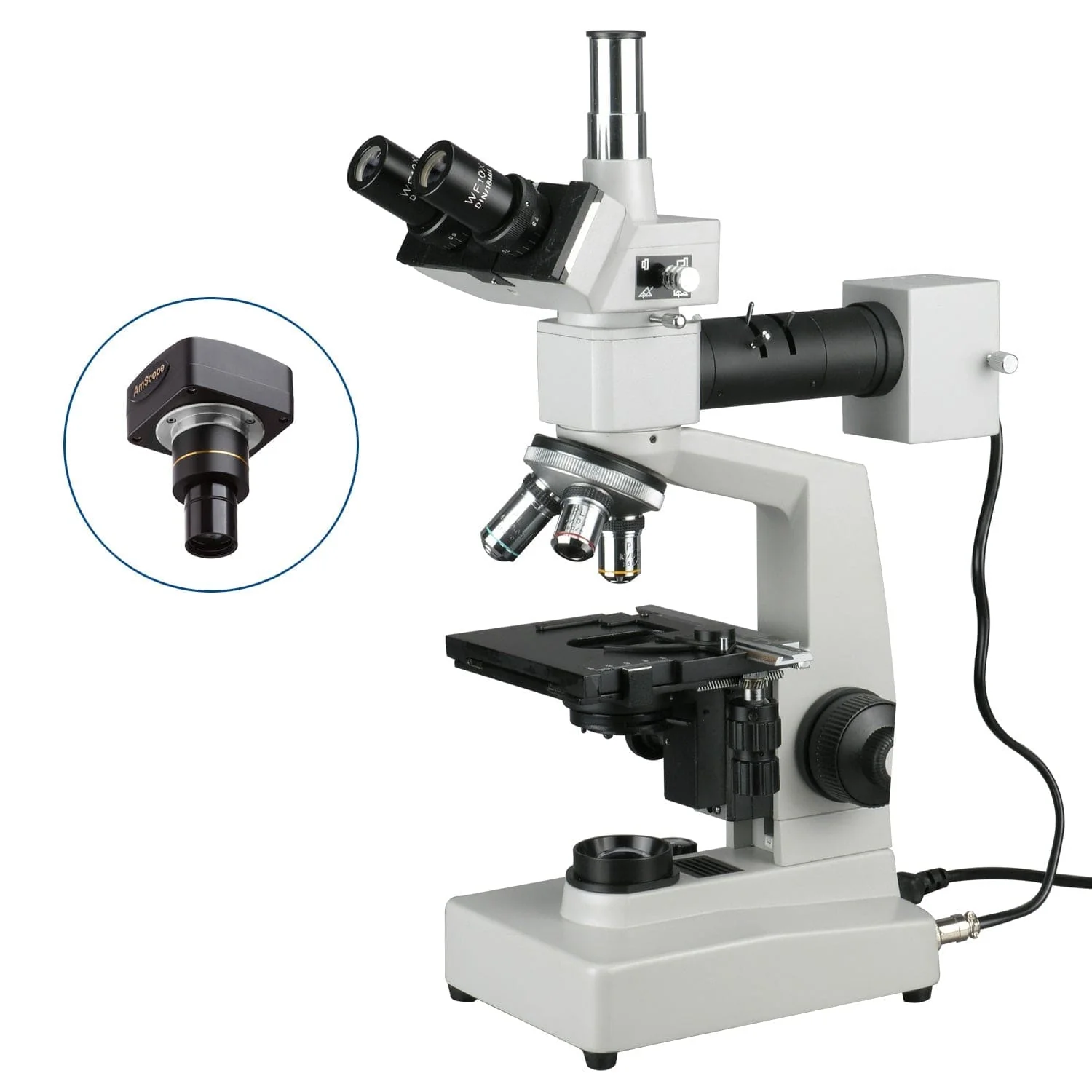

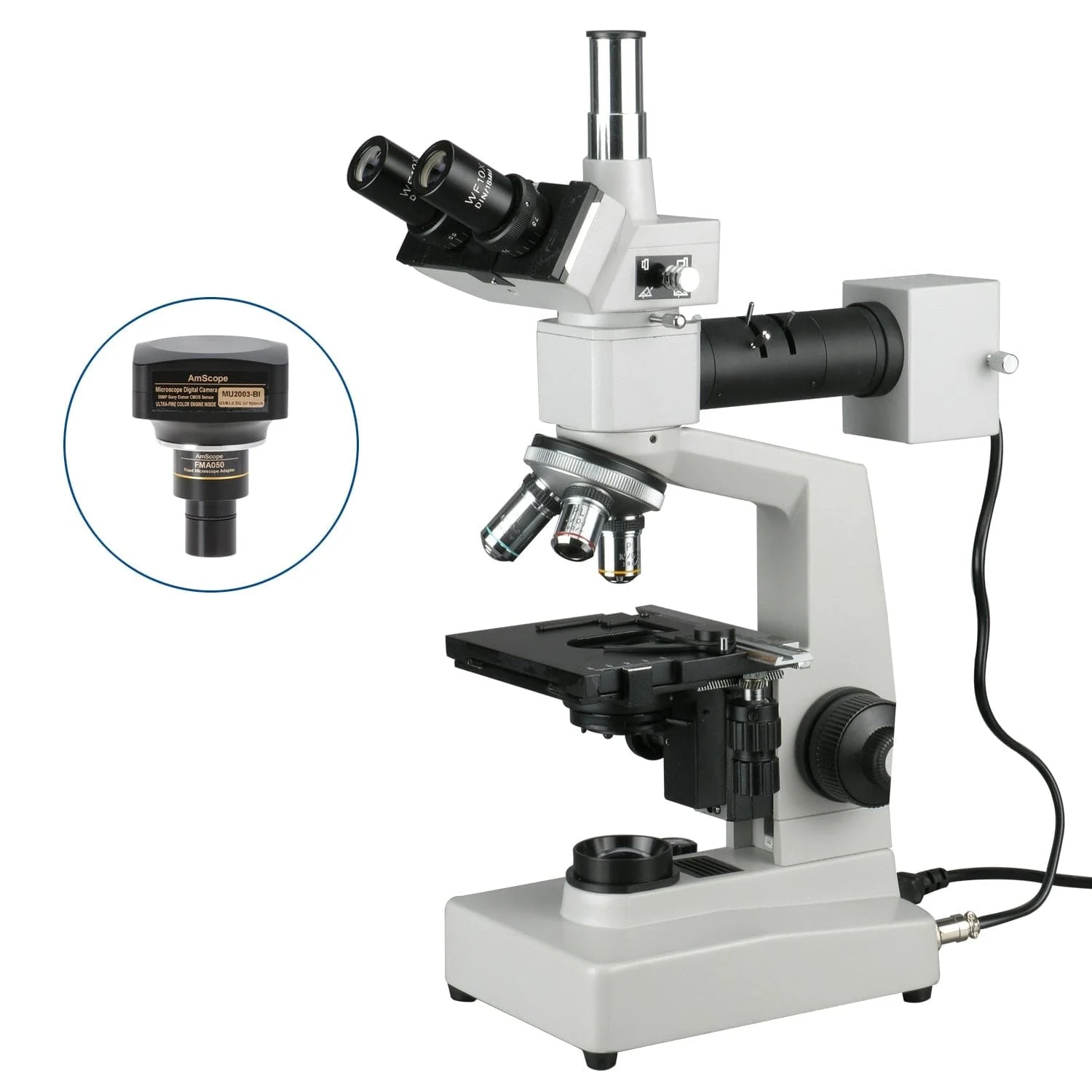

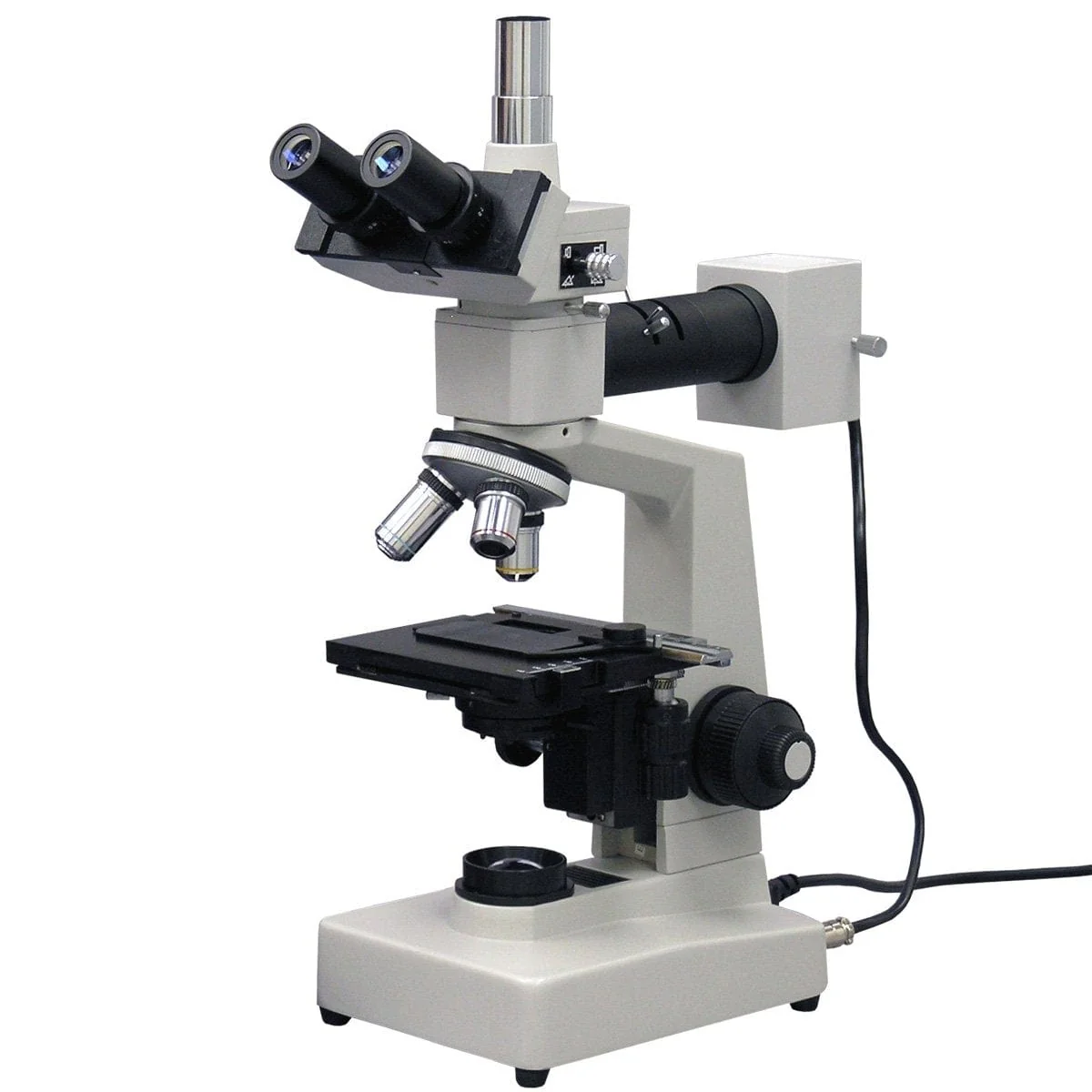

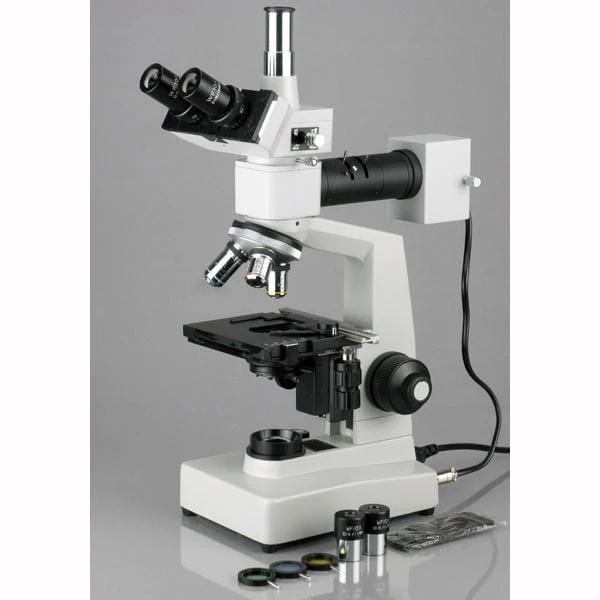

AmScope ME300 Series Metallurgical Trinocular Compound Microscope with Dual-illumination

Unlike most other metallurgical microscopes, this model comes with both reflected and transmitted illumination. It is an ideal instrument for metallurgical and materials analysis. It is also a great microscopy system for viewing transparent materials including those in biological applications. It comes with a 30 degree inclined 360 degree rotatable trinocular head, coarse and fine focusing, mechanical stage, and halogen reflected and transmitted illumination system. This is an excellent metallurgical microscopy system for a variety of industrial and research applications including metallurgical labs, silicon wafer inspection, industrial Inspection, quality control, and foundries.

Change magnifications quickly using the four-lens turret without significant refocusing thanks to the parfocal design. Using the included 10X eyepieces, the magnification range spans from 40X to 1000X with four unique settings. The lenses are achromatically corrected for improved resolution, and flat-field corrected to ensure edge-to-edge sharpness.

Features:

High quality trinocular professional upright metallurgical metallographic microscope with reflected and transmitted illumination system!

Perfect for detail examination and micro-analysis of surface structures of metallic materials!

Excellent for quality control in industrial and research applications including metallurgical labs, silicon wafer inspection, and foundries!

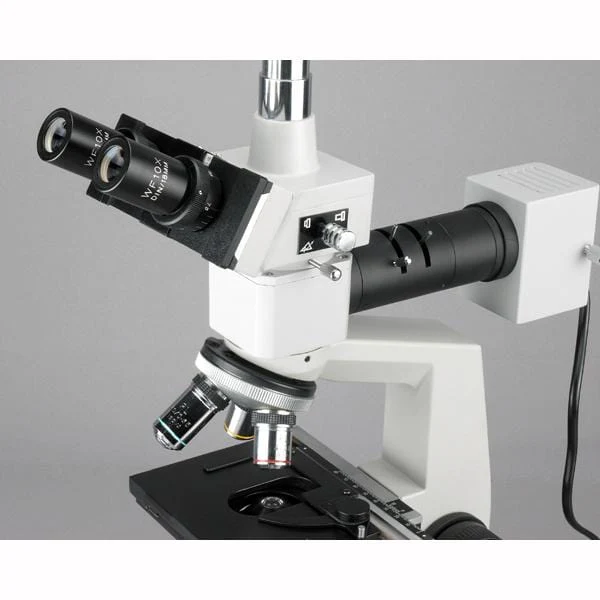

30 degree inclined 360 degree rotatable sliding trinocular head

Fully coated optical system with high resolution

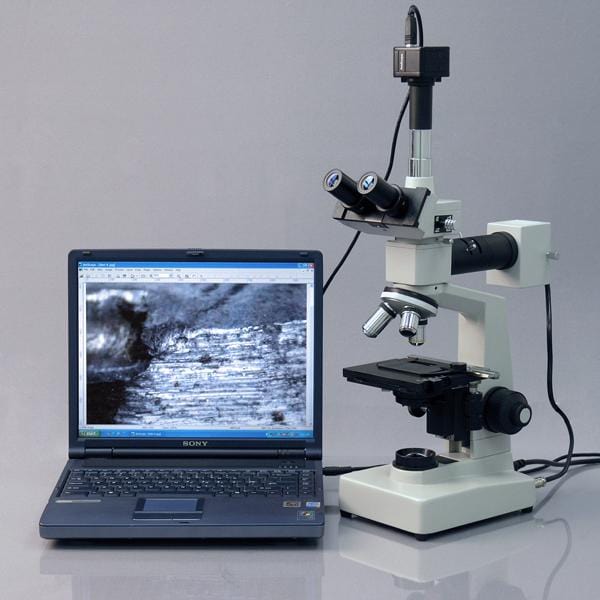

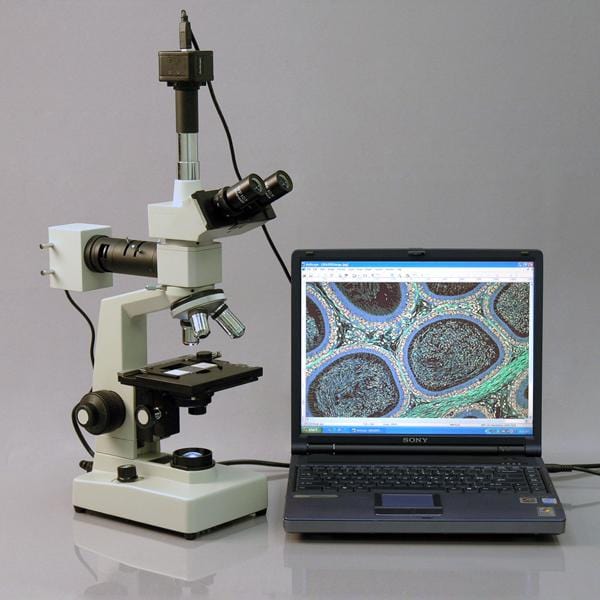

23mm universal/standard photo port

Adjustable interpupillary distance

Adjustable diopters on both eye tubes

Four superior quality PLAN DIN objectives, 4X, 10X, 40X (spring), and 100X (spring)

Advanced epi-illumination design offers excellent halogen illumination and optimal image clarity

Epi-Illumination has independent filter holders, aperature/field diaphragms and diaphragm alignment controls

Brightfield transmitted lighting system has 1.25 (N.A.) Abbe substage condenser, iris diaphragm and swing-out filter holder

Yellow, blue, green, and frosted filters included

Coaxial coarse and fine focusing system

Dual side focusing controls

Focusing tension control mechanism

Locking mechanism for controlling coarse focusing range and protecting objectives and specimens

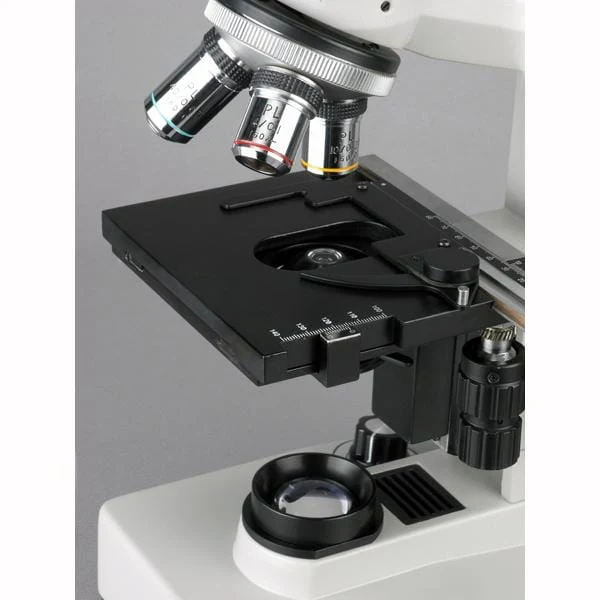

Large graduated mechanical stage with stain resistant finish

Low position coaxial X-Y stage traveling controls

Solid metal frame construction with stain resistant enamel finish

Full optical glass elements

Precise ground glass lenses

All metal mechanical parts

Packing List:

One microscope body

One trinocular microscope head

One episcopic illuminator assembly

Four Plan Objectives: 4X, 10X, 40X 100X

One pair 10X eyepieces

Four Filters: Yellow, Blue, Green and Frosted
