AmScope ME300T-M Digital Enabled Trinocular Biological Microscope C-Mount with 400X Magnification and 20W Incandescent Light Source includes a USB 2.0 1.3MP Camera

This metallurgical microscope with 1.3MP digital camera offers three magnification settings (40X, 100X and 640X) with EPI halogen illumination. It comes with a 30 degree inclined 360 degree rotatable trinocular head, coarse & fine focusing and two-layer mechanical stage. The digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features. This microscope is an ideal instrument for metallurgical, mineral and crystal identification, silicon wafer inspection in foundries and quality control in industries.

Features:

• High quality trinocular professional upright metallurgical metallographic microscope with reflected (EPI) illumination system!
• Perfect for detail examination and micro-analysis of surface structures of metallic materials!
• Excellent for quality control in industrial and research applications including silicon wafer inspection and foundries!
• Three magnification settings: 40X, 100X and 400X

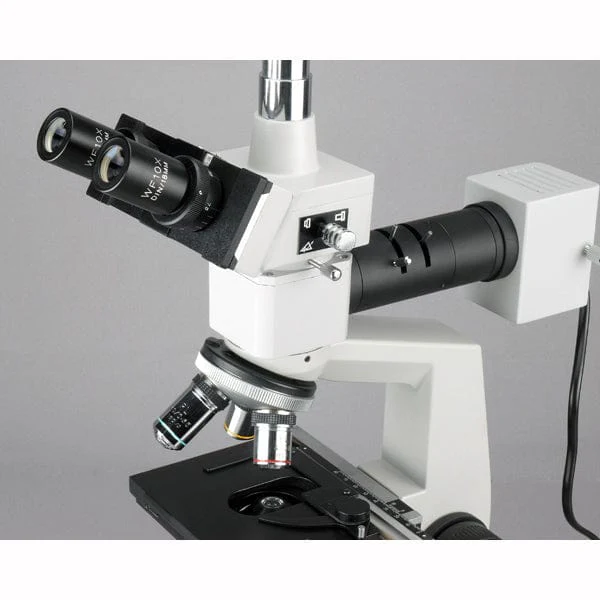

• 30 degree inclined 360 degree rotatable sliding trinocular head
• Fully coated optical system with high resolution
• 23mm universal/standard photo port
• Adjustable interpupillary distance
• Adjustable diopters on both eye tubes
• Three superior quality PLAN DIN objectives, 4X, 10X, 40X (spring)
• One pair of widefield eyepieces, 10X
• Advanced EPI-illumination design offers excellent halogen illumination and optimal image clarity
• Epi-Illumination has independent filter holders, aperature/field diaphragms and diaphragm alignment controls
• Yellow, blue, green, and frosted filters included
• Coaxial coarse and fine focusing system
• Dual side focusing controls
• Focusing tension control mechanism
• Locking mechanism for controlling coarse focusing range and protecting objectives and specimens
• Large graduated mechanical stage with stain resistant finish
• Low position coaxial X-Y stage traveling controls
• Solid metal frame construction with stain resistant enamel finish
• Full optical glass elements
• Precise ground glass lenses
• All metal mechanical parts
• Manufactured Under ISO 9001 Quality Control Standard
• Excellent Five (5) Year Factory Warranty



Specifications:

• Nosepiece: Quadruple
• Focusing Range: 1-9/16" (40mm)
• Interpupillary Adjustment Range: 2-3/16" - 3-0" (55 - 75mm)
• Mechanical Tube Length: 6-5/16" (160mm)
• Head: 30 degree inclined trinocular
• Trinocular Port: 23mm universal/standard photo tube
• Eyepieces: WF10X (18mm field of view)
• Objectives: PL 4X (0.1 NA), 10X (0.25 NA), 40X (spring, 0.65 NA), 100X (spring, 1.25NA)
• Stage Dimensions: 5-1/8"x 4-13/16" (130x122mm)
• Stage Traveling Range: 1-3/16"x2-3/4" (30x70mm)
• Vernier Division: 0.004" (0.1mm)
• Illumination: 20W halogen
• Power Supply: 110V
• Shipping Weight: 25 lbs



Camera Specifications:

• Sensor: Aptina MT9M111
• Sensor Type: CMOS
• Sensor Size: 4.6x3.7mm
• Pixel Size: 3.6
• Resolution: 1.3MP
• Frame Rate: 15@1280x1024, 26@640x512, 50@320x256
• Sensitivity: 1.0V/lux-sec
• Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux



Software Specifications:

• OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
• Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port



Packing List:

• One Trinocular Metallurgical Microscope Body with EPI Illumination System
• One Pair of Widefield 10X Eyepieces
• Three Plan Objectives: 4X, 10X, 40X
• Four Filters: Yellow, Blue, Green and Frosted (built-in already)
• One 1.3MP USB2.0 Microscope Digital Camera with Reduction Lens
• Two Camera Adapters
• One USB Cable
• User's Manual Download
