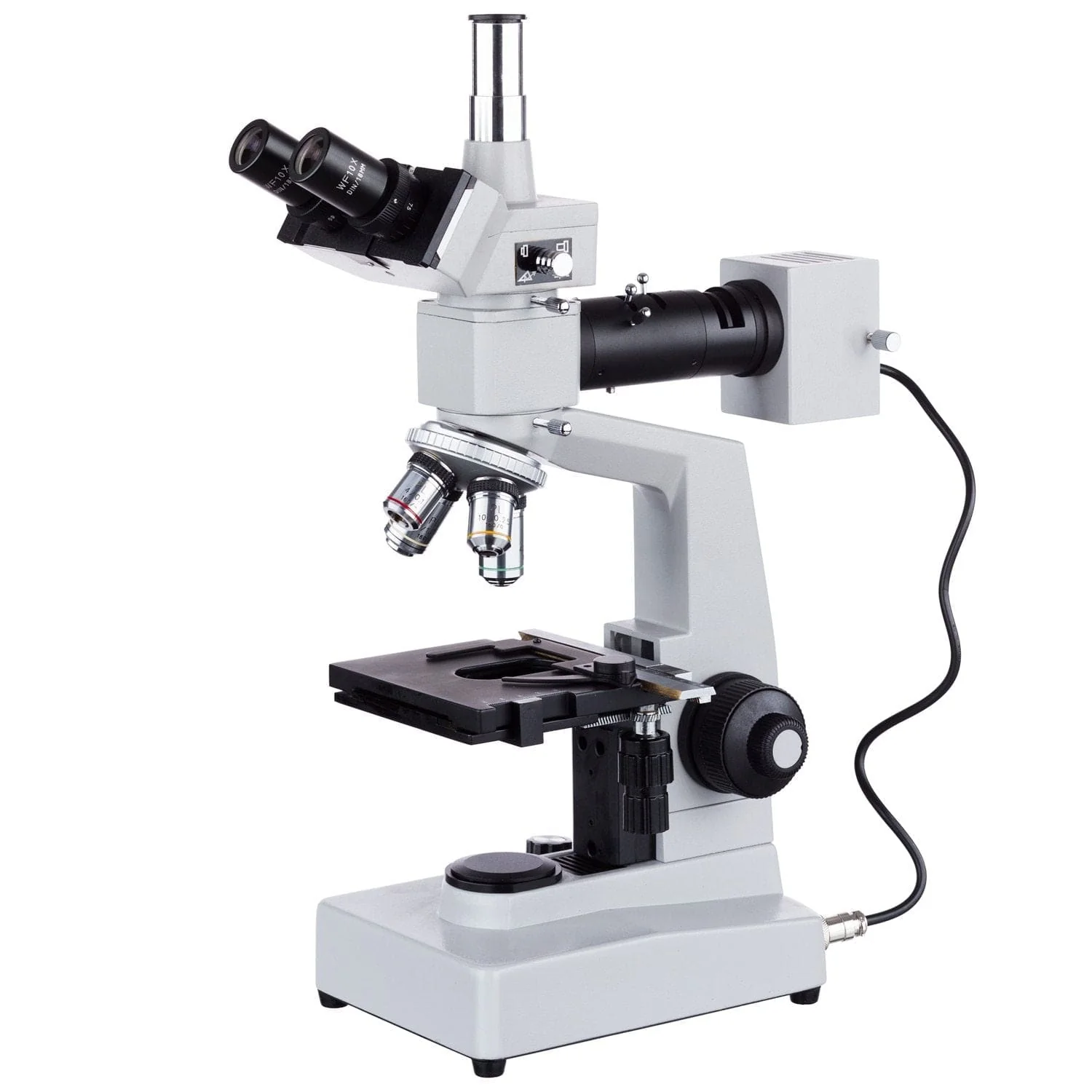

AmScope ME300 Series Metallurgical Trinocular Compound Microscope

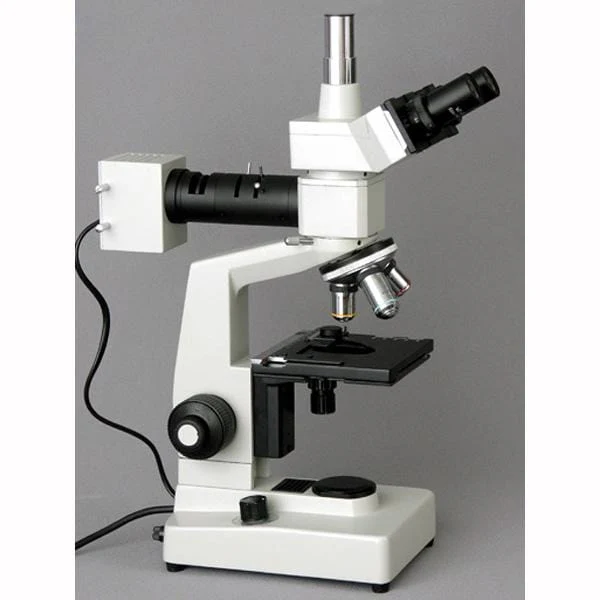

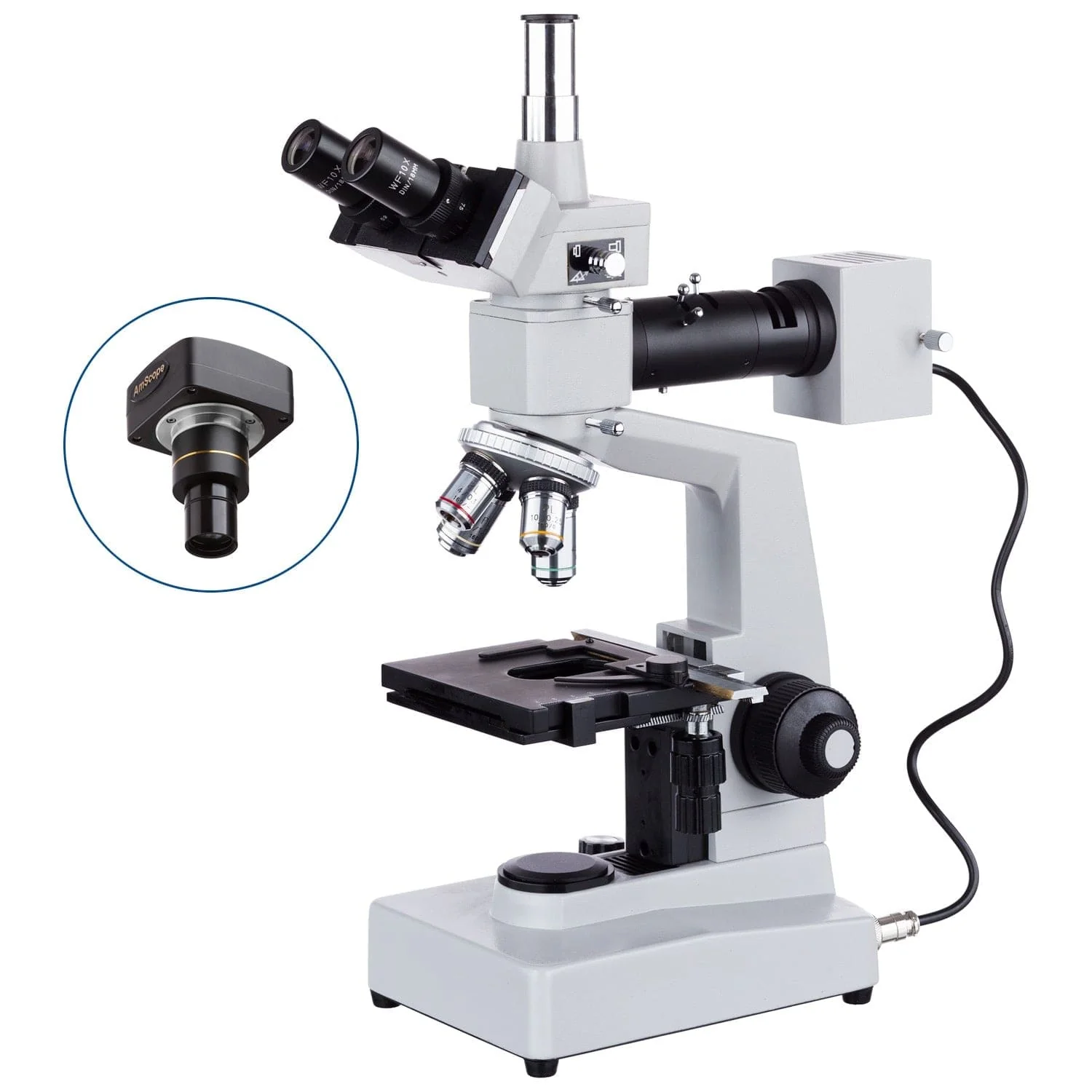

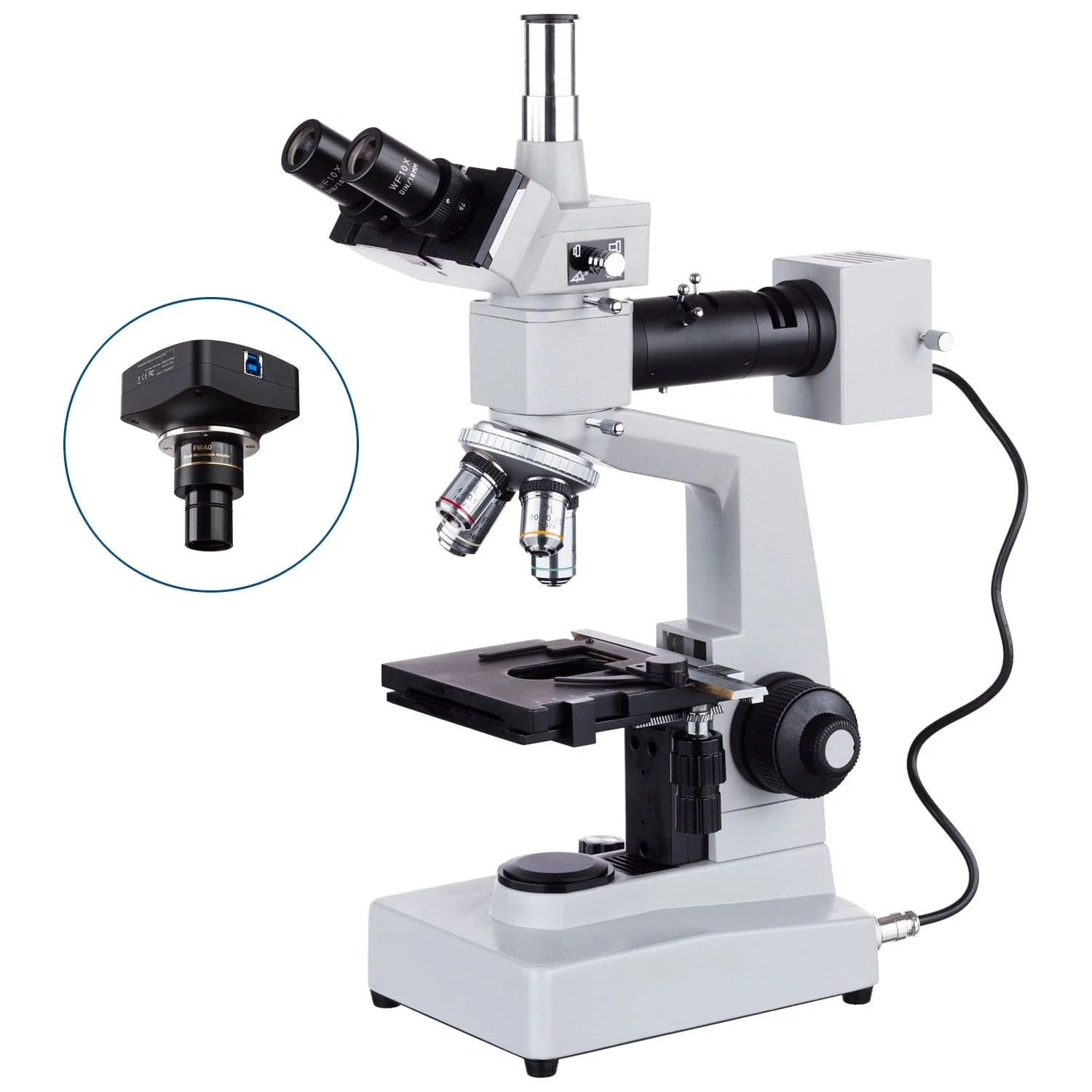

The ME300TZ is an economical metallurgical microscope designed for everyday metallurgical and materials analysis. It has a 30° inclined° rotatable trinocular head, coarse and fine focusing, mechanical stage, and halogen reflected illumination. This is an excellent metallurgical microscopy system for a variety of industrial and research applications including metallurgical labs, industrial Inspection, quality control, and foundries.

Change magnifications quickly using the four-lens turret without significant refocusing thanks to the parfocal design. Using the included 10X eyepieces, the magnification range spans from 40X to 1000X with four unique settings. The lenses are achromatically corrected for improved resolution, and flat-field corrected to ensure edge-to-edge sharpness.

Features:

  • High quality trinocular professional upright metallurgical metallographic microscope with reflected illumination system
  • Perfect for detail examination and micro-analysis of surface structures of metallic materials
  • Excellent for quality control in industrial and research applications including metallurgical labs and foundries!

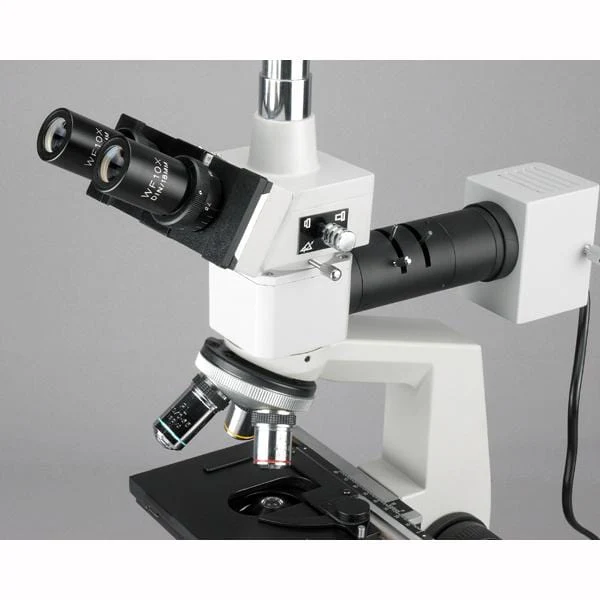

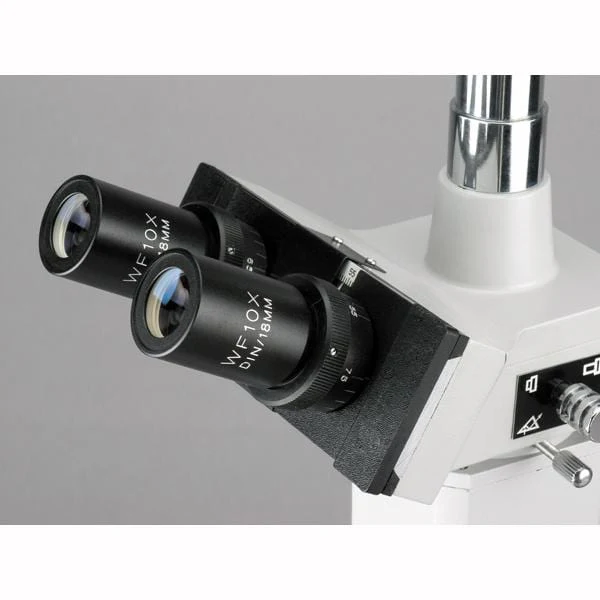

  • 30 degree inclined 360 degree rotatable sliding trinocular head
  • Fully coated optical system with high resolution

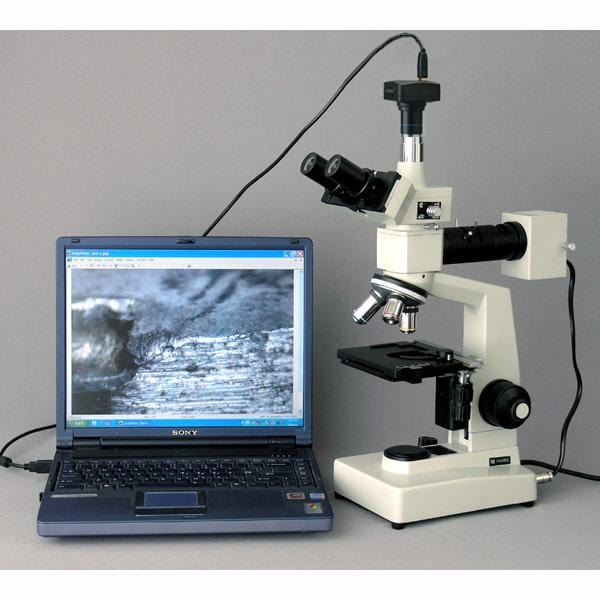

  • 23mm universal/standard photo port
  • Adjustable interpupillary distance
  • Adjustable diopters on both eye tubes
  • Four superior quality PLAN DIN objectives, 4X, 10X, 40X (spring), and 100X (spring)
  • Advanced epi-illumination design offers excellent halogen illumination and optimal image clarity
  • Epi-Illumination has independent filter holders, aperature/field diaphragms and diaphragm alignment controls
  • Yellow, blue, green, and frosted filters included
  • Coaxial coarse and fine focusing system
  • Dual side focusing controls
  • Focusing tension control mechanism
  • Locking mechanism for controlling coarse focusing range and protecting objectives and specimens
  • Large graduated mechanical stage with stain resistant finish
  • Low position coaxial X-Y stage traveling controls
  • Solid metal frame construction with stain resistant enamel finish
  • Full optical glass elements
  • All metal mechanical parts

    • Specifications:

  • Nosepiece: quadruple
  • Focusing Range: 1-9/16" (40mm)
  • Interpupillary Adjustment Range: 2-3/16" - 3-0" (55 - 75mm)
  • Mechanical Tube Length: 6-5/16" (160mm)
  • Head: 30 degree inclined trinocular
  • Trinocular Port: 23mm universal/standard photo tube
  • Eyepieces: 10X
  • Objectives: PL 4X (0.1 NA), 10X (0.25 NA), 40X (spring, 0.65 NA), 100X (spring, 1.25NA)
  • Stage Dimensions: 5-1/8"x 4-13/16" (130x122mm)
  • Stage Traveling Range: 1-3/16"x2-3/4" (30x70mm)
  • Vernier Division: 0.004" (0.1mm)
  • Illumination: halogen
  • Power Supply: 110VAC 60Hz

    • Packing List:

  • One microscope body
  • One trinocular microscope head
  • One episcopic illuminator assembly
  • Four Plan Objectives: 4X, 10X, 40X 100X
  • One pair 10X eyepieces

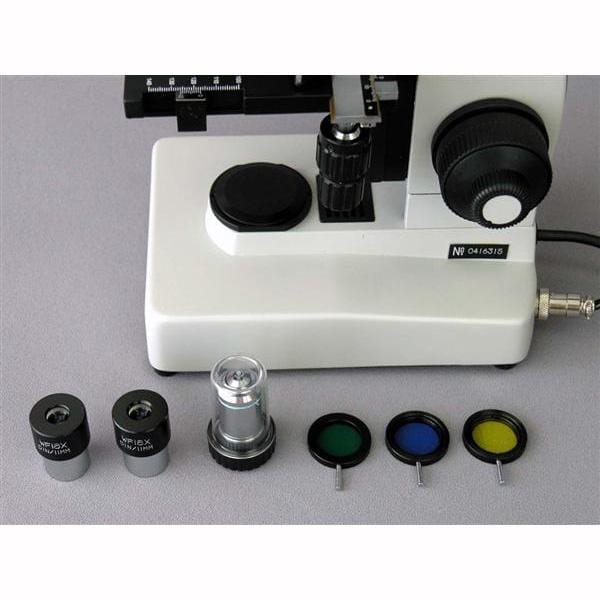

  • Four Filters: Yellow, Blue, Green and Frosted
    • Select Magnification

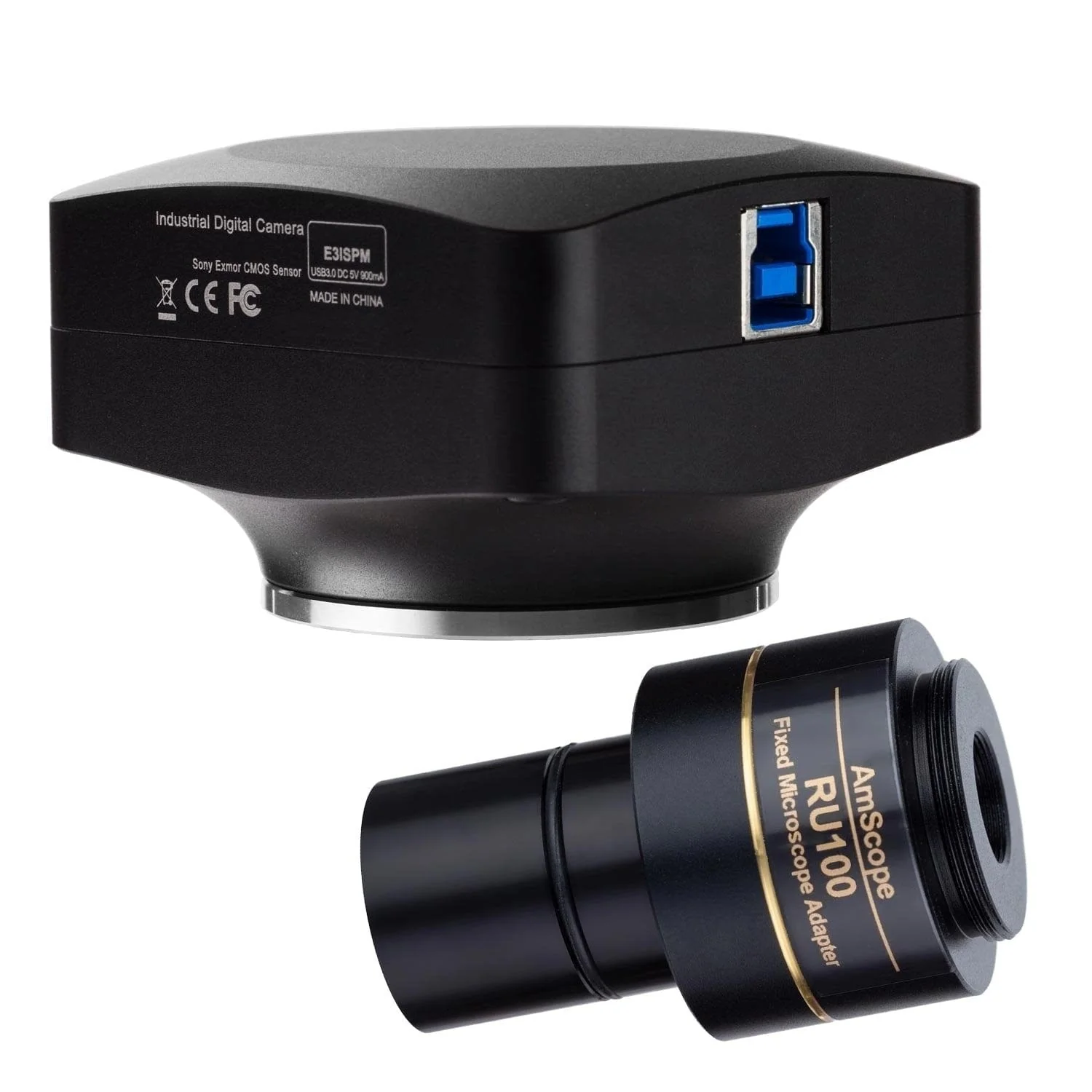

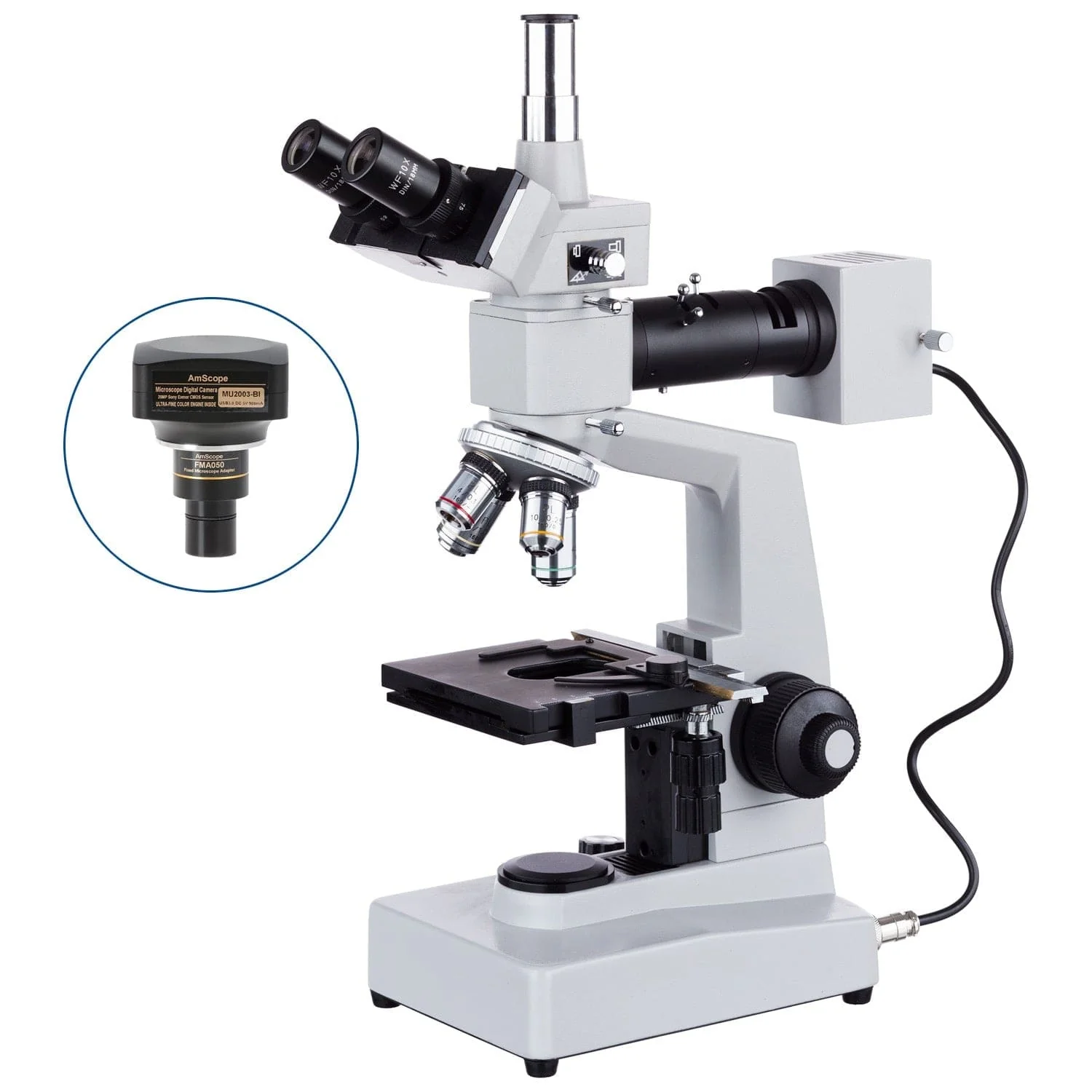

    Select Camera Type
    Select Camera Pixels
    From $381.50

    Original: $1,089.99

    -65%
    AmScope ME300 Series Metallurgical Trinocular Compound Microscope—

    $1,089.99

    $381.50
