Euromex BioBlue Lab Binocular Compound Microscope 40X-1000X Magnification withPlan IOS Objectives

The BlueLine flagship BioBlue.Lab is an instrument that precisely matches the highest expectations of microscopy users. These ergonomic easy-to-use microscopes have specifically been designed for educational and laboratory applications. The 150 x 140 mm stage with integrated rackless X-Y mechanical stage with 75 x 30 mm travel, provides a smooth translation of the specimen and highly precise positioning which is highly appreciated in most demanding cytology and histopathology applications.

This BioBlue.Lab microscope model offers great functionality and are equipped with WF10x/20 mm eyepieces and IOS plan 4x/ 10x/ S40x/ S100x objectives. All models are equipped with NeoLED illumination system and are available in binocular and trinocular versions.

Features:

Higher-end upright microscope

Binocular model (trinocular models available)

Revolving reversed, quadruple nosepiece

Finite and infinity optical system

Integrated X-Y mechanical stage

NeoLED illumination

Cordless operation

Ergonomic carrying grip

Specifications:

EYEPIECE(S)

Wide field WF 10x/18mm eyepiece(s).

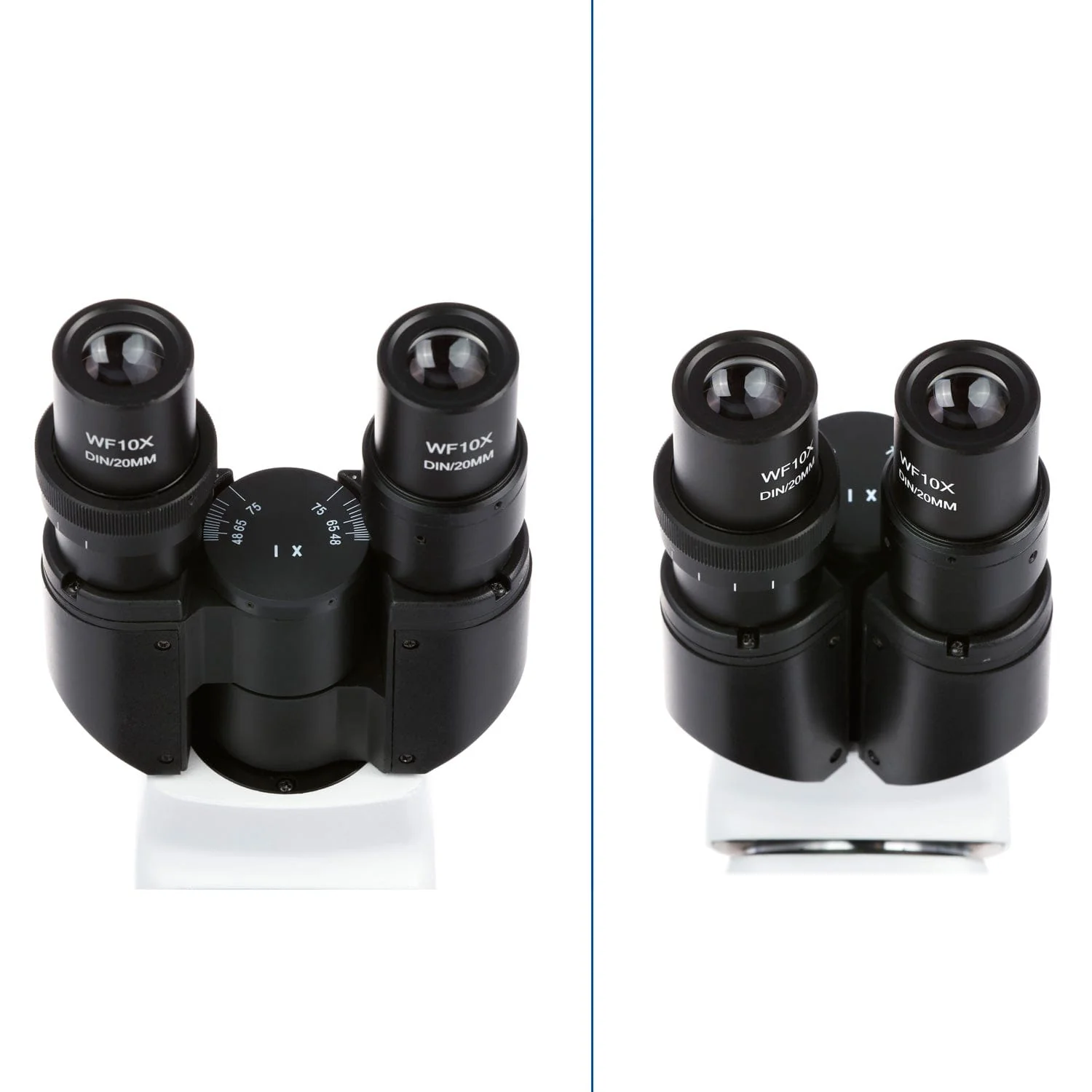

HEAD

Binocular head, 30º inclined with ø30mm tubes. The interpupillary distance is adjustable between 48 to 75mm. Diopter adjustment +/- 5 on left tube.

All heads are 360º rotatable and secured.

NOSEPIECE

Reversed quadruple nosepiece on ball bearings with a slot for the analyzer.

OBJECTIVES

Plan IOS (infinite) objectives

4x/0.10

10x/0.25

S40x/0.65. Objectives with “S” means spring loaded

S100x/1.25. Objectives with “S” means spring loaded

Total magnification 1000X

FOCUSING

Coaxial coarse and fine adjustments with 200 graduations. Precision 1.5 microns per graduation, 0.3mm per rotation. The total travel range is approximately 28mm. Supplied with an adjustable rack stop to prevent damage to samples and objectives. The coarse adjustments are equipped with friction control.

STAGE

Rackless 150x140mm stage with mechanical 75x30mm XY translation stage.

CONDENSER

Height adjustable ABBE condenser N.A. 1.25 with iris diaphragm and filter holder. Supplied with a white filter.

NEOLED TRANSMITTED ILLUMINATION

The 3W adjustable NeoLED (Euromex exclusive) transmitted illumination is powered by an internal 100-240V power supply.

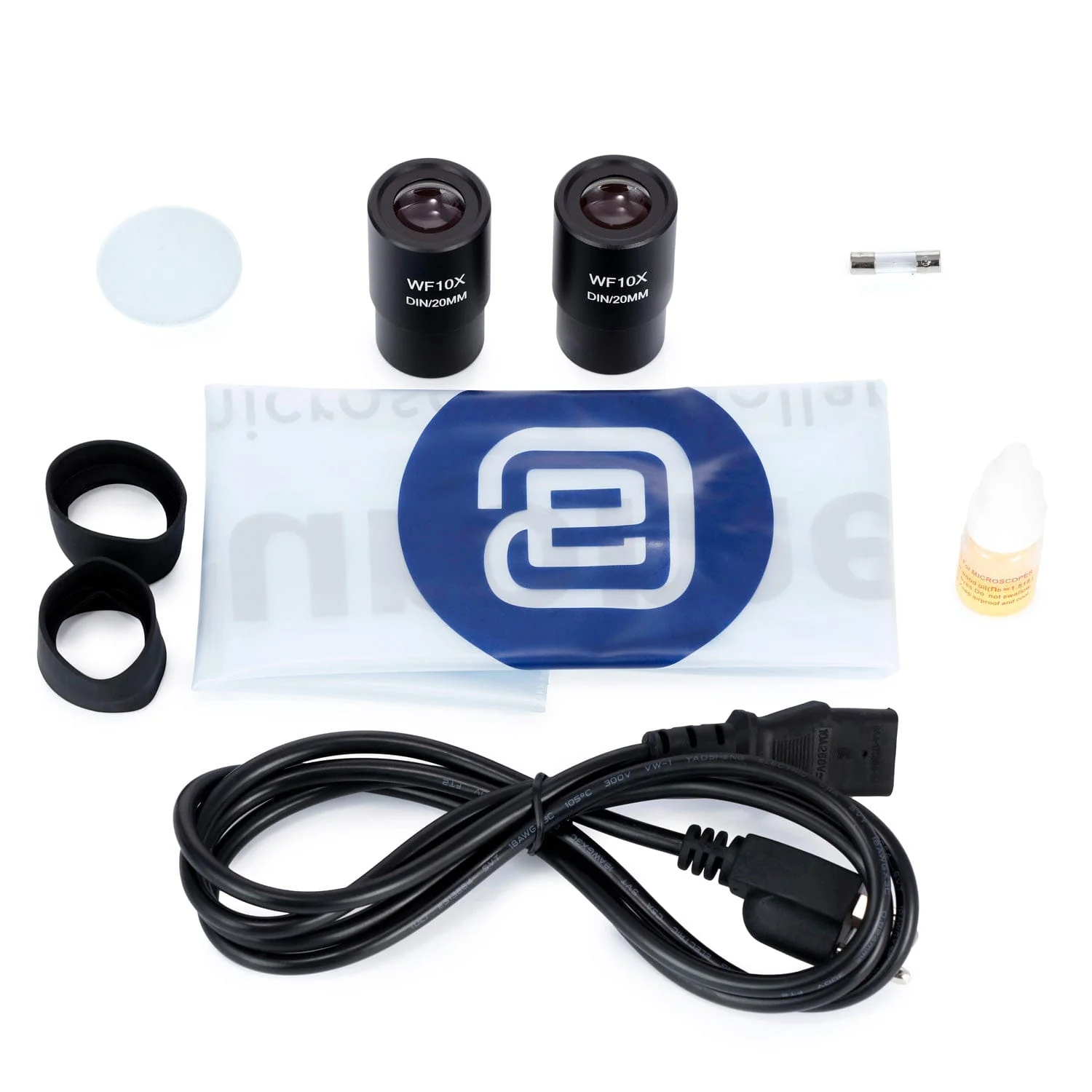

PACKAGE CONTENT

Styrofoam packaging, power cord, dust cover, a spare fuse, blue glass filter, user’s manual, and 5ml immersion oil.

All packed in a polystyrene box.
