AmScope WF100 Digital Enabled Camera with Computer Connected 0.9MP using a C-Mount

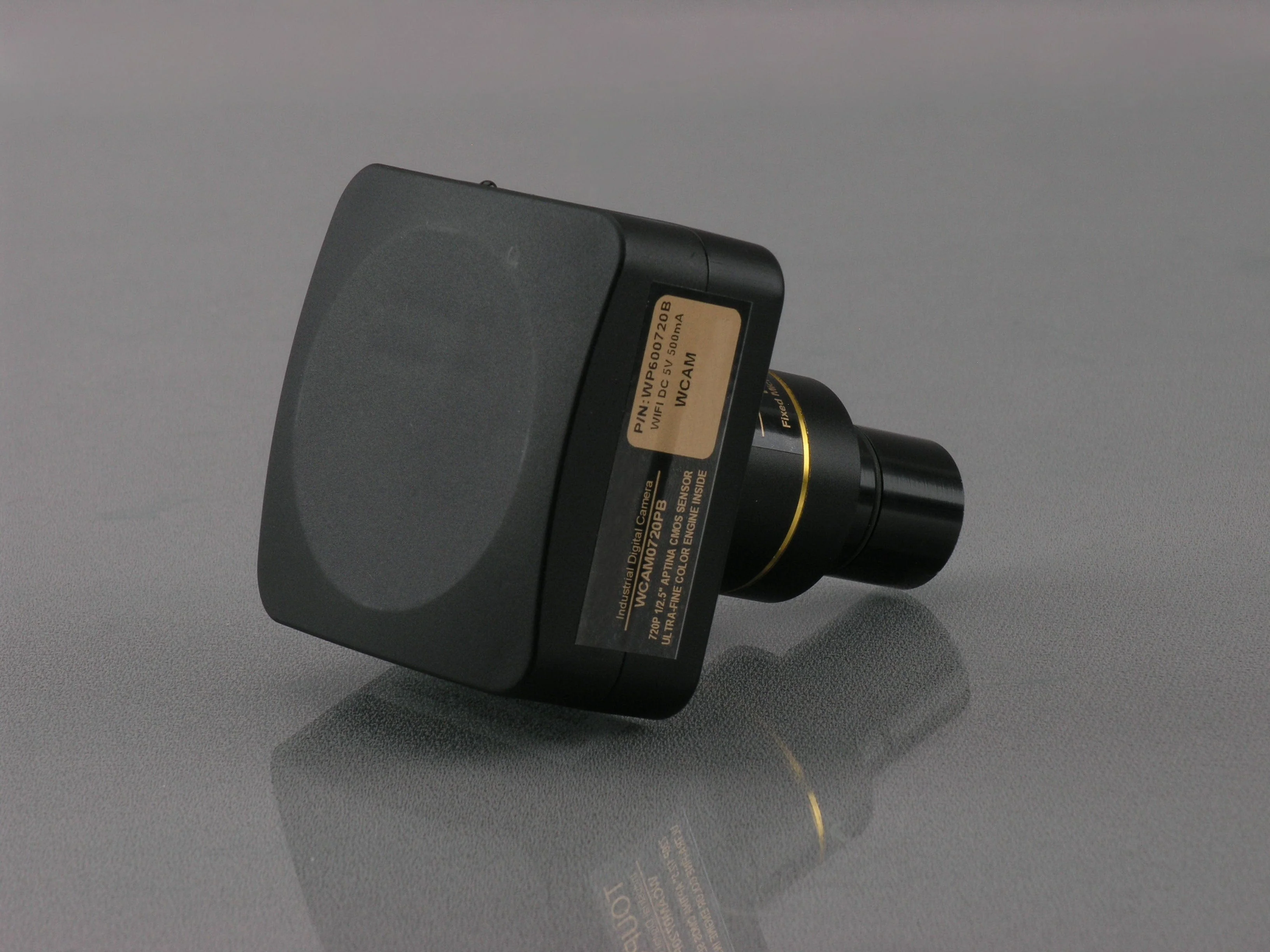

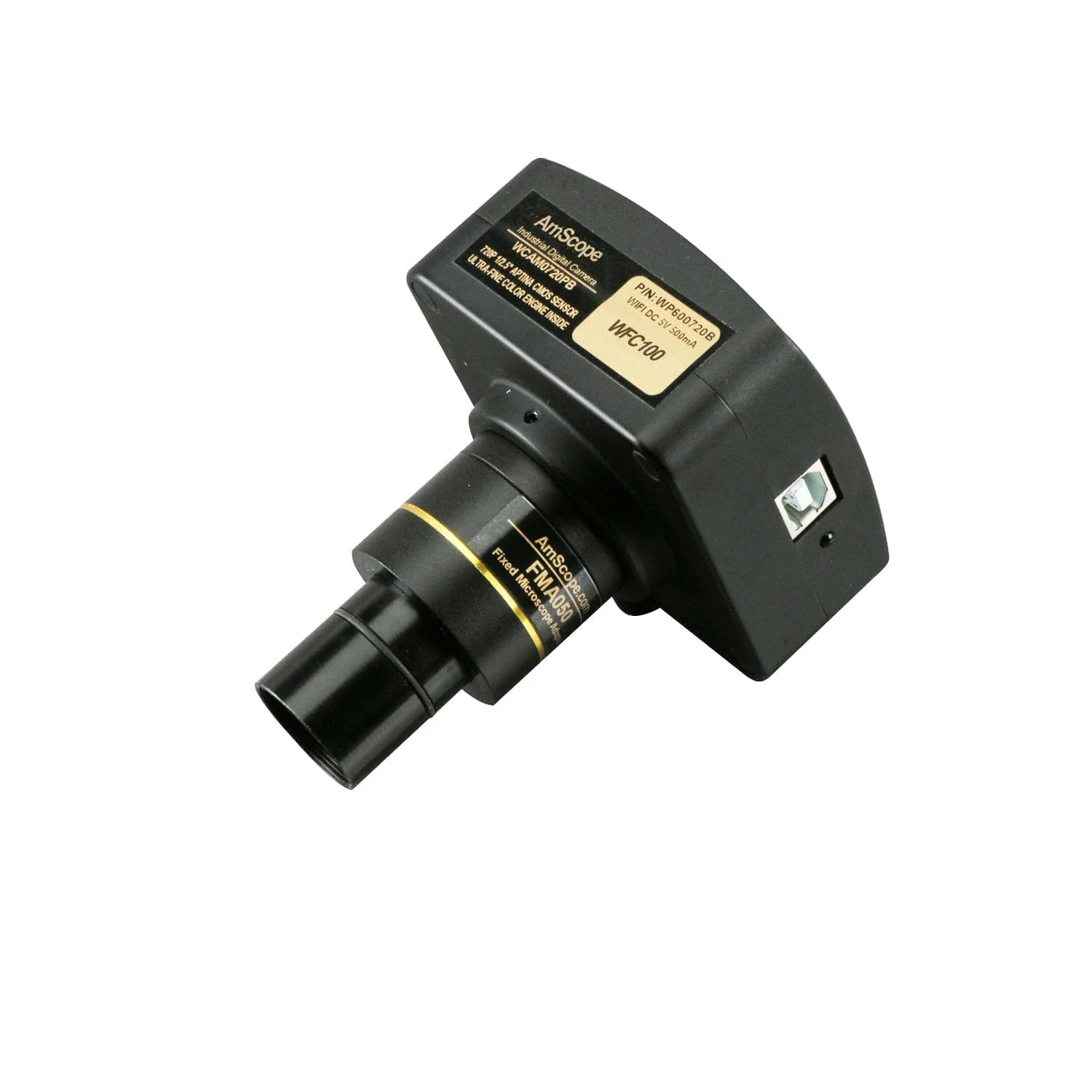

This 720p C-mount camera for microscopes allows you to monitor and record on your computer using a wi-fi connection. The camera acts as a wireless access point, allowing you to connect remotely using standard wi-fi. With our specialized microscopy software installed on your laptop or desktop computer, you can connect to the camera for a live image from your microscope. The camera can be accessed by several users simultaneously to record photos, time-lapse, and videos.

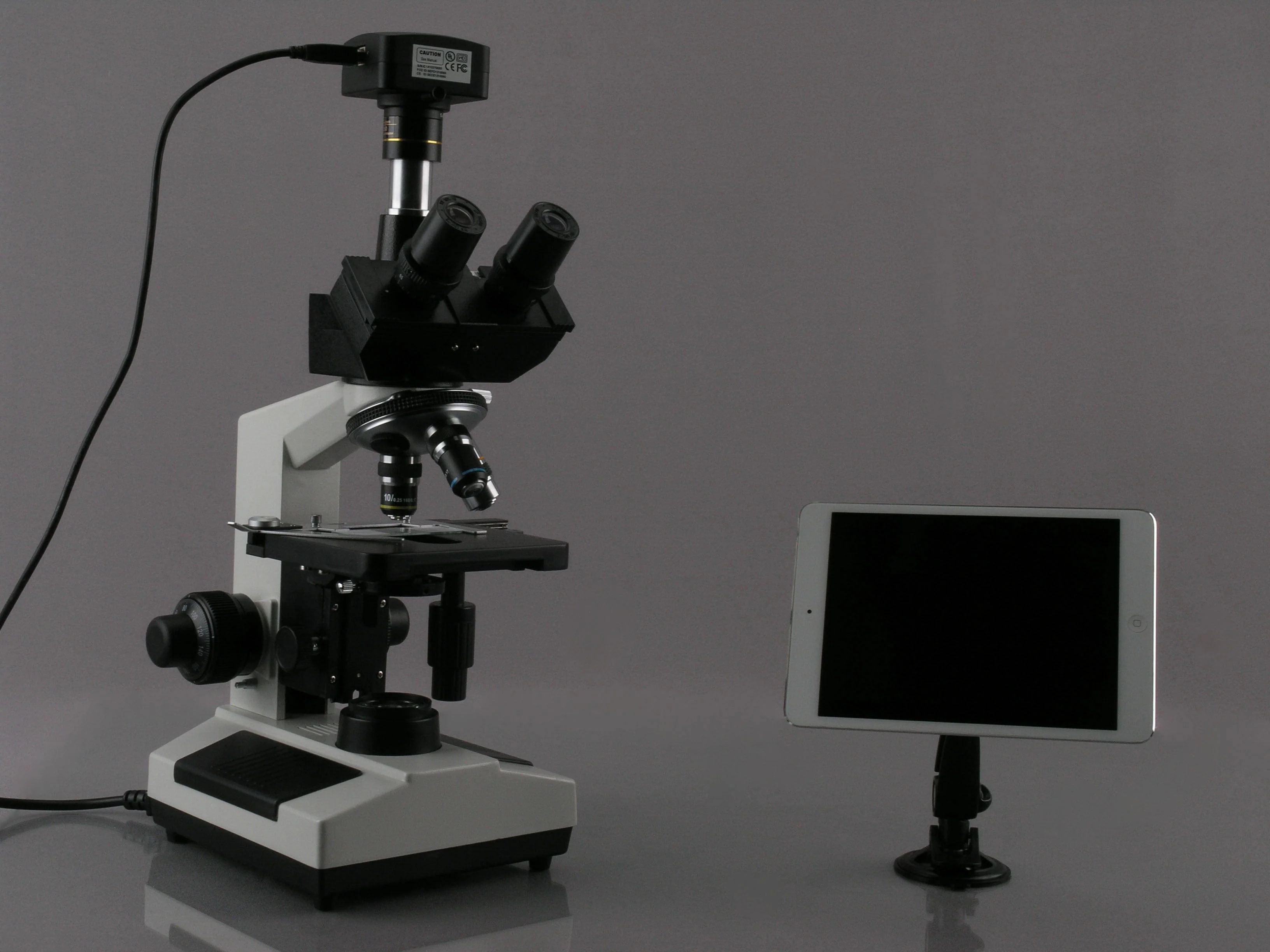

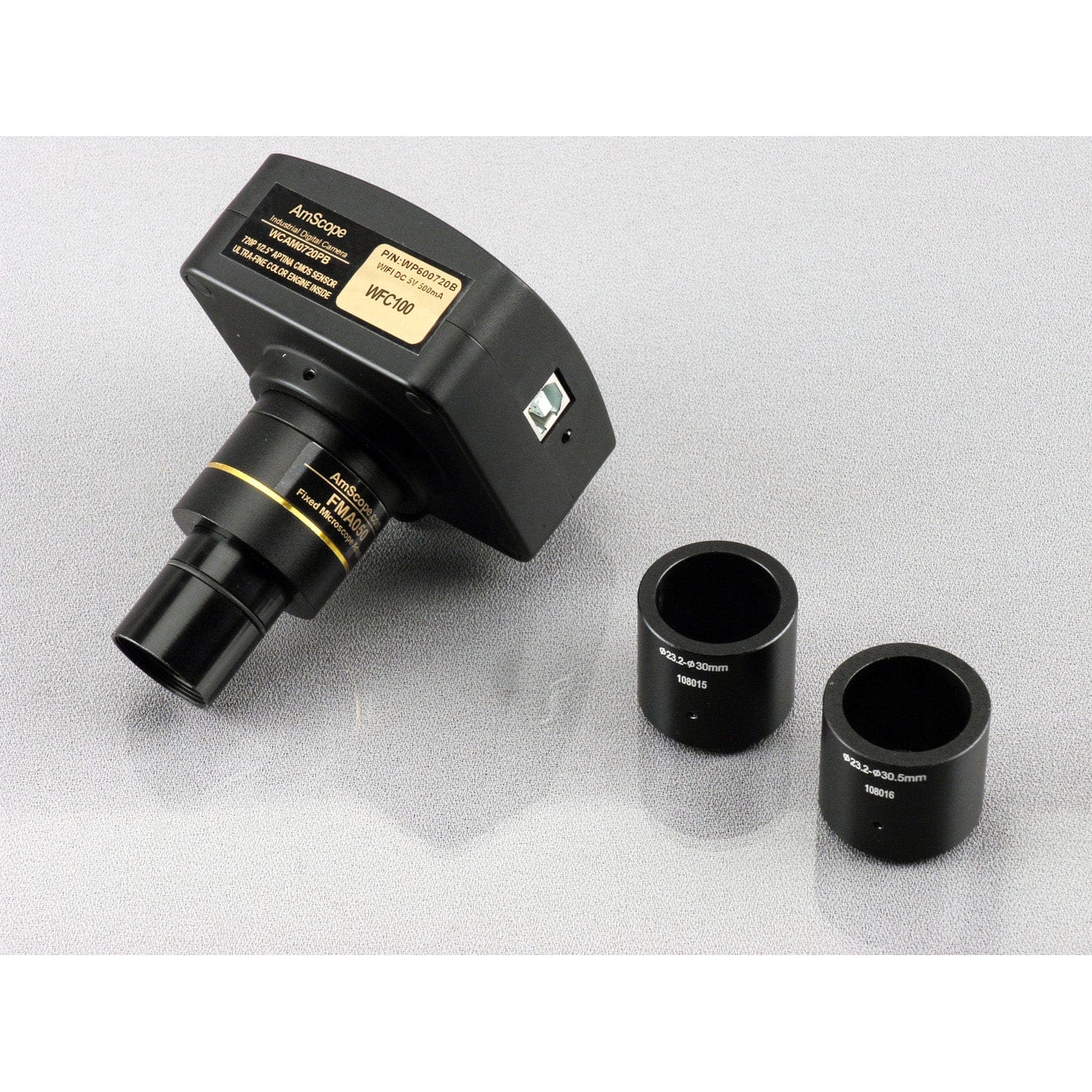

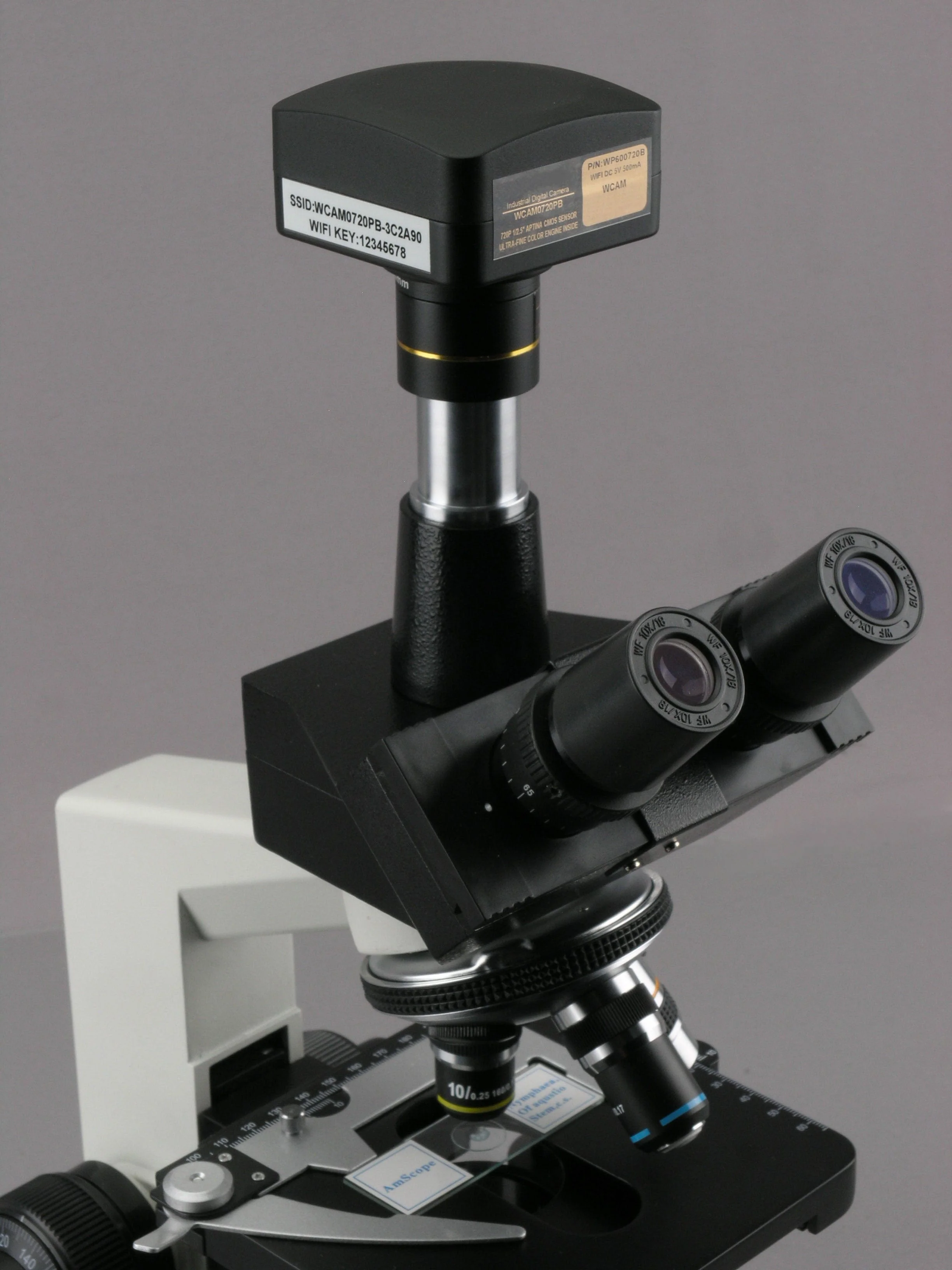

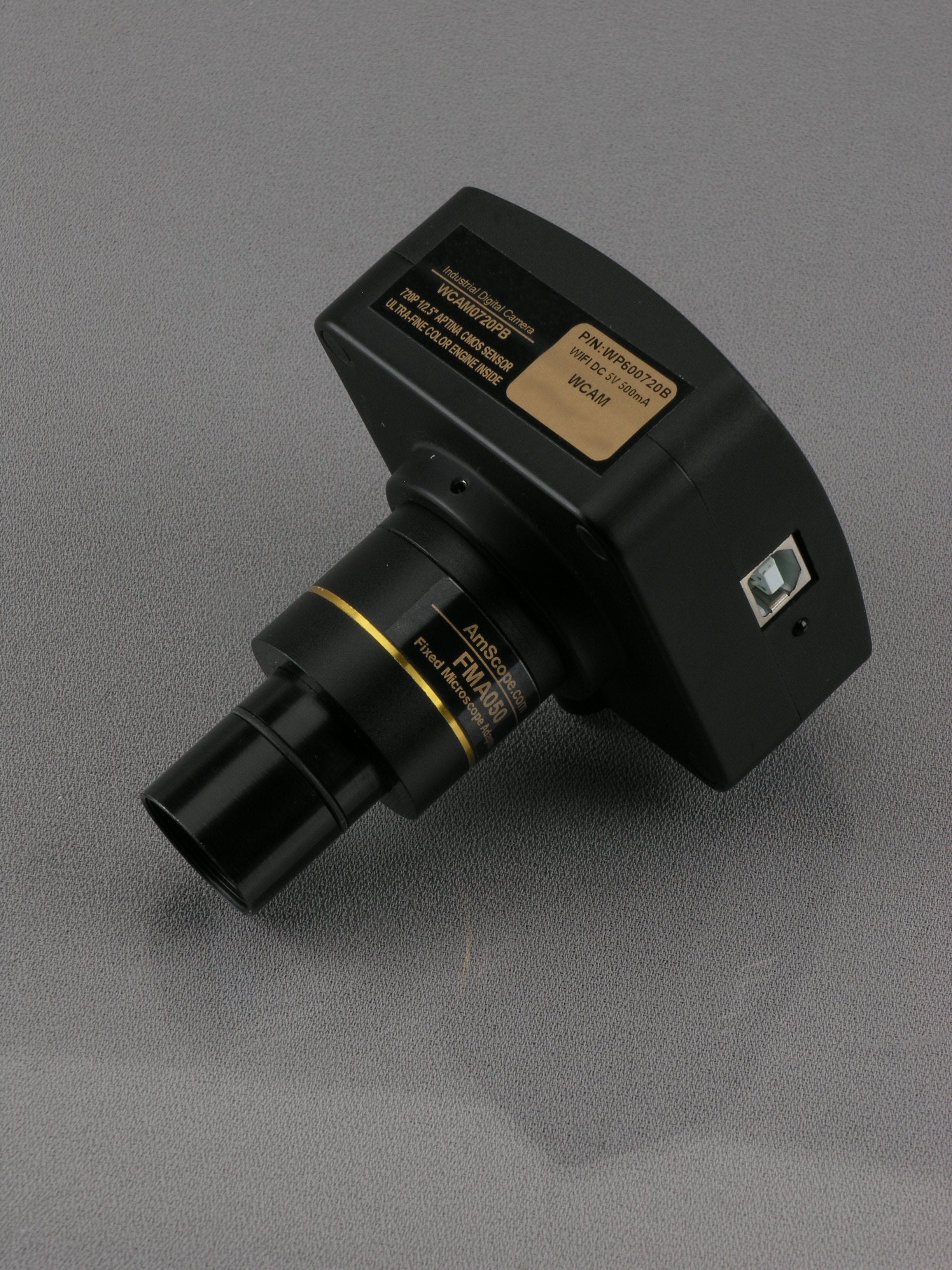

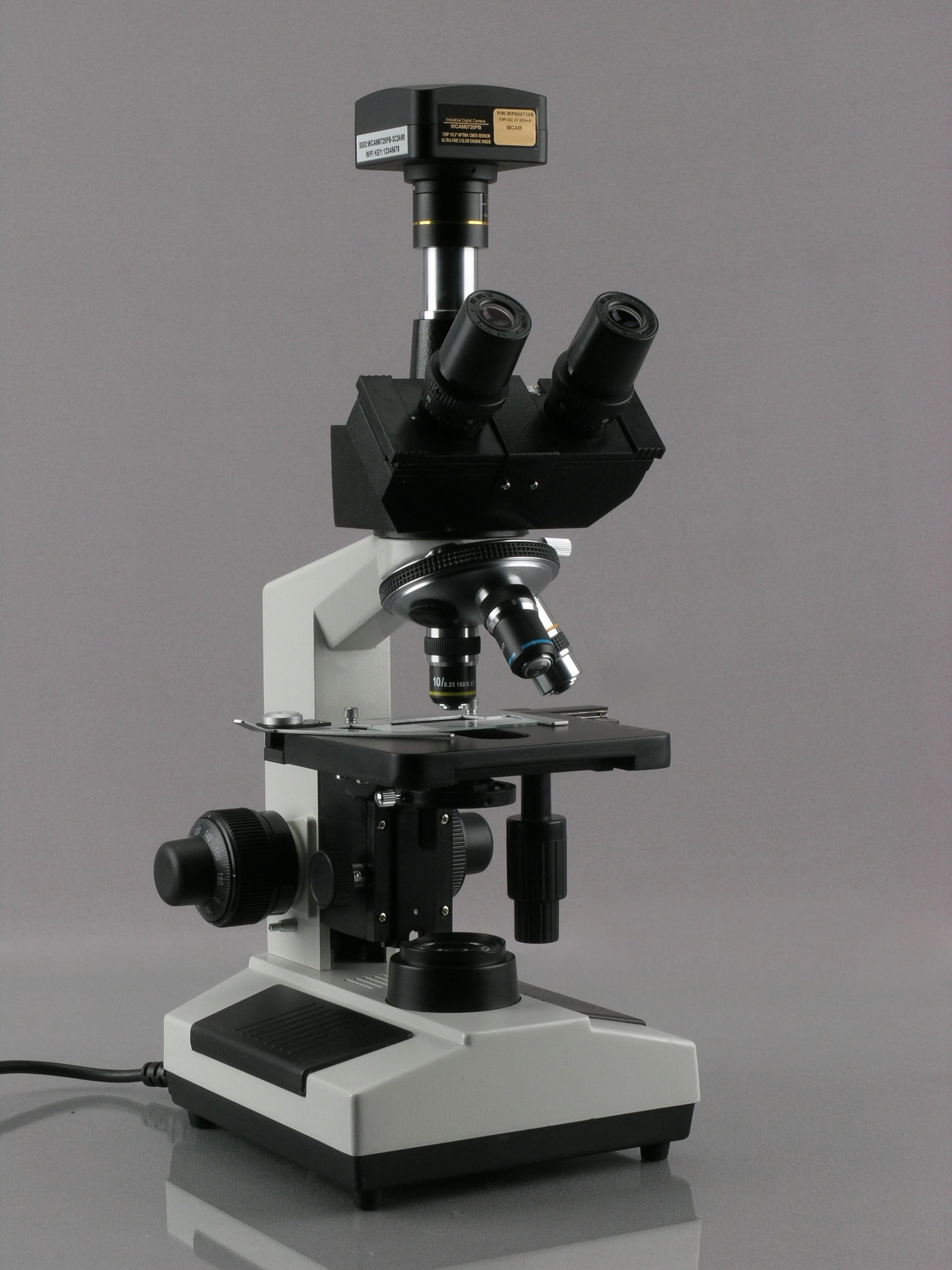

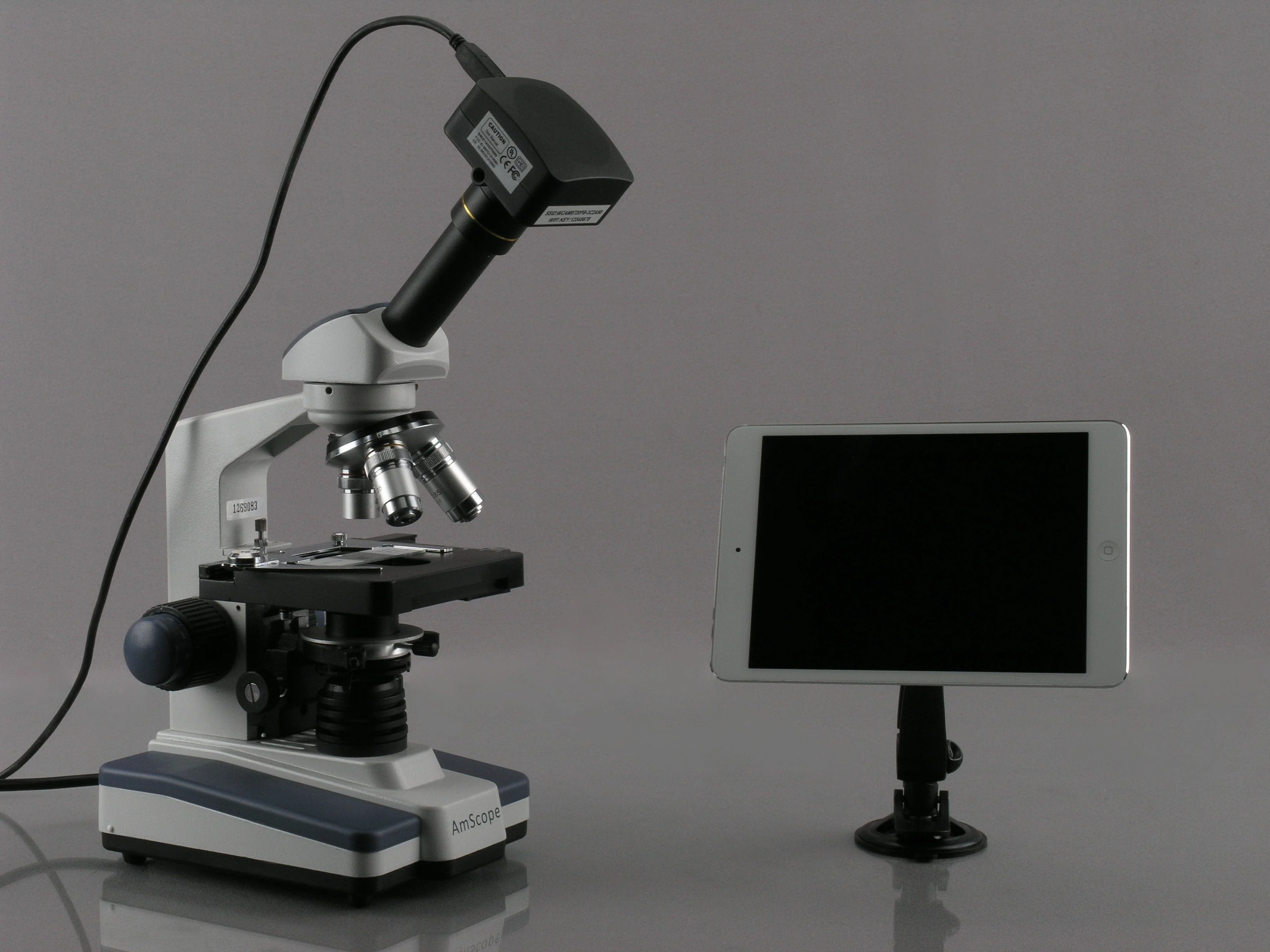

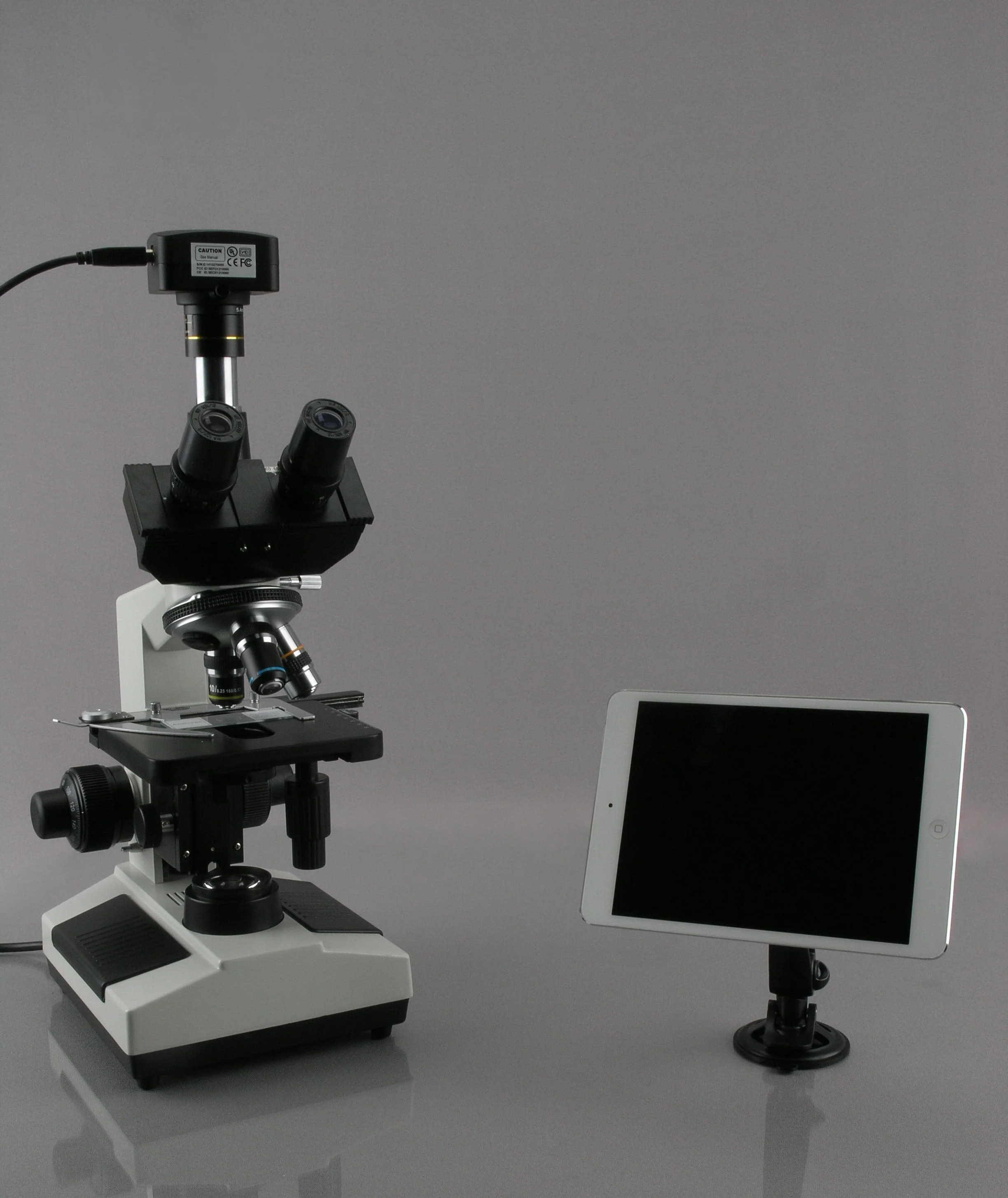

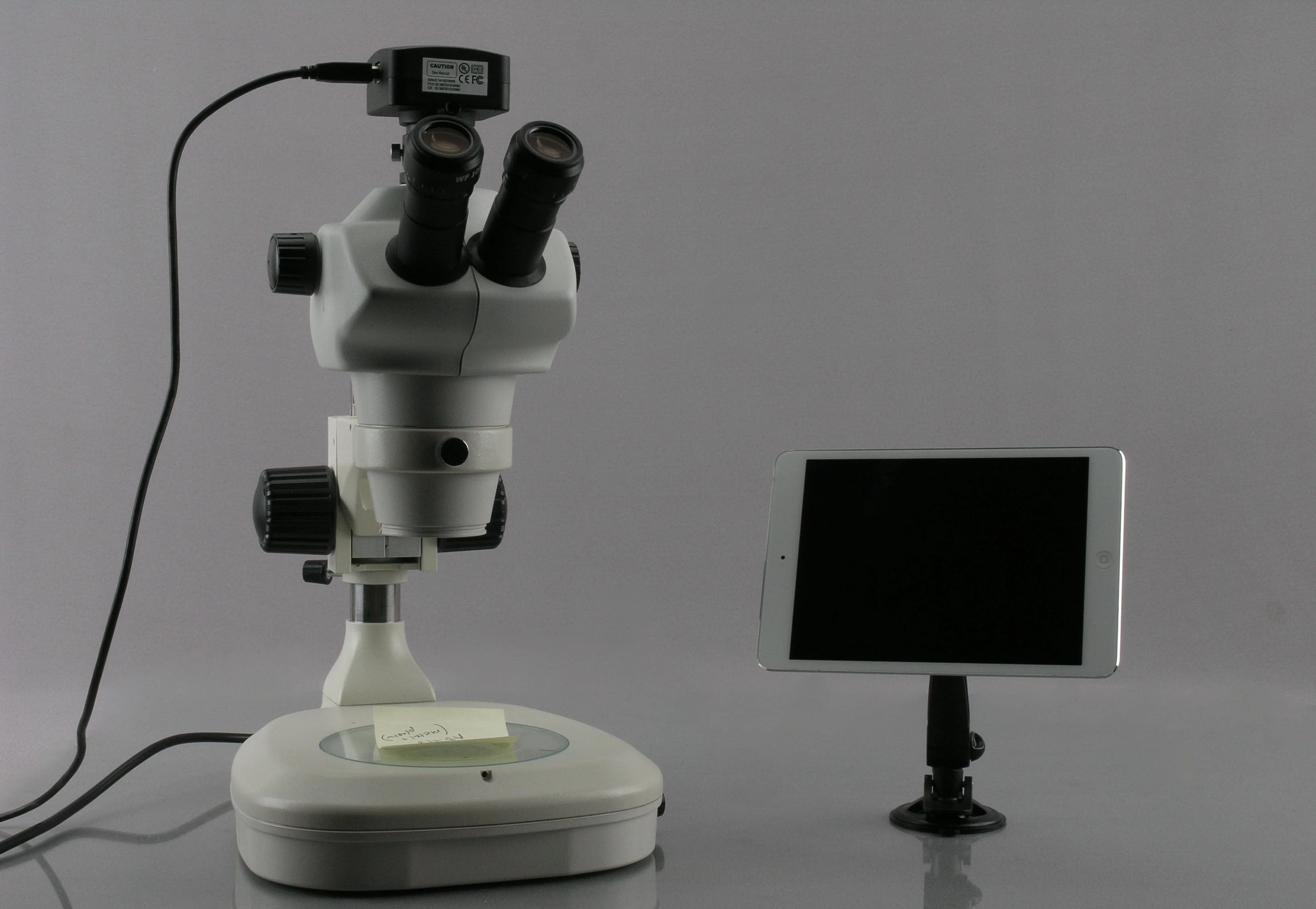

The camera can be mounted to virtually any microscope using an ocular port or a dedicated photo port. The camera uses a C-mount standard lens-mount which can be used with C-mount photo ports, ideally paired with a 0.5X port. For 23mm, 30mm, or 30.5mm ports, a 0.5X reduction lens is included along with sizing adapters. The camera uses a 5V USB port for power, so it can be connected to a PC or an AC outlet using the supplied adapter.
With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while simultaneously capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features.

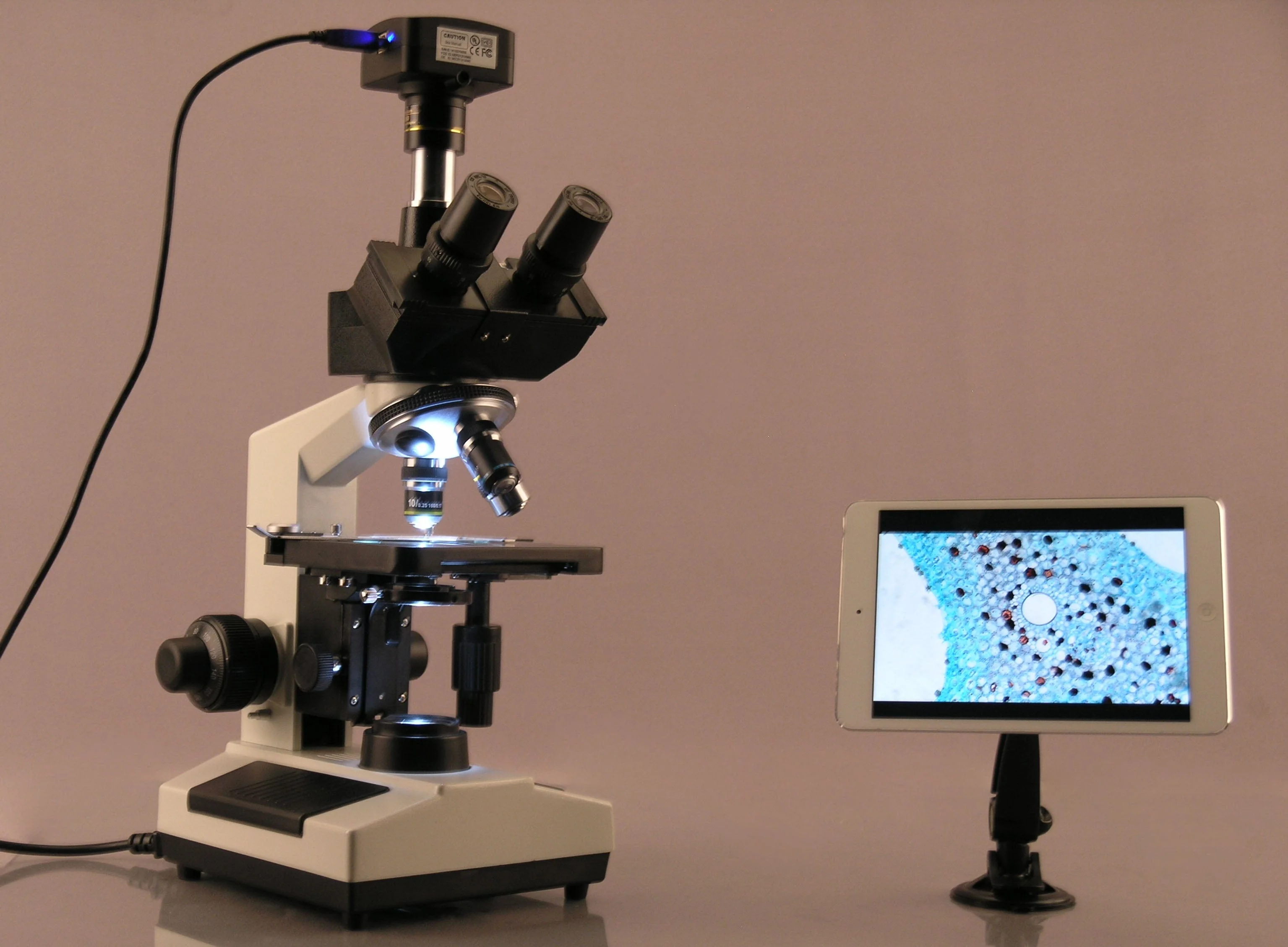

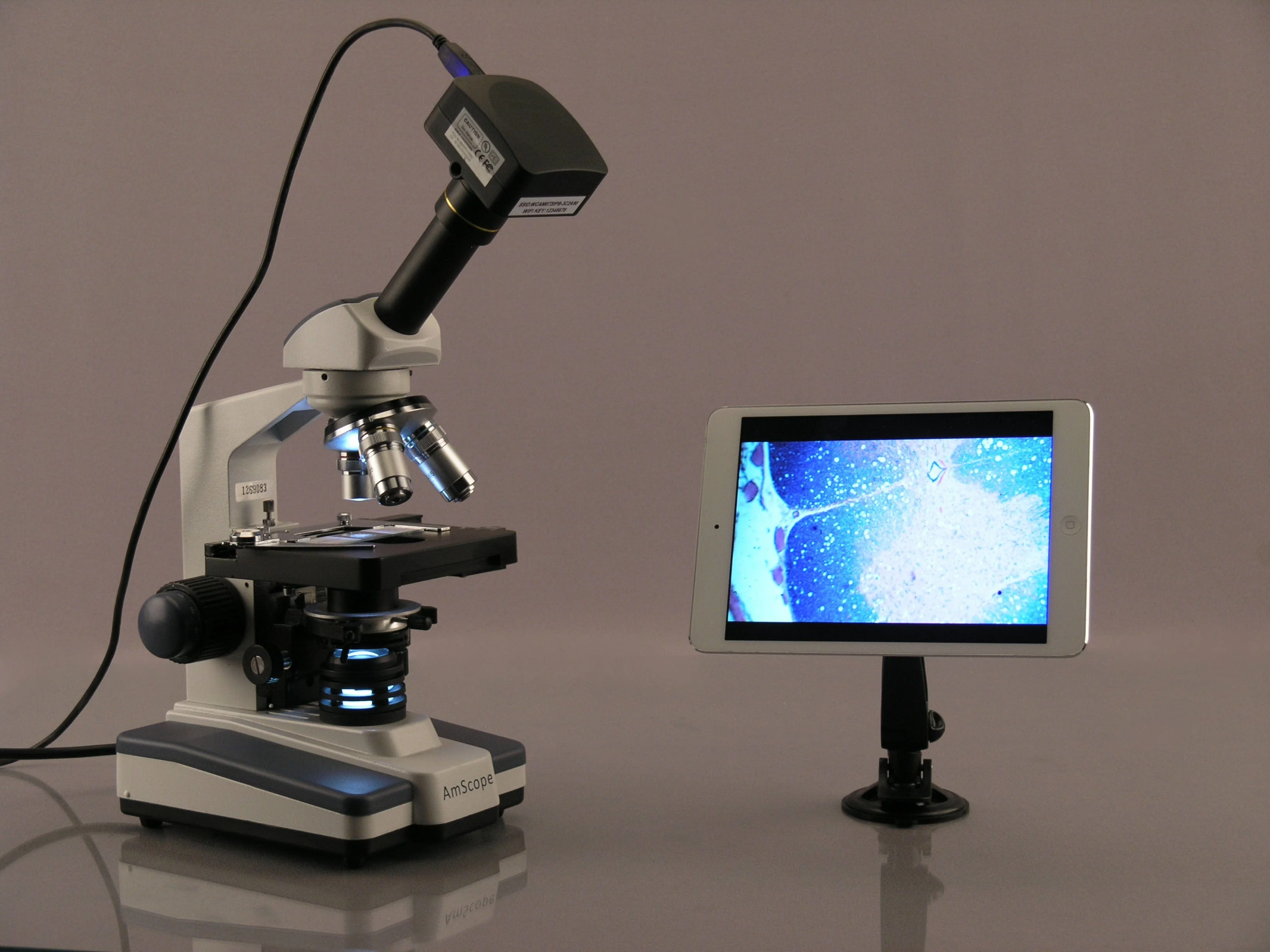

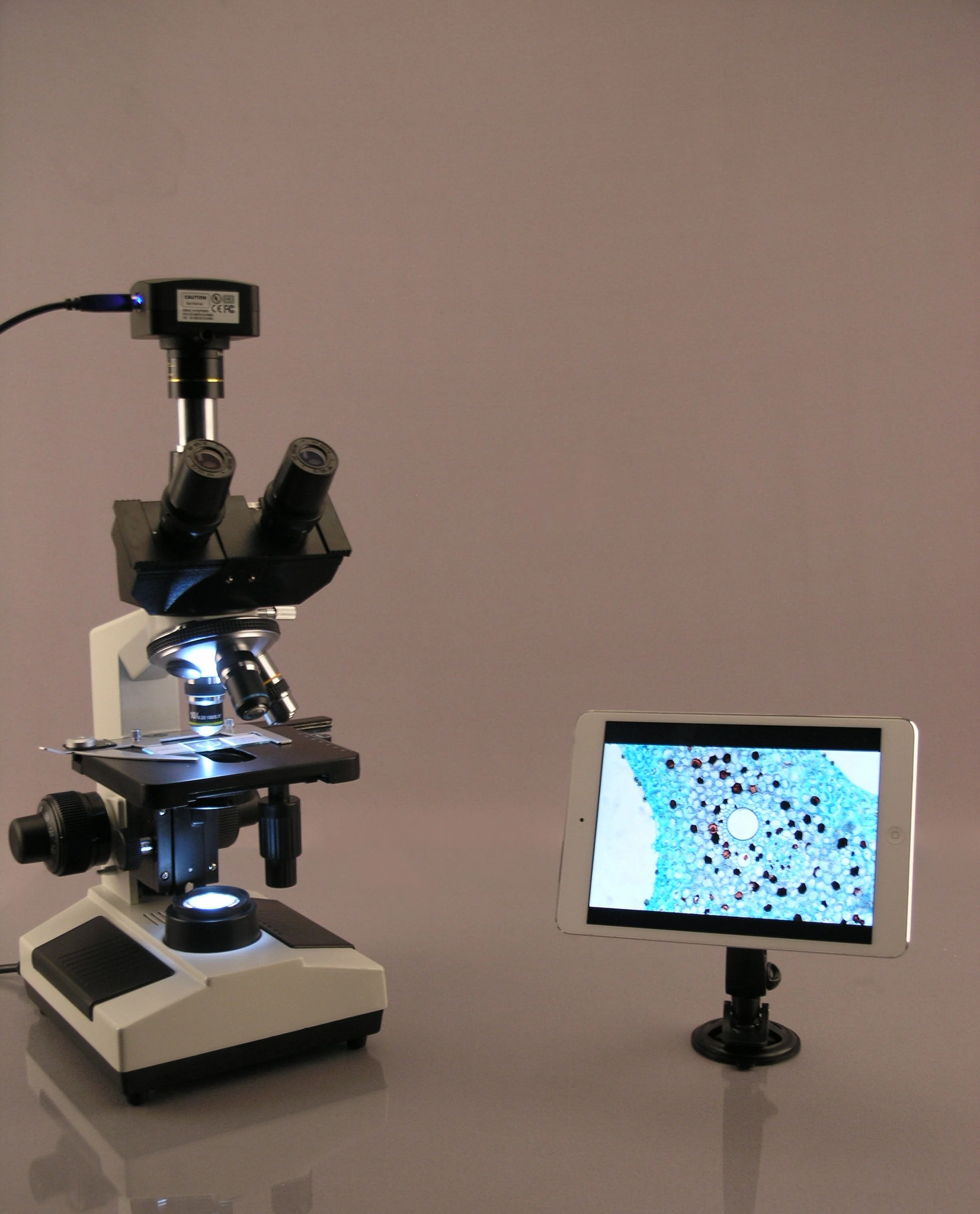

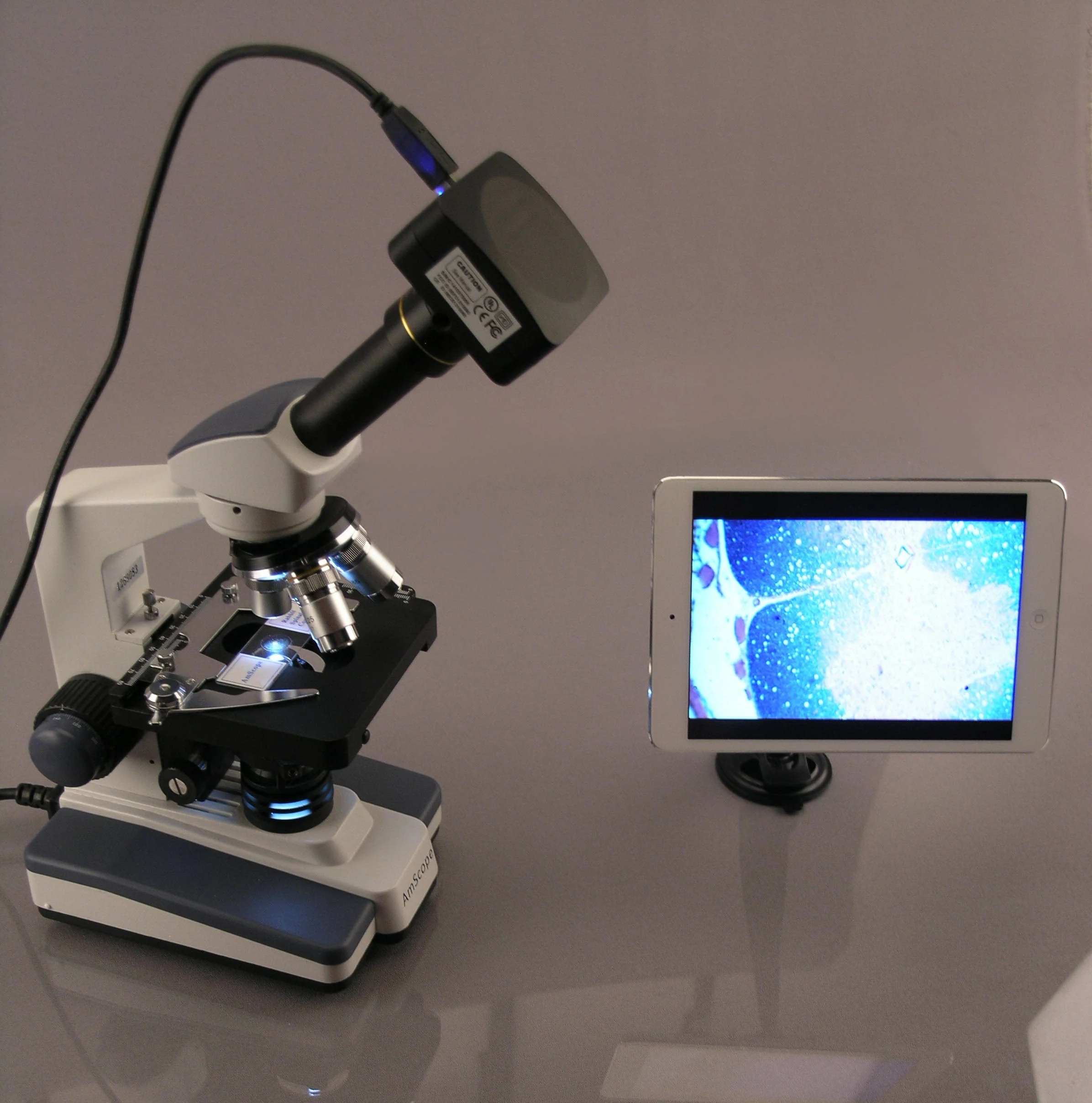

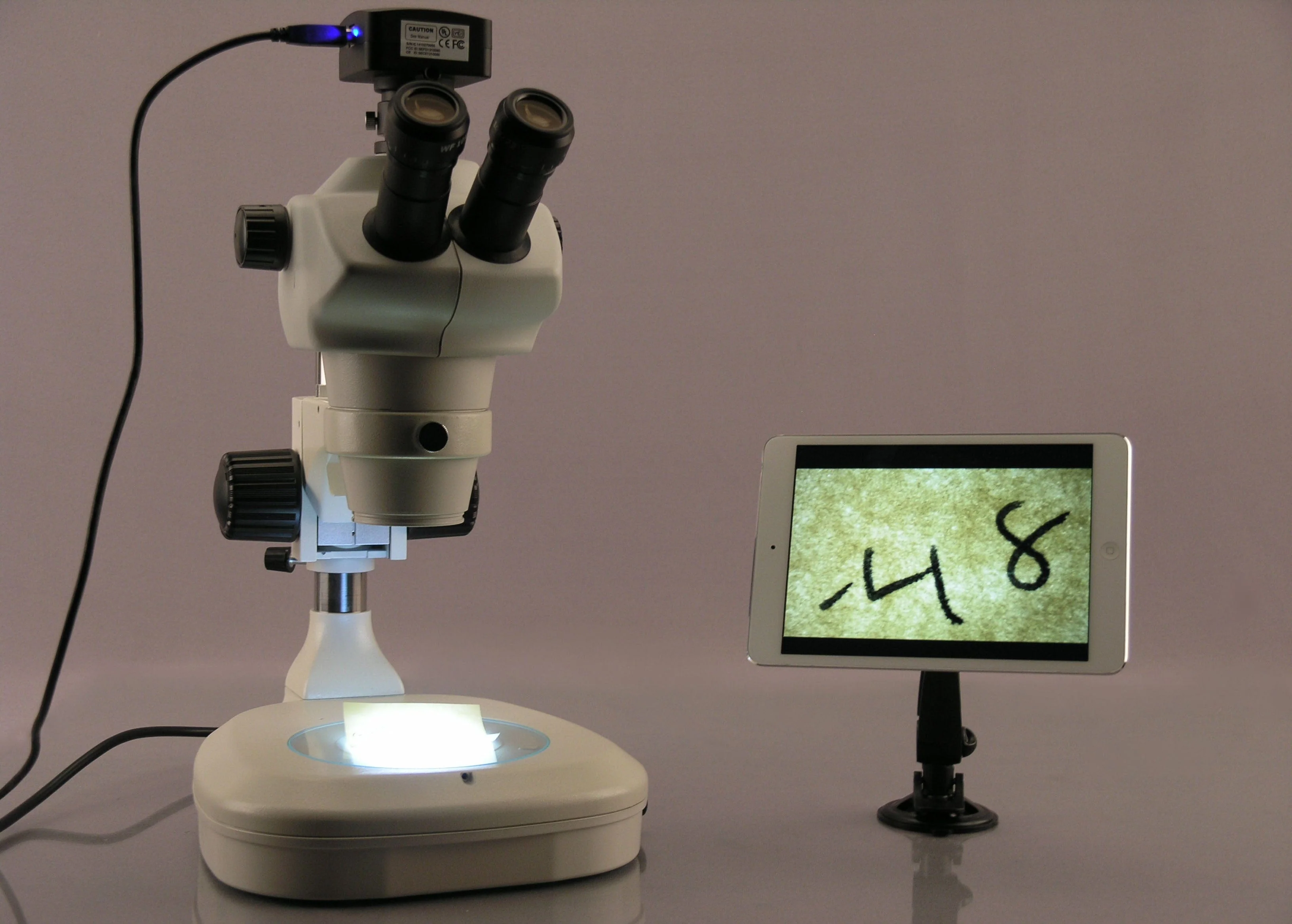

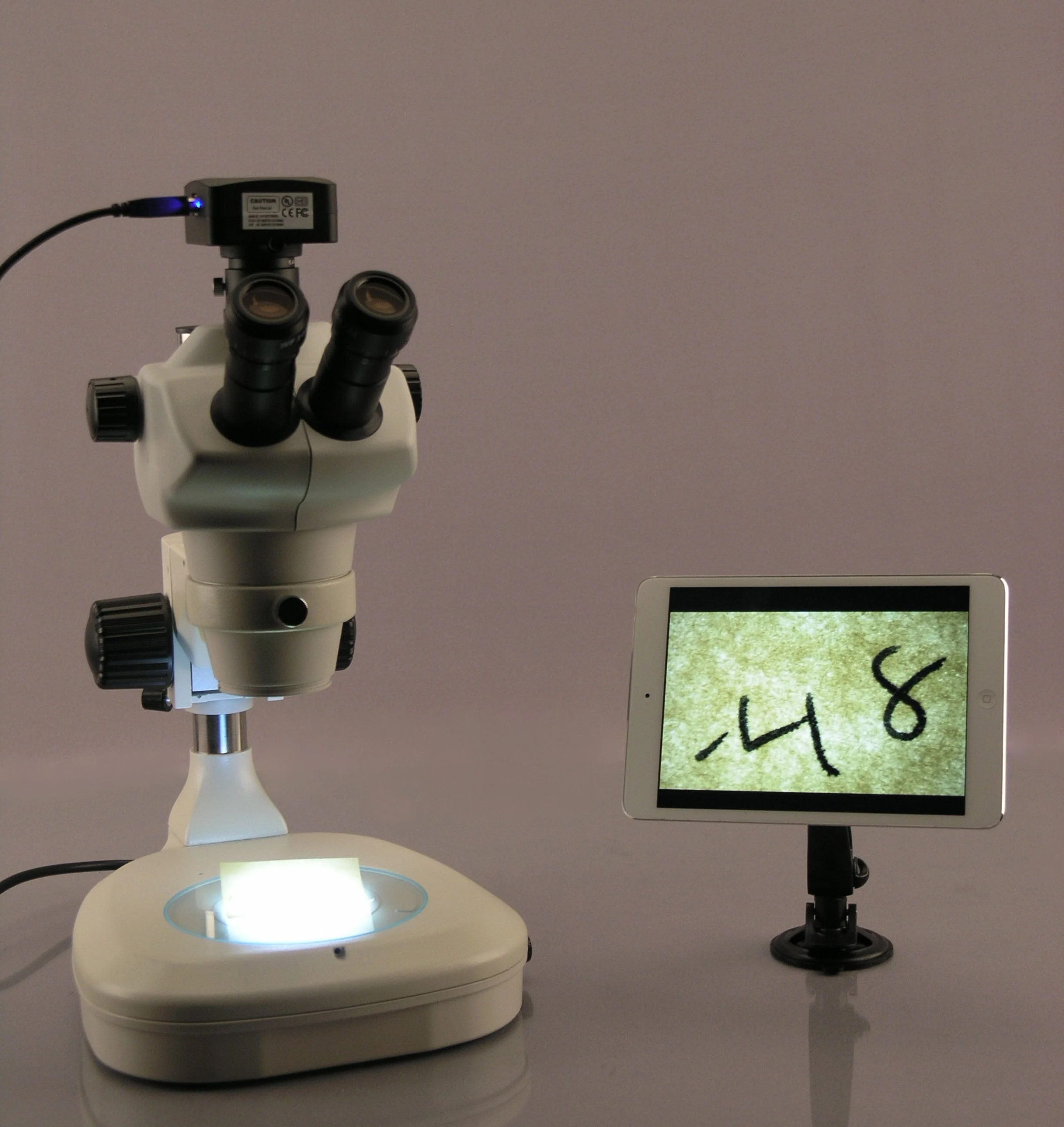

Go mobile with the Toupview mobile app. Android and iOS users can download the free Toupview app from their respective app stores. You can capture photos from the camera right on your phone or tablet.
| Sensor | |
| Model | MT9P001 |
| Sensor Type | CMOS |
| Sensor Size | 1/2.5" format (5.63mm x 3.17mm) |
| Pixels | 0.92 (1280 x 720) |
| Pixel Size | 2.2µm x 2.2µm |
| Shutter | Electronic rolling shutter |
| Sensitivity | 1.0V/Lux-sec |
| Camera | |
| Frame Rate(s) | 10fps @ 1280x720 |
| Connectivity | Wi-fi |
| Lens-mount | C-mount |
| Compensating Lens | 0.5X |
| Power | 5V over USB |
| OS ompatibility | Windows (32/64 bit) XP/Vista/7/8, Mac OSX, Linux |
Software
| OS Requirements | Windows (32/64 bit) 8.1/10/11, Mac OS 10.8+, Linux kernel 3.13+ | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Hardware Requirements | Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB port for power | ||||||||||||||||||
| Features |
|
Contents:
