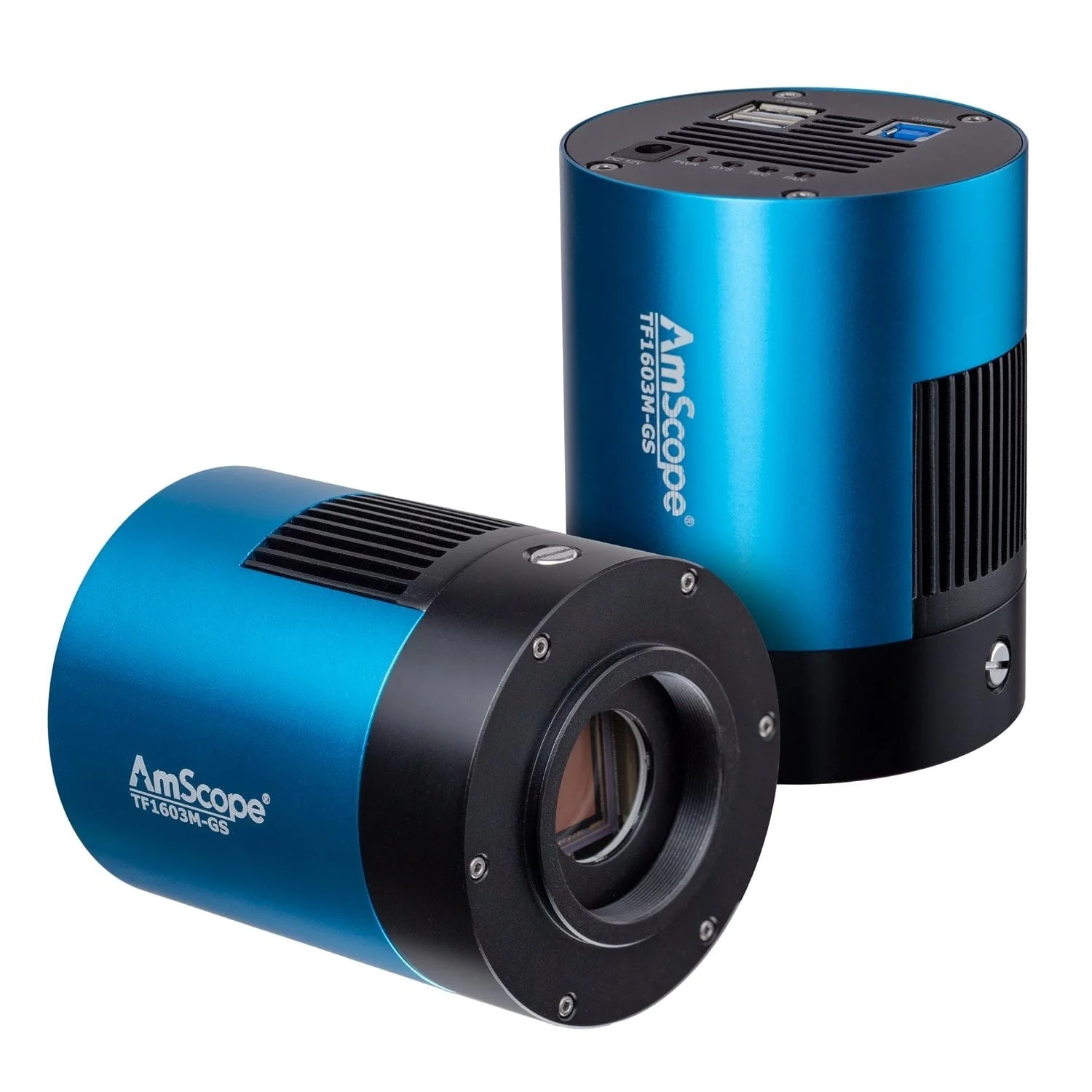

AmScope TF1603M-GS Digital Enabled Global Shutter Camera with Computer Connected USB 3.0 16MP using a C-Mount

The TF1603M is designed to bring a new level of performance to astro-imaging. Deep space imaging is no problem for this camera, with its large, ultra-sensitive sensor and 2-stage thermo-electric cooling. With a high well-capacity and low read-noise, the Panasonic 4/3" sensor soaks up light. The active cooling further controls read-noise with the ability to keep the sensor up to 45°C below ambient while capturing long exposures up to one hour.

Sensor

Sensor	Sensor Type	Shutter	Full Well Capacity
Panasonic MN34230	CMOS	Rolling Shutter	20000 e-

Sensor Size	Pixels	Pixel Size
4/3" format (17.6mm x 13.3mm)	16M	3.8µm x 3.8µm

Camera

Frame Rate(s)	Connectivity	Lens-mount
22.5fps @ 4648x3506 43fps @ 2304x1750 48fps @ 1536x1168	USB 3.0	M42x0.75

Cooling	Power	Compatibility
2-stage Thermoelectric	12V 3A	Windows (32/64 bit) 8.1/10/11, Mac OSX, Linux

Contents:

One USB3.0 Temperature-regulated Digital Camera

One heavy-duty carrying case

One power adapter

One 6' (1.8m) USB Cable

One CD with software and instructions
