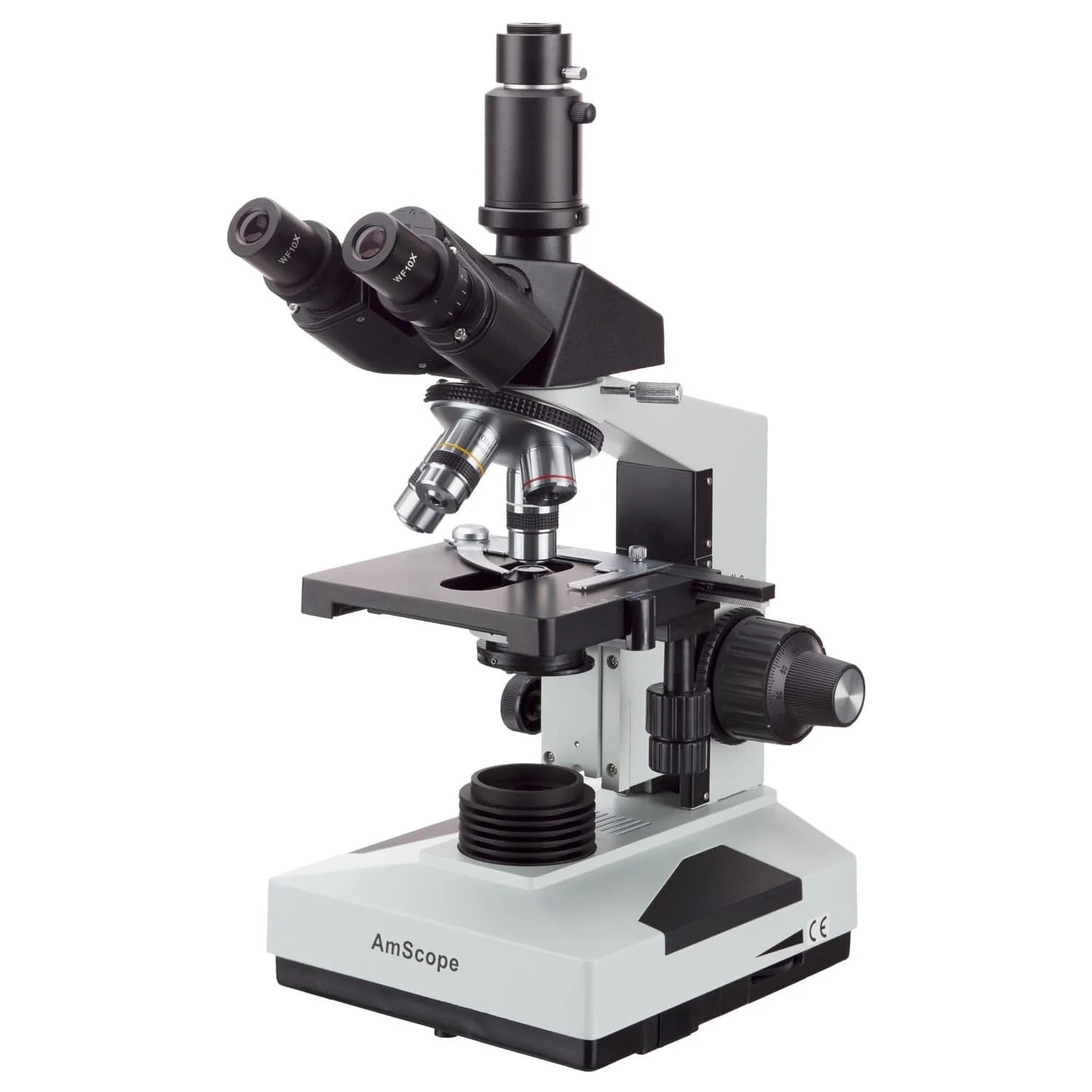

AmScope T490B-220V Trinocular Biological Microscope with 2000X Magnification and 20W Incandescent Light Source
This is the 220V version of the T490B for use only in regions which support 220V.
The T490 is our hardest-working, go-to microscope. The top choice for veterinarians, breeders, and clinics, this instrument has proven reliability and optical-quality. It boasts features such as a compensation-free Siedentopf head, smooth stage-translation, and a precision focus-system with easy tension-adjustment and vertical-lock. The simul-focal photo-port provides a dedicated optical-path for imaging-solutions, with the ability to observe through all three ports simultaneously.
The 490 series offers a wide range of optional accessories to expand the functionality. The magnification range can be expanded with a large selection of objective and ocular lenses. Specialized condensers are available for dark-field and phase-contrast applications, ideal for bloodwork, fluid-analysis, and pathology.
Specifications
| Optical System | Finite |
| Mechanical Tube-length | 160mm |
| Head | Trinocular, 30° incline, 360° rotatable |
| Interpupillary Adjustment | Compensation-free gemel |
| Ocular Tube Diameter | 23mm |
| Eyepieces | 10X FN 18mm 20X |
| Photo-port | CX Height-adjustable 23mm with C-mount adapter |
| Nosepiece | Quadruple forward |
| Objective Lenses | 4X, 10X, 40X (spring), 100X (spring, oil) |
| Focusing System | Coaxial coarse and fine focus, upper limit-stop, tension-control |
| Stage | Double-layer 140mm x 140mm |
| X-Y Translation Range | 75mm x 45mm |
| Focus Range | 30mm |
| Fine-focus Precision | 0.002mm |
| Sub-stage Condenser-holder | Rack-and-pinion |
| Condenser | Achromatic Abbe condenser, NA1.25 |
| Transmitted Illumination | 20W Halogen Incandescent |
| Power | 220VAC 50Hz |
Objective Lenses
| Magnification | Corrections | NA | Cover-glass Thickness |
|---|---|---|---|
| 4X | Achromatic | 0.10 | 0.17mm |
| 10X | Achromatic | 0.25 | 0.17mm |
| 40X | Achromatic | 0.65 | 0.17mm |
| 100X | Achromatic | 1.25 | 0.17mm |
