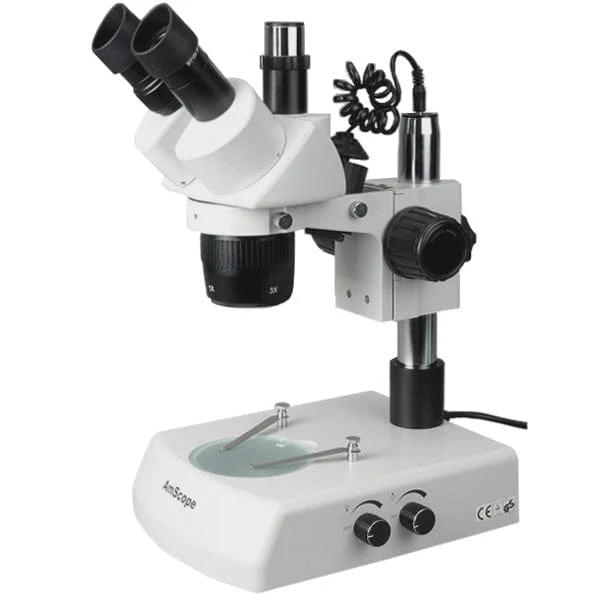

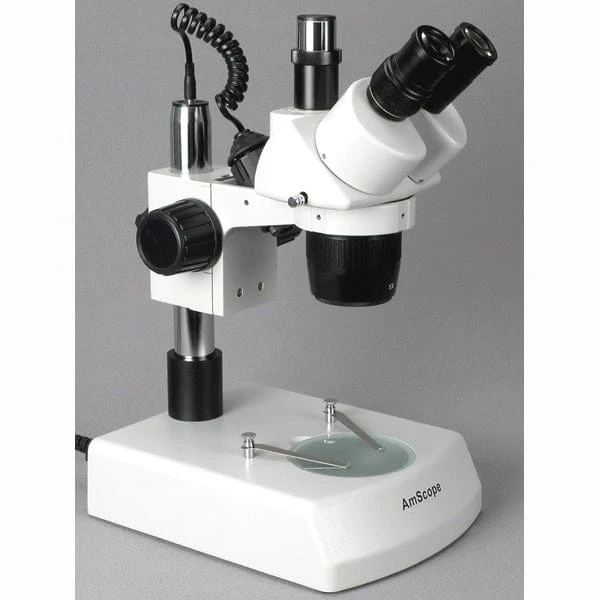

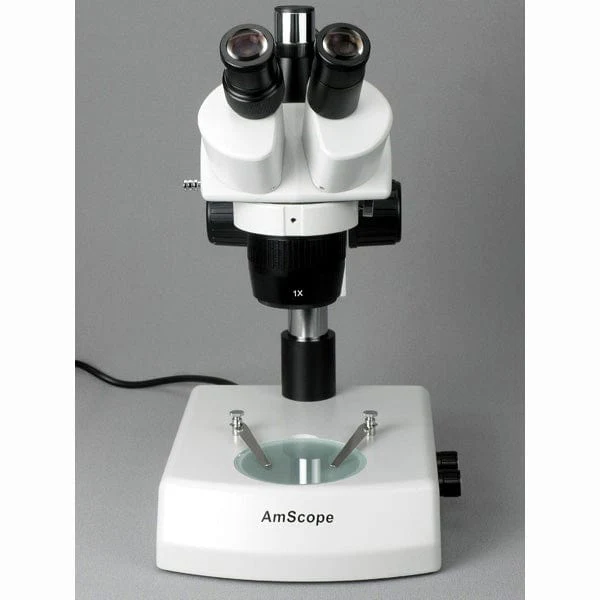

AmScope SW-2T24Y Trinocular Stereo Microscope on a Pillar Stand

This is a top-class trinocular 20X-30X-40X-60X stereo microscope. It incorporates all the most excellent features of a high quality laboratory instrument. Designed to meet the demands of modern professional microscopy applications, this microscope exceeds all expectations. The trinocular port enables to add photographic or video capability. The versatile illumination system with the microscope provides both incident (top) lighting and transmitted (bottom) lighting with intensity controls. The top lighting shining down onto objects is used for the observation of surface details and fine structures of three-dimensional objects. The transmitted illumination through the frosted stage plate is for the observation of the objects that allows light to get through them, like slides, diamond and etc.

This microscope provides super widefield optics, high resolution and good depth within a broad field of view. With super widefield eyepieces, it provides crystal clear images and large working distance. The 45 degree inclined trinocular and high-eyepoint design ensures an easy observation, especially for eyeglass wearers. The rubber eyeguards provide further comfort. This microscope is an ideal instrument for gemologists, jewelry dealers and collectors.

Features:

• A great super widefield trinocular stereo microscope with dual halogen lights
• 20X-30X-40X-60X super widefield magnification settings

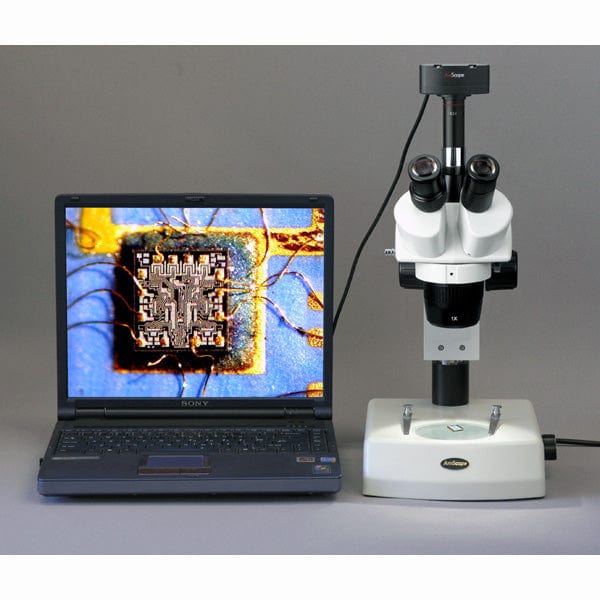

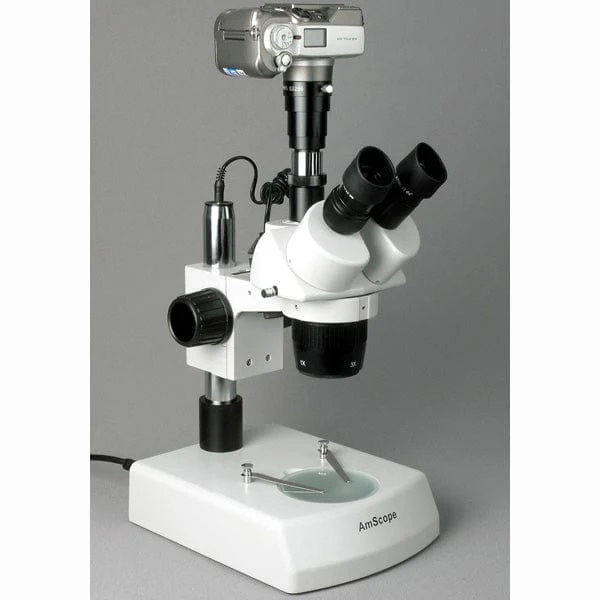

• Trinocular design for photographic or video capability
• 45 degree inclined eyetubes with super widefield eyepieces
• 30mm super widefield high-eyepoint 10X eyepieces
• 4 degree (100mm) large working distance
• Sharp stereo erect images over a super widefield of view
• Adjustable interpupillary distance
• Ocular-tube with adjustable diopter
• High-eyepoint design for easy observation including eyeglass wearers
• Accurate alignment ensuring a fatigue-free comfortable observation
• High resolution with great flatness and contrast
• Crystal clear original true color images
• Full optical glass elements
• Precise ground glass lens
• Metal pillar stand finished with stain resistant enamel
• All metal mechanical components
• Built-in Epi-illumination and transmitted lighting system with adjustable intensity
• CE approval electric apparatus
• Rubber eyeguards included
• Manufactured under restrict ISO 9001 quality control system
• Five (5) year manufacturer warranty for microscope



Specifications:

• Head: 45 degree inclined 360 degree swiveling trinocular
• Eyepiece: super widefield 10X
• Objectives: 2X & 4X
• Barlow Lens: 1.5X
• Working Distance: 4" (100mm)
• Diopter Adjustment: +/-5dp
• Interpupillary Distance: 2-3/16" - 2-15/16" (55-75mm)
• Frosted Glass Plate: 3-3/4" (95mm) in diameter
• White/Black Plastic Plate: 3-3/4" (95mm) in diameter
• Incident (Top) Illumination: 12V/15W halogen bulb
• Transmitted (Bottom) Illumination: 12V/15W halogen bulb
• Power Supply: 110V/60Hz
• Accessories: dust cover, eye-guards and clips

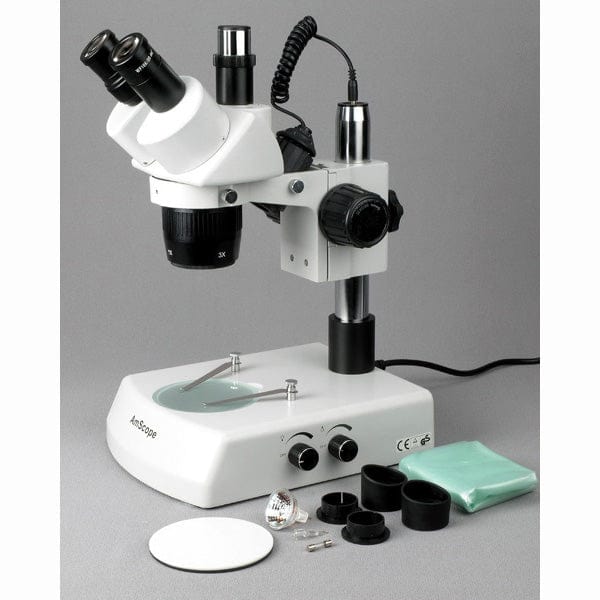

Packing List :

• One Trinocular Microscope Head
• One Pair of Super Widefield High-eyepoint 10X Eyepieces
• One Super Widefield 1.5X Barlow Lens
• One Pillar Stand with Transmitted Halogen Bottom Light
• One Incident (Top) Halogen Light
• One Focusing Rack
• One Pair of Eye-guards
• User's Manual Download
• Shipping Weight: 20 lbs
