AmScope SM-3TZ-144-10M3-B Digital Enabled Trinocular Stereo Microscope with 90X Magnification and LED Light Source 10MP Camera on a Single Arm Boom Stand

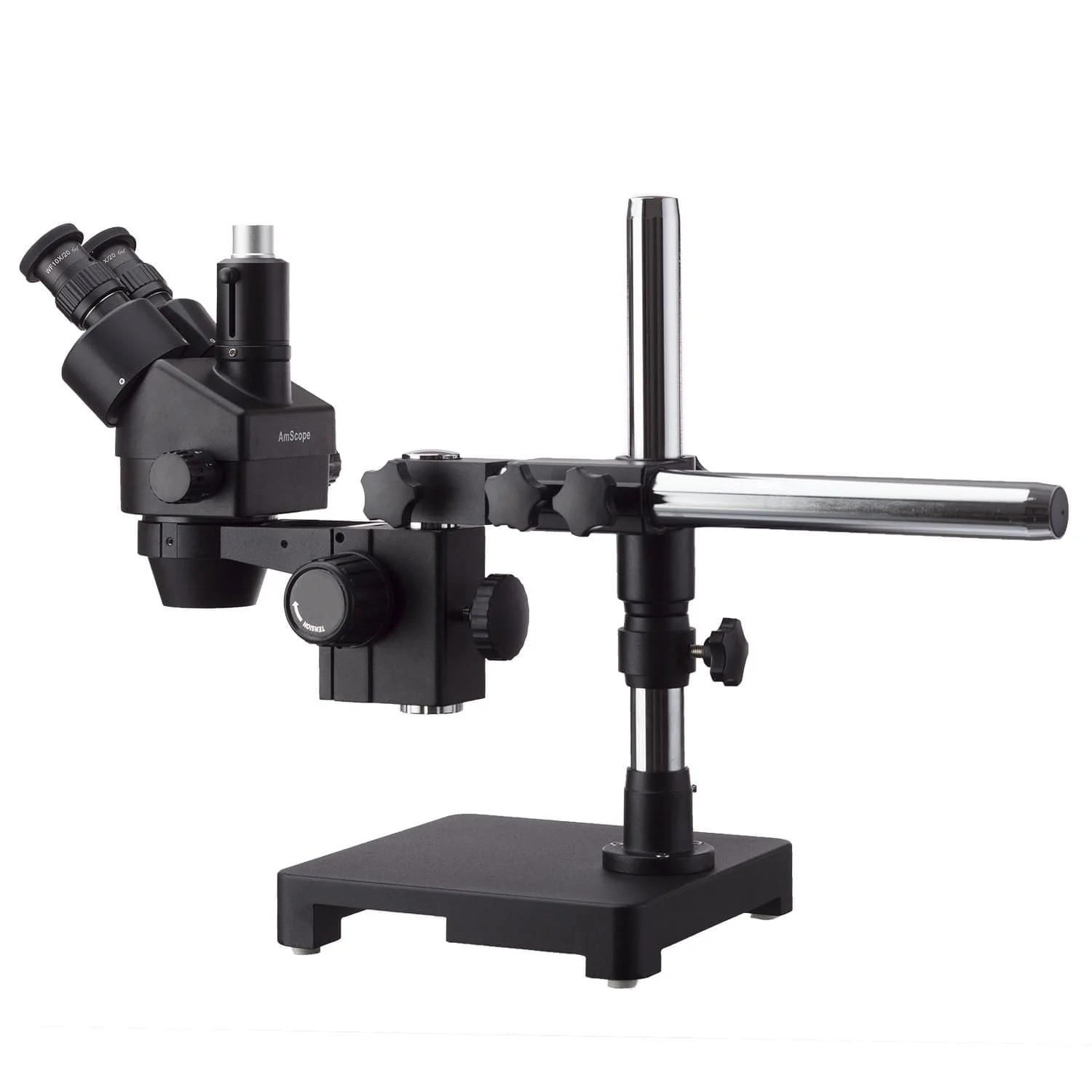

This is a black version of our popular 3.5X-90X zoom stereo microscope mounted on a single-arm boom stand. It comes with a trinocular head with super widefield optics, 10X eyepieces, for a zoom ratio of 26:1,a sturdy single-arm boom-stand, and a 144-LED ring-light with controller. The trinocular port enables to add photographic or video capability to the microscope. Its 45 degree inclined trinocular oculars and high-eyepoint optical design ensures a comfortable observation for all kinds of users including eyeglass wearers. The single-arm boom stand allows to turn the microscope head around two different axes, allowing you to point microscope head in various directions. This microscope offers high resolution, super widefield of view, large magnifying zoom range and long working distance. It is an ideal instrument for researchers, gemologists, engravers, and anyone in semiconductor and/or electronics industry.

The 10MP USB3.0 digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features

Features:

3.5X-90X Zoom Stereo Microscope with Super Widefield Optics

Trinocular Design for High Quality Photographs or Video

30mm Super Widefield 10X Eyepieces with 20mm Field of View

8 inch (200mm) Large Working Distance

45 Degree Inclined Trinocular Head

Sharp Stereo Erect Images over a Wide Field View

Crystal Clear Original True Color Images

High Resolution with Great Flatness and Contrast

Eye Tube with Adjustable Diopter

Adjustable Interpupillary Distance

High-eyepoint Optic Design Ensuring an Easy and Comfortable Viewing, Especially for Eyeglass Wearers

Accurate Alignment Ensuring a Fatigue-Free Comfortable Observation

Rubber Eyeguards Providing Further Comfort

Full Optical Glass Elements

Precise Ground Glass Lens

Sturdy Boom Stand for Versatility and Large Working Area

Stand Finished with Stain Resistant Enamel

1.5" Rugged Solid Cast Metal Stand Base

All Metal Mechanical Components

Manufactured under ISO 9001 Quality Control Standard

Excellent Five (5) Year Manufacturer Warranty

Specifications:

Head: 45 degree inclined 360 degree swiveling trinocular

Eyepiece: 30mm super widefield high-eyepoint WF10X/20

Objective: 0.7-4.5X

Barlow Lens: 0.5X & 2.0X

Zoom Ratio: 26:1

Maximum Field of View: 2-1/2" (65mm)

Minimum Field of View: 3/16" (4.75mm)

Diopter Adjustment: +/-5dp

Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)

Working Distance: 8" (200mm)

Boom Stand: 16" arm (overall length: 24"), 17" high pillar, 9" x 9" x 1-3/4" solid cast steel base

Ring-light LED Count: 144

Power Input: 110-240V, 50-60HZ, auto-switching

Software Specifications:

OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+

Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB3.0

Camera Specifications:

Sensor: Aptina MT9P006 (Color)

Sensor Type: CMOS

Sensor Size: 1/2.5" (5.70mm(H) x 4.28mm(V), diagonal 7.13mm)

Pixel Size: 2.2µm x 2.2µm

Resolution: 5.0MP

Frame Rate: 39fps @1280x960, 14.5fps @2560x1922, 101fps @640x480

Sensitivity: 01.76v / lux-sec (550nm)

Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux

Packing List :

One Trinocular Stereo Zoom Head

One Pair of Super Widefield 10X Eyepieces

One 0.5X Barlow Lens

One 2.0X Barlow Lens

One Single-Arm Boom-Stand

One Focus Rack

One Pair of Eye-Guards

One 144-LED Ring-light

One Control Box for Ring-light

One AC cord for Ring-light

One Ring-light Mounting Adapter

One 10MP USB3.0 Microscope Digital Camera with Reduction Lens

Three Mounting Adapters

One USB Cable

One CD with Driver, Software and User's Instructions
