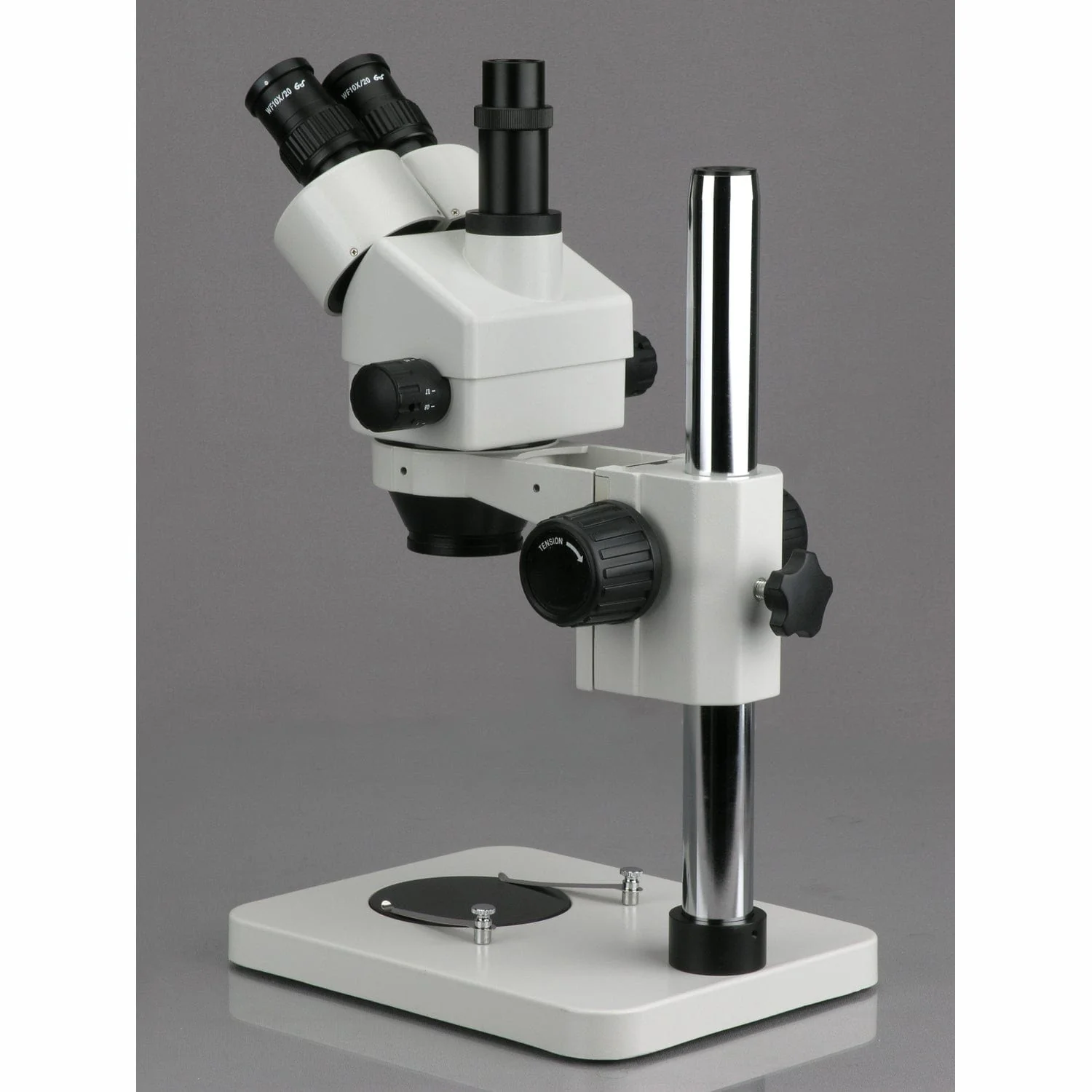

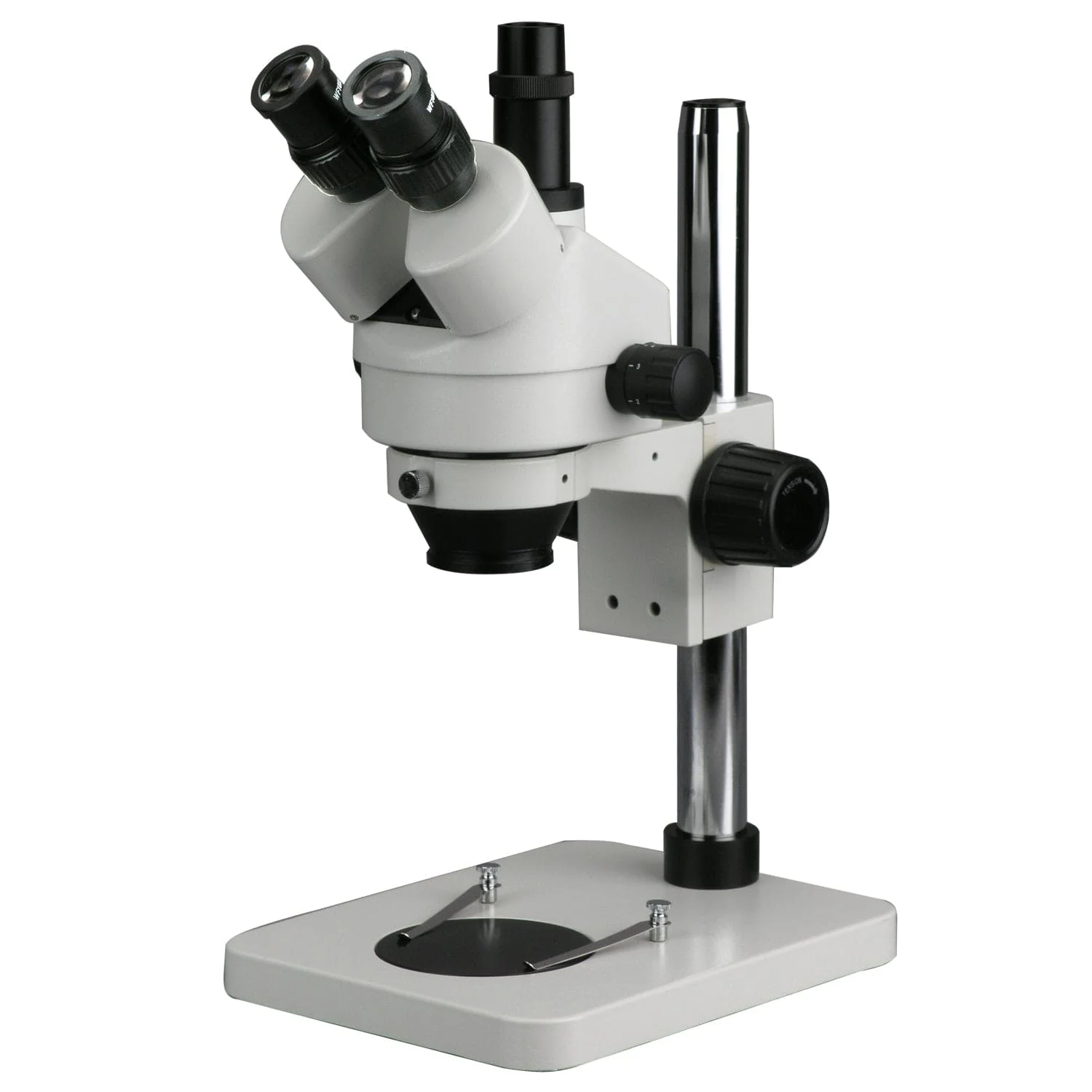

AmScope SM-1TSL-V331 Trinocular Stereo Microscope with 45X Magnification on a Pillar Stand

This top of the line 7X-45X trinocular stereo zoom microscope is equipped with SUPER widefield optics. This microscope has been designed for use in organic or temperature-sensitive applications - like, dissecting live tissues or observing live organisms.

The optics of this SM series microscope features a large zoom magnification range, which produces sharp, crystal-clear stereo images, while providing a generous working distance. The 360 degree swiveling, trinocular head is attached at a 45 degree angle, which ensures easy and comfortable observation - especially when used in conjunction with the included rubber eyeguards. Also included is our taller 14" pillar stand, allowing you to easily view taller samples and use high working distance, low magnification settings as well.

It is perfect for the examination of organic matter, such as insects, plants, or virtually any 3-dimensional, temperature-sensitive object. It is ideal for those who work in biology, forestry, archaeology, and agriculture. With its high resolution, good depth, and broad field of view, this microscope can be used for both educational and professional purposes in research labs, hospitals, schools, and veterinary offices.

This microscope provides all the excellent features of a high quality laboratory instrument at an affordable price. Note that a light source is not included with this unit, and should be purchased separately from our Illuminators section.

Features:

• A great microscopy system for temperature-sensitive applications
• 7X-45X large zoom range continuous magnification
• 45 degree inclined 360 degree swiveling trinocular head with SUPER widefield eyepieces
• High-eyepoint design for easy observation including eyeglass wearers
• Industry standard 23mm upright tube for photo or video accessories
• One pair of 30mm SUPER widefield eyepieces (see the difference in the above picture)
• High resolution with great flatness and contrast
• Sharp stereo erect images over a SUPER widefield of view
• Crystal clear original true color images
• Both ocular-tubes with adjustable diopter
• 14" Metal pillar stand finished with stain resistant enamel
• Accurate alignment ensuring a fatigue-free long time viewing
• Full optical glass elements
• Precise ground glass lenses
• All metal mechanical components
• Adjustable interpupillary distance
• Rubber eyeguards included
• Manufactured under restrict ISO 9001 quality control system
• Five (5) year manufacturer warranty

Specifications:

• Head: 45 degree inclined 360 degree swiveling trinocular
• Eyepiece: 30mm super wide field high-eyepoint WF10X/20
• Objective: 0.7-4.5X
• Zoom Range: 26:1
• Diopter Adjustment: ±5dp
• Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)
• Working Distance: 4" (100mm)
• Field of View: 1-1/4" (32.5mm)
• Accessories: dust cover, eye-guards and clips
• Shipping Weight: 25 lbs

Packing List:

• One Trinocular Stereo Zoom Head
• One Pair of Super Widefield High-Eyepoint 10X Eyepieces
• One 14" Pillar Base Stand with Plastic Black/White Stage Plate
• One Focusing Rack
• One Pair of Clips
• One Pair of Eye-guards
• User's Manual Download
