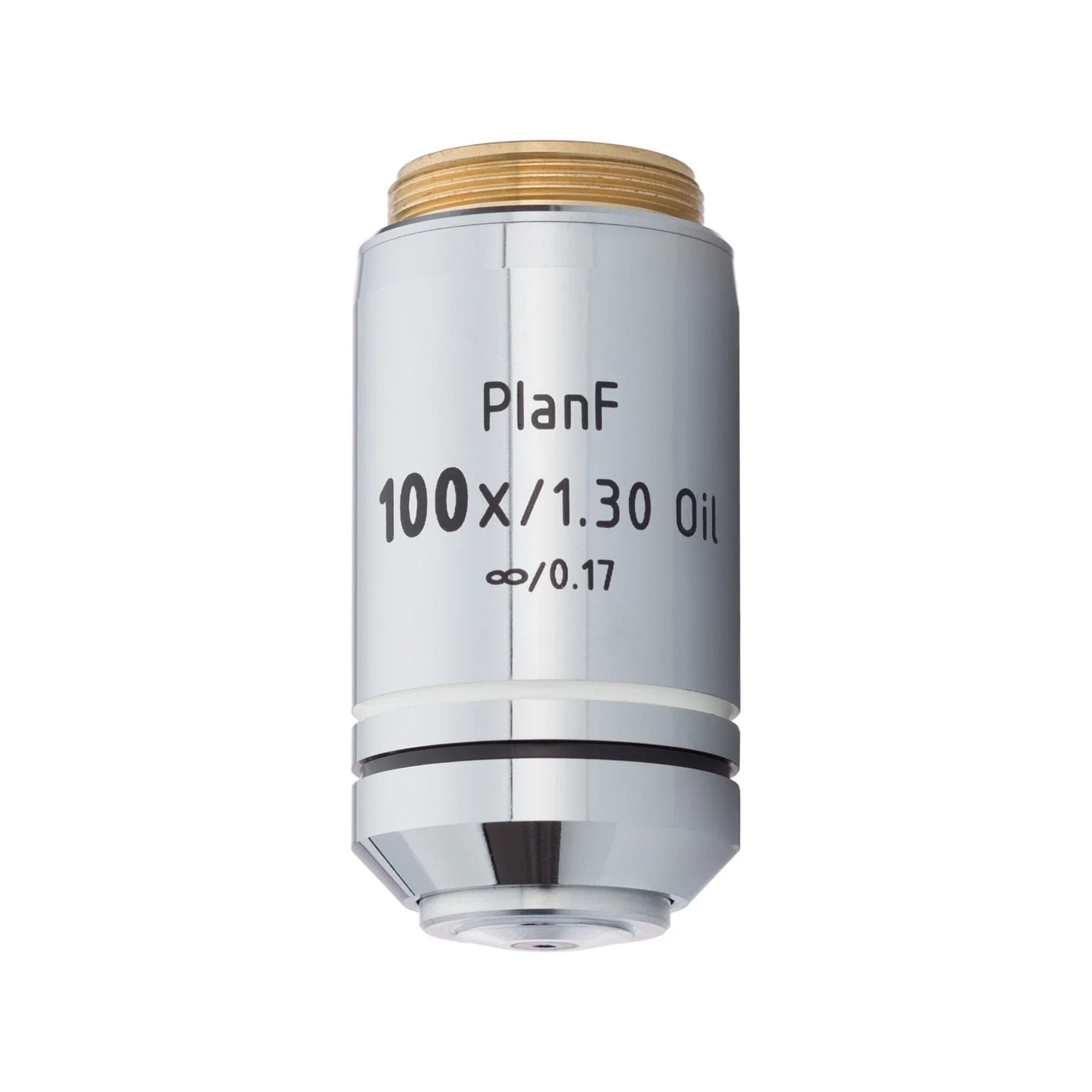

AmScope PF100X-INF Infinity Plan Fluor Biological Objective Lense with 100X Magnification

Product image 1

AmScope PF100X-INF Infinity Plan Fluor Biological Objective Lense with 100X Magnification

This is a 100X plan-fluor objective lens for high-resolution biological and fluorescence applications. Semi-apochromatic optical corrections improve resolution and color accuracy by realigning blue, green, and red wavelengths. Plan field corrections further improve image quality by providing edge-to-edge sharpness. Along with improvements in resolution, the optics provide better transmittance in the ultraviolet and near-infrared bands for use in fluorescence microscopy.

The lens is designed for use with AmScope upright, infinity-corrected microscopes, as well as other microscopes using RMS mounts and 45mm parfocal distance. Due to the short working distance, the lens features a spring-loaded nosecone to prevent damage to the lens and specimen.

Compatibility
Optical System Infinite
Reference Focal Length 180mm
Mounting Thread RMS 20.32mm
Parfocal Distance 45mm
Lens Specifications
Magnification 100X
Numerical Aperture 1.3
Corrections Plan, semi-apochromatic
Cover-glass Thickness 0.17
Nosecone Spring
Immersion Medium Oil
Working Distance 0.13mm
$296.80

Original: $847.99

-65%
AmScope PF100X-INF Infinity Plan Fluor Biological Objective Lense with 100X Magnification

$847.99

$296.80

Product Information

Shipping & Returns

Description

This is a 100X plan-fluor objective lens for high-resolution biological and fluorescence applications. Semi-apochromatic optical corrections improve resolution and color accuracy by realigning blue, green, and red wavelengths. Plan field corrections further improve image quality by providing edge-to-edge sharpness. Along with improvements in resolution, the optics provide better transmittance in the ultraviolet and near-infrared bands for use in fluorescence microscopy.

The lens is designed for use with AmScope upright, infinity-corrected microscopes, as well as other microscopes using RMS mounts and 45mm parfocal distance. Due to the short working distance, the lens features a spring-loaded nosecone to prevent damage to the lens and specimen.

Compatibility
Optical System Infinite
Reference Focal Length 180mm
Mounting Thread RMS 20.32mm
Parfocal Distance 45mm
Lens Specifications
Magnification 100X
Numerical Aperture 1.3
Corrections Plan, semi-apochromatic
Cover-glass Thickness 0.17
Nosecone Spring
Immersion Medium Oil
Working Distance 0.13mm
