AmScope PA10X-INF-V300 Infinity Plan Achromatic Biological Objective Lense with 10X Magnification

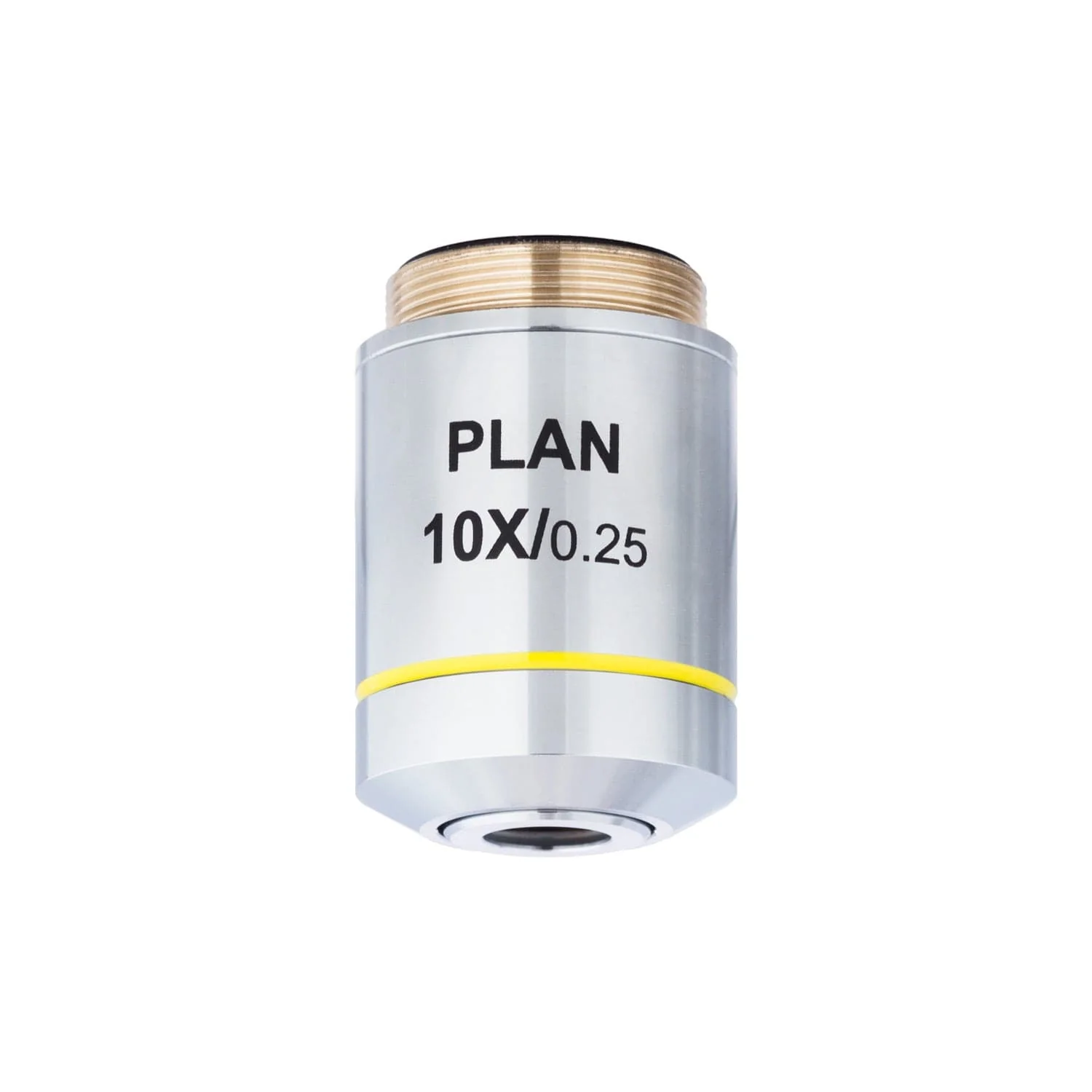

Product image 1

AmScope PA10X-INF-V300 Infinity Plan Achromatic Biological Objective Lense with 10X Magnification

This is a 10X plan-achromatic objective lens for certain infinity-corrected microscopes. Intended primarily for biological applications, it is designed to work with infinity-corrected microscopes using RMS mounting thread 45mm parfocal distance. Achromatic correction provides improved color accuracy and resolution, and plan field correction improves flatness for edge-to-edge sharpness.

Compatibility
Optical System Infinite
Reference Focal Length 180mm
Mounting Thread RMS 20.32mm
Parfocal Distance 45mm
Lens Specifications
Magnification 10X
Numerical Aperture 0.25
Corrections Plan-achromatic
Cover-glass Thickness —
Nosecone Fixed
Immersion Medium None
Working Distance 14.86mm
Exit Pupil 10.25mm
$26.95

Original: $76.99

-65%
AmScope PA10X-INF-V300 Infinity Plan Achromatic Biological Objective Lense with 10X Magnification—

$76.99

$26.95

Product Information

Shipping & Returns

Description

This is a 10X plan-achromatic objective lens for certain infinity-corrected microscopes. Intended primarily for biological applications, it is designed to work with infinity-corrected microscopes using RMS mounting thread 45mm parfocal distance. Achromatic correction provides improved color accuracy and resolution, and plan field correction improves flatness for edge-to-edge sharpness.

Compatibility
Optical System Infinite
Reference Focal Length 180mm
Mounting Thread RMS 20.32mm
Parfocal Distance 45mm
Lens Specifications
Magnification 10X
Numerical Aperture 0.25
Corrections Plan-achromatic
Cover-glass Thickness —
Nosecone Fixed
Immersion Medium None
Working Distance 14.86mm
Exit Pupil 10.25mm
