AmScope MW1000 Digital Enabled Camera with Computer Connected USB 2.0 10MP using a C-Mount

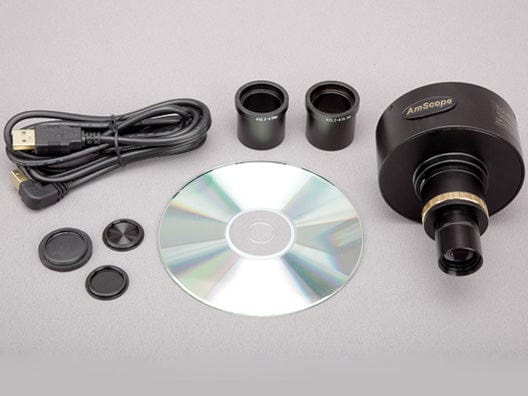

Product image 1

AmScope MW1000 Digital Enabled Camera with Computer Connected USB 2.0 10MP using a C-Mount

This 10MP digital camera for microscopes is designed to capture still images, as well as stream and record live video on Windows, Mac, and Linux computers. The user-friendly, stand-alone software for Windows 8.1/10/11 offers advanced features, including stitching, EDF (Extended Depth of Focus), video-recording, and measurement functions. It allows you to make notes, shapes, watermarks, and precise measurements with ease. Preview and capture resolutions can be set independently, allowing you to simultaneously view high-speed, low-resolution live video, while capturing higher-resolution images or video. The software for Linux and Mac allow you to capture still images and record video, as well as control color and exposure.

Designed using the C-mount standard, the camera with the included focusable reduction lens and two sizing-adapters can fit 23mm, 30mm, and 30.5mm photo ports and ocular ports. The reduction lens increases the field-of-view to better match what's seen through the eyepieces. Using a standard USB 2.0 connection, the camera is easy to install. Drawing power from the USB connection, no additional connections are needed.

Sensor

Sensor Sensor Type Transfer Method Binning Sensitivity
?
Aptina MT9J001 Color CMOS Electronic Rolling Shutter 1x1, 2x2, 4x4 0.31V/lux-sec
Optical Format Sensor Size Pixels Pixel Size Aspect Ratio
1/2.3" 6.4mm x 4.6mm 10M 1.67µm x 1.67µm 4:3

Camera

Spectral Range
(IR Cut Filter)		 Frame Rate(s)
(Maximum)		 Exposure Time Connectivity
380nm - 650nm 27fps@872x654
8fps@1744x1308
1.9fps@3584x2748		 0.4ms - 2s USB 2.0
Lens-mount Compensating Lens Power Compatibility
C-mount 0.5X, focusable 5V over USB Windows (32/64 bit) 8.1/10/11, Mac OSX, Linux

Software

OS Requirements Windows (32/64 bit) 8.1/10/11, Mac OS 10.8+, Linux kernel 3.13+
Hardware Requirements Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB3.0 port for maximum speed
Features
Windows Version
Live video preview
Captures still images and video
Time-lapse capture
Exposure and white-balance controls
Dark-field correction
Digital binning
Image processing
Measurement tools, including lines, arcs, polygons
Segmentation and counting tools
Image-stitching, extended depth-of-field, HDR
Fluorescence color-mapping
Mac/Linux Versions
Live video preview
Captures still images and video
Exposure and white-balance controls
Packing List:
  • 10MP digital camera
  • 0.5X reduction lens
  • 6' (1.8m) USB cable
  • 30mm and 30.5mm adapters
    • $52.50

    Original: $149.99

    -65%
    AmScope MW1000 Digital Enabled Camera with Computer Connected USB 2.0 10MP using a C-Mount—

    $149.99

    $52.50

    Product Information

    Shipping & Returns

    Description

    This 10MP digital camera for microscopes is designed to capture still images, as well as stream and record live video on Windows, Mac, and Linux computers. The user-friendly, stand-alone software for Windows 8.1/10/11 offers advanced features, including stitching, EDF (Extended Depth of Focus), video-recording, and measurement functions. It allows you to make notes, shapes, watermarks, and precise measurements with ease. Preview and capture resolutions can be set independently, allowing you to simultaneously view high-speed, low-resolution live video, while capturing higher-resolution images or video. The software for Linux and Mac allow you to capture still images and record video, as well as control color and exposure.

    Designed using the C-mount standard, the camera with the included focusable reduction lens and two sizing-adapters can fit 23mm, 30mm, and 30.5mm photo ports and ocular ports. The reduction lens increases the field-of-view to better match what's seen through the eyepieces. Using a standard USB 2.0 connection, the camera is easy to install. Drawing power from the USB connection, no additional connections are needed.

    Sensor

    Sensor Sensor Type Transfer Method Binning Sensitivity
    ?
    Aptina MT9J001 Color CMOS Electronic Rolling Shutter 1x1, 2x2, 4x4 0.31V/lux-sec
    Optical Format Sensor Size Pixels Pixel Size Aspect Ratio
    1/2.3" 6.4mm x 4.6mm 10M 1.67µm x 1.67µm 4:3

    Camera

    Spectral Range
    (IR Cut Filter)    		 Frame Rate(s)
    (Maximum)    		 Exposure Time Connectivity
    380nm - 650nm 27fps@872x654
    8fps@1744x1308
    1.9fps@3584x2748    		 0.4ms - 2s USB 2.0
    Lens-mount Compensating Lens Power Compatibility
    C-mount 0.5X, focusable 5V over USB Windows (32/64 bit) 8.1/10/11, Mac OSX, Linux

    Software

    OS Requirements Windows (32/64 bit) 8.1/10/11, Mac OS 10.8+, Linux kernel 3.13+
    Hardware Requirements Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB3.0 port for maximum speed
    Features
    Windows Version
    Live video preview
    Captures still images and video
    Time-lapse capture
    Exposure and white-balance controls
    Dark-field correction
    Digital binning
    Image processing
    Measurement tools, including lines, arcs, polygons
    Segmentation and counting tools
    Image-stitching, extended depth-of-field, HDR
    Fluorescence color-mapping
    Mac/Linux Versions
    Live video preview
    Captures still images and video
    Exposure and white-balance controls
    Packing List:
  • 10MP digital camera
  • 0.5X reduction lens
  • 6' (1.8m) USB cable
  • 30mm and 30.5mm adapters
