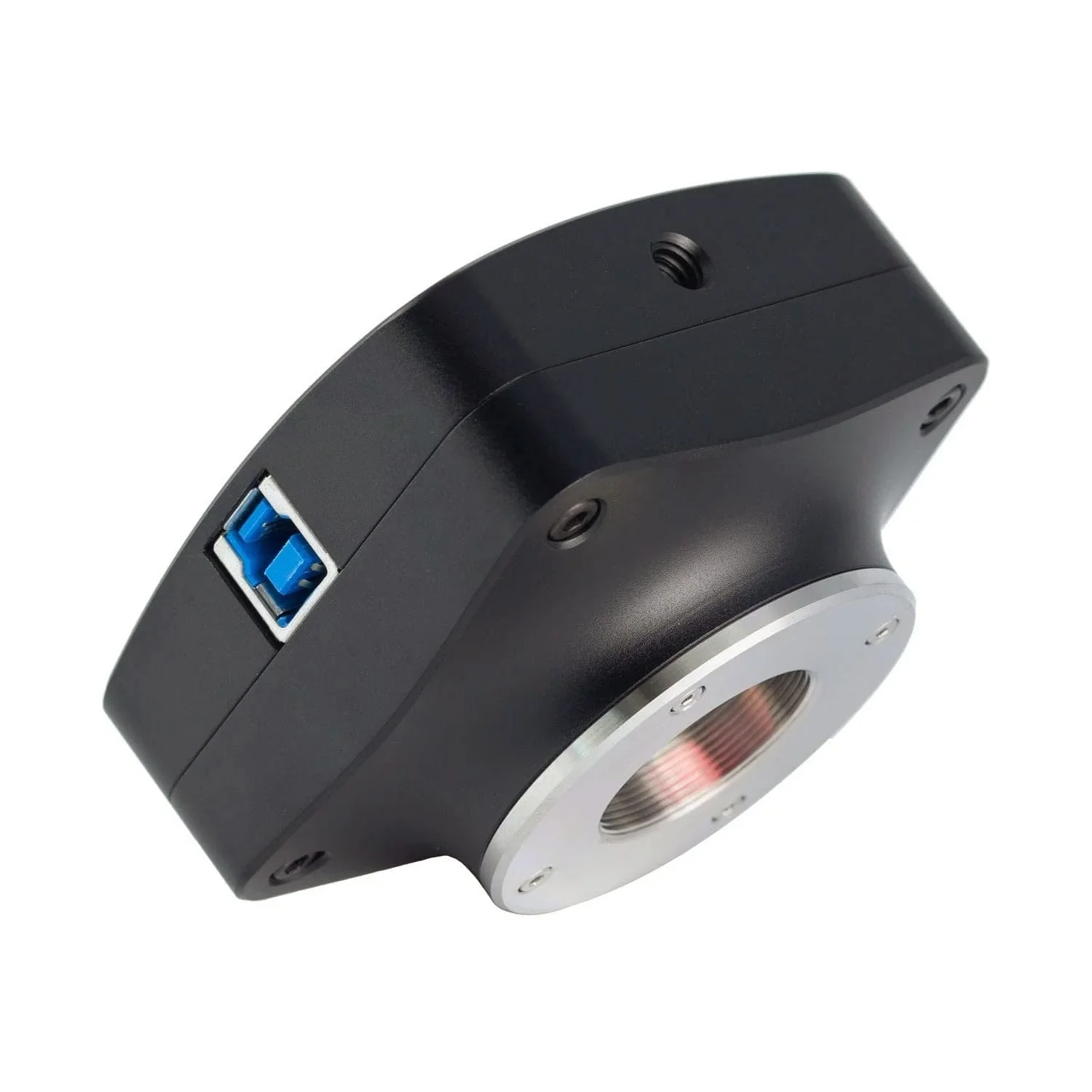

AmScope MU833-BI 8.3MP Ultra-High Sensitivity Microscope Camera, USB 3.0

Product image 1
Product image 2

AmScope MU833-BI 8.3MP Ultra-High Sensitivity Microscope Camera, USB 3.0

The MU833-BI offers high performance with low-light applications thanks to its unprecedentedly high sensitivity. Using Sony’s STARVIS 2 technology, the camera’s sensor has superior light absorption and dynamic range. This is ideal for fluorescence microscopy working in the visible emission spectrum, as well as darkfield and other low emission applications.

C-Mount

The camera uses a standard C-mount lens interface which works with a wide range of microscopes and lenses. It can be mounted directly to C-mount photo ports, or coupled with a C-mount reduction lens for use with 23mm or larger ocular tubes.

Ultimate Low-Light Performance

Using Sony’s 2nd generation STARVIS technology, the camera’s back-illuminated CMOS sensor is capable of capturing detail with limited illumination, making it an excellent option for use with inconsistent lighting or low-emission applications such as fluorescence and darkfield. These back-illuminated sensors have shown remarkable flexibility and a superior ability to boost the signal with limited noise which is why they are the go-to sensors for astronomy and surveillance.



Specifications

Sensor Specifications
Model IMX585 (color)
Sensor Type BSI CMOS
Sensor Optical Format 1/1.2"
Active Pixels 8.3M (3840 x 2160)
Pixel Size 2.9µm x 2.9µm
Active Sensor Area 11.14mm x 6.26mm
Shutter electronic rolling shutter
Sensitivity 5970mV @ 1/30s (f/5.6)
Spectral Response 380-650nm with IR-cut filter
Other Camera Specifications
Video Maximum Frame Rate 45 @ 3840x2160
70fps @ 1920x1080
Lens-mount C-mount
Power 5VDC over USB

Contents

  • One camera
  • One USB 3.0 cable
  • software

*Sony and STARVIS are trademarks of Sony Corporation.

$262.50

Original: $749.99

-65%
AmScope MU833-BI 8.3MP Ultra-High Sensitivity Microscope Camera, USB 3.0

$749.99

$262.50

Product Information

Shipping & Returns

Description

The MU833-BI offers high performance with low-light applications thanks to its unprecedentedly high sensitivity. Using Sony’s STARVIS 2 technology, the camera’s sensor has superior light absorption and dynamic range. This is ideal for fluorescence microscopy working in the visible emission spectrum, as well as darkfield and other low emission applications.

C-Mount

The camera uses a standard C-mount lens interface which works with a wide range of microscopes and lenses. It can be mounted directly to C-mount photo ports, or coupled with a C-mount reduction lens for use with 23mm or larger ocular tubes.

Ultimate Low-Light Performance

Using Sony’s 2nd generation STARVIS technology, the camera’s back-illuminated CMOS sensor is capable of capturing detail with limited illumination, making it an excellent option for use with inconsistent lighting or low-emission applications such as fluorescence and darkfield. These back-illuminated sensors have shown remarkable flexibility and a superior ability to boost the signal with limited noise which is why they are the go-to sensors for astronomy and surveillance.



Specifications

Sensor Specifications
Model IMX585 (color)
Sensor Type BSI CMOS
Sensor Optical Format 1/1.2"
Active Pixels 8.3M (3840 x 2160)
Pixel Size 2.9µm x 2.9µm
Active Sensor Area 11.14mm x 6.26mm
Shutter electronic rolling shutter
Sensitivity 5970mV @ 1/30s (f/5.6)
Spectral Response 380-650nm with IR-cut filter
Other Camera Specifications
Video Maximum Frame Rate 45 @ 3840x2160
70fps @ 1920x1080
Lens-mount C-mount
Power 5VDC over USB

Contents

  • One camera
  • One USB 3.0 cable
  • software

*Sony and STARVIS are trademarks of Sony Corporation.
