AmScope MU500 Digital Enabled Camera with Computer Connected USB 2.0 Color CMOS 5MP using a C-Mount

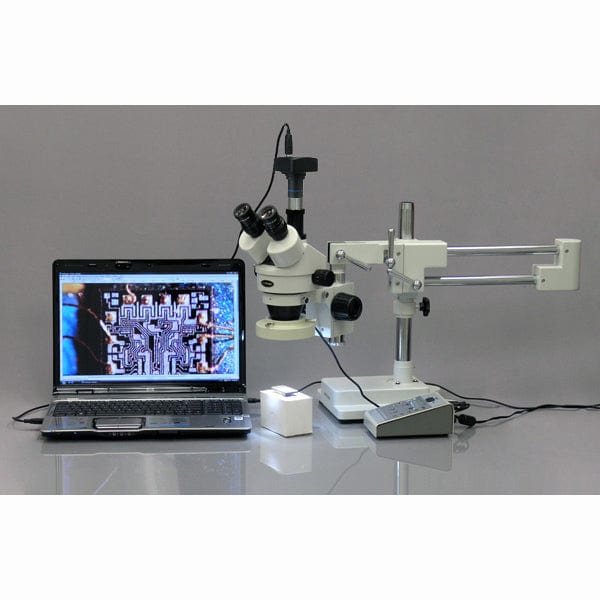

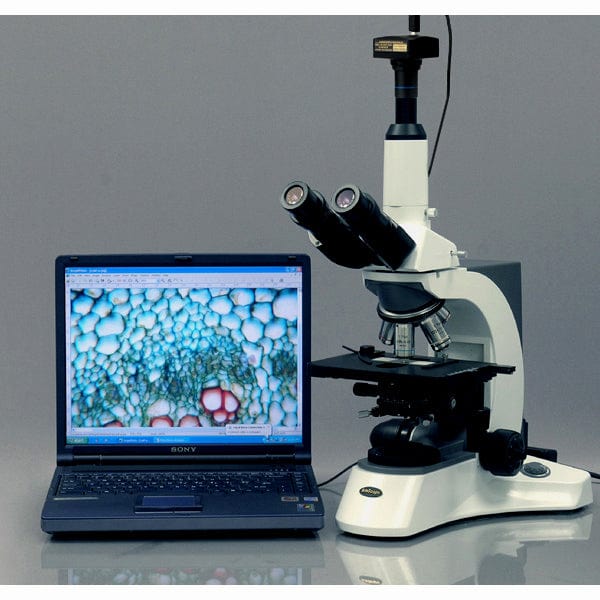

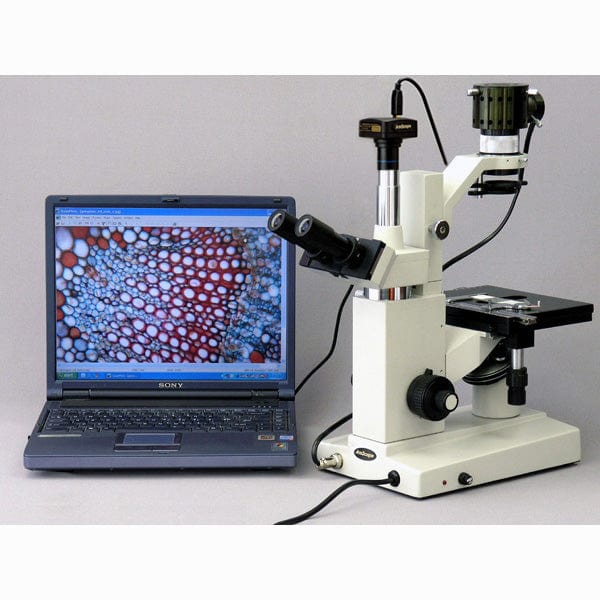

This 5MP digital camera for microscopes is designed to capture still images, as well as stream and record live video on Windows, Mac, and Linux computers. The user-friendly, stand-alone software for Windows 8.1/10/11 offers advanced features, including stitching, EDF (Extended Depth of Focus), video-recording, and measurement functions. It allows you to make notes, shapes, watermarks, and precise measurements with ease. Preview and capture resolutions can be set independently, allowing you to simultaneously view high-speed while capturing higher-resolution images or video. The software for Linux and Mac allow you to capture still images and record video, as well as control color and exposure.

Designed using the C-mount standard, the camera with the included reduction lens and two sizing-adapters can fit 23mm, 30mm, and 30.5mm photo ports and ocular ports. The reduction lens increases the field-of-view to better match what's seen through the eyepieces. Using a standard USB 2.0 connection, the camera is easy to install. Drawing power from the USB connection, no additional connections are needed.

Camera Specifications:

• Sensor: Aptina MT9P001 CMOS (color)
• Sensor Size: 1/2.5" (5.70mm(H) x 4.28mm(V), diagonal 7.13mm)
• Resolution: 2592x1944 (approx.5,040,000 pixels)
• Reduction Lens: 0.5X
• Pixel Size: 2.2µm x 2.2µm
• G Sensitivity: 0.53v / lux-sec (550nm)
• Frame Rate: 60fps @640x480, 18fps @1280x960, 5fps @2592x1944
• Exposure: 0.21~2000ms, ROI Auto & Manual
• Scan Mode: Progressive
• Dynamic Range: 66.5dB
• A/D Converter: 12-bit Parallel, 8-bit R.G.B to computer
• SN Ratio: 40.5dB
• Spectral Range: 380-650nm (with IR-filter)
• Binning: 1x1, 2x2, 4x4
• White balance: ROI White Balance/ Manual Temp-Tint Adjustment
• Color Rendering Technique: Ultra Fine Color Engine
• Capture/Control API: Native C/C++, C#, Directshow, Twain, Labview
• Recording System: Still Picture and Movie
• Cooling System: Natural
• Operating Temperature: -10°C~50°C
• Storage Temperature: -20°C~60°C
• Operating Humidity: 30~80%RH
• Storage Humidity: 10~60%RH
• Power Supply: DC 5V over USB Port

Software Features:

• Operating System: Windows 8.1/10/11 (32 & 64 bit), Mac OS X, Linux
• PC Requirements: CPU equals to Intel Core2 2.8GHz or higher, Memory: 2GB or more, USB2.0 port
• Advanced software for Windows:
  - offers Stitching, EDF, video recording and measurement functions
  - conducts measurements for lengths, angles, arcs, areas and etc.
  - saves still images in BMP, TIFF, JPG, PICT, PTL or other formats
  - edit and process microscopy images
  More features: add layers, watermarks, mosaics, tiles; adjust color balance, exposure, saturation, contrast, orientation; change resolution, histogram, granulation, diffusion; transform images via edge detection, digital image warping; conducts measurements for single, parallel or perpendicular lines and rectangular, elliptical and irregular areas; adds notes, measurements, text, arrows, labels, and etc. using customizable text with different sizes and colors; conducts measurements in microns, millimeters, centimeters, inches, feet, and etc. under any magnification powers with desired tolerances
• Life-time free software upgrades

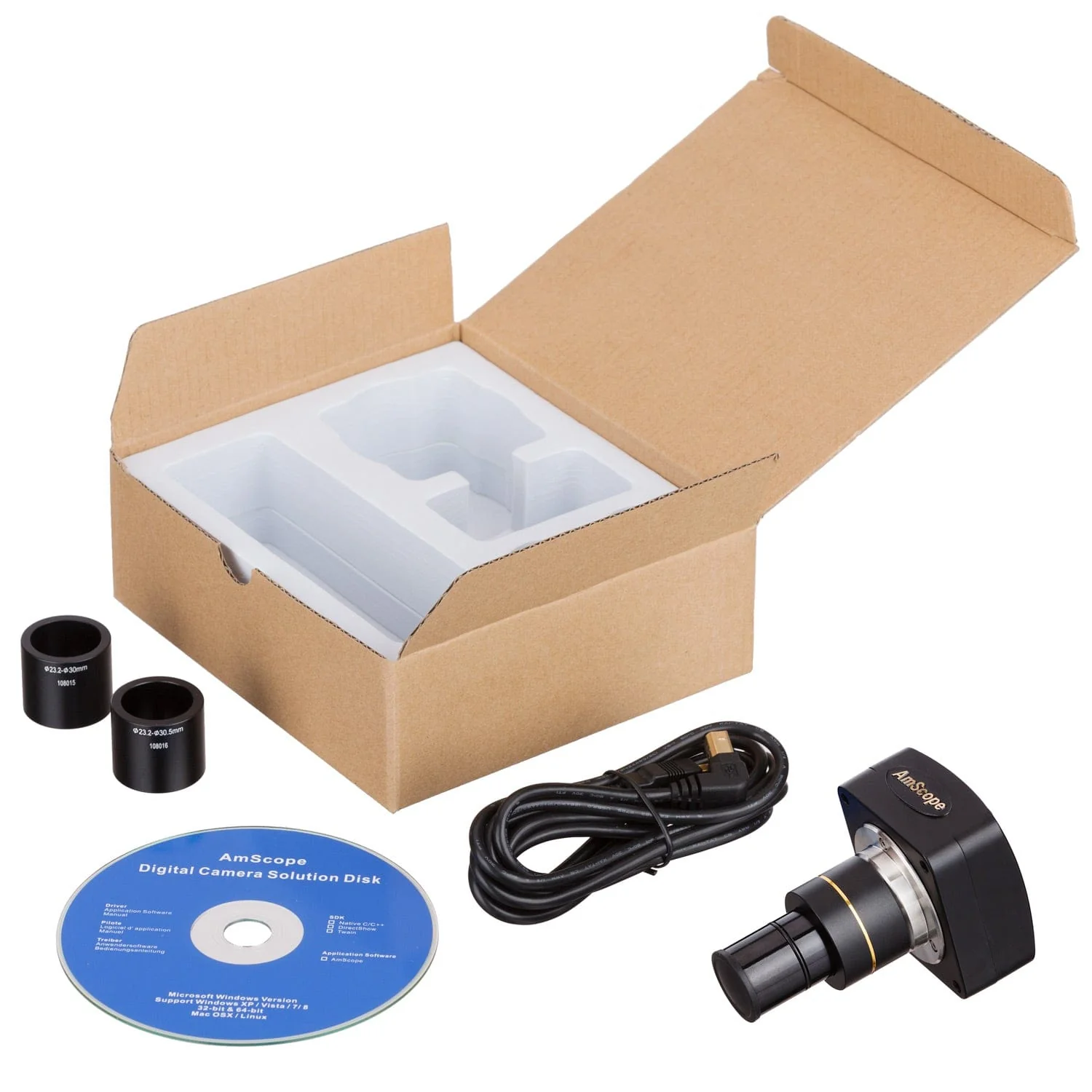

Packing List:

• 5MP digital camera
• 0.5X reduction lens
• 6' (1.8m) USB cable
• 30mm and 30.5mm adapters
• CD with software and user's instructions
• Shipping weight: 2 lbs
