AmScope MU313M-GS Digital Enabled Global Shutter Camera with Computer Connected USB 3.0 3.1MP using a C-Mount

This monochrome version of our 3.1-megapixel global-shutter camera provides better effective sensitivity by removing the color filter-array. The MU313M-GS uses Sony's cutting-edge 3.1-megapixel global-shutter CMOS sensor for high resolution with high quantum-efficiency. As well, larger well-capacity extends the dynamic-range for better capture of strong and weak emissions. The global shutter improves imaging of moving subjects through simultaneous pixel-capture, avoiding the focal-plane distortion seen in rolling-shutter sensors.

With software available for Windows, Mac, and Linux, this camera package is a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. Independent preview and capture resolutions allow you to view high-speed video while simultaneously capturing high-definition images. For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.

Sensor

Sensor	Sensor Type	Transfer Method	Binning	Sensitivity ?
Sony IMX265	Monochrome CMOS	Global Shutter	1x1	1146mv @ 1/30s
Optical Format	Sensor Size	Pixels	Pixel Size	Aspect Ratio
1/1.8"	7.07mm x 5.30mm 8.84mm diagonal	3.1M	3.45µm x 3.45µm	4:3

Camera

Spectral Range (IR Cut Filter)	Frame Rate(s) (Maximum)	Exposure Time	Connectivity
380nm - 650nm	53fps @ 2048x1536 85fps @ 1024x768	0.1ms - 15s	USB 3.0

Lens-mount	Compensating Lens	Power	Compatibility
C-mount	0.5X	5V over USB	Windows (32/64 bit) 8.1/10/11, Mac OSX, Linux

Software

OS Requirements	Windows (32/64 bit) 8.1/10/11, Mac OS 10.8+, Linux kernel 3.13+
Hardware Requirements	Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB3.0 port for maximum speed
Features	Windows Version Live video preview Captures still images and video Time-lapse capture Exposure and white-balance controls Dark-field correction Digital binning Image processing Measurement tools, including lines, arcs, polygons Segmentation and counting tools Image-stitching, extended depth-of-field, HDR Fluorescence color-mapping Mac/Linux Versions Live video preview Captures still images and video Exposure and white-balance controls

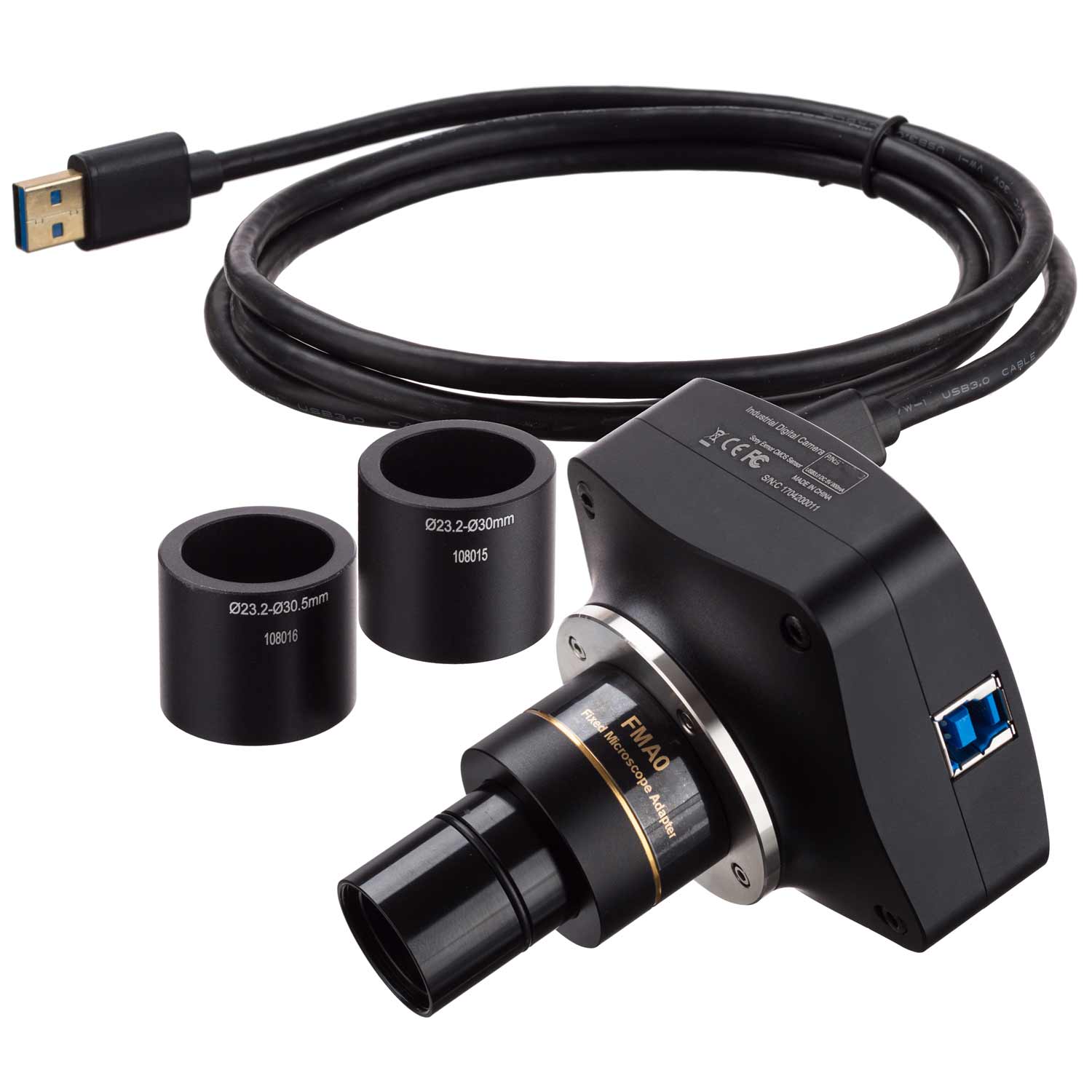

Contents:

One USB3.0 Digital Camera

One reduction lens

Two Sizing adapters

One 6' (1.8m) USB cable

One CD with software and instructions
