AmScope MA500-HS Digital Enabled Camera with Computer Connected USB 2.0 5MP using a C-Mount

The MA500-HS provides an economical solution for digital imaging with your microscope. You can view a live stream on your PC, and snap 5-megapixel photos and capture high-resolution videos.

The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. Independent preview and capture resolutions allow you to view high-speed video while simultaneously capturing high-definition images.

Sensor

Sensor	Sensor Type	Sensor Format	Pixels
Sony	CMOS	1/2.8"	5M (2560x1920)
Pixel Size	Shutter	Sensitivity ?	Saturation Signal
2.0µm x 2.0µm	Rolling Shutter	500mV @ 1/30s (f5.6)	880mV

Camera

Frame Rate(s)	Connectivity	Lens-mount
22fps@2560x1920	USB 2.0	C-mount
Compensating Lens	Exposure Time	Compatibility
0.37X (not included)		Windows (64 bit) 7/8/10

Software

OS Requirements	Windows (64 bit) 7/8/10
Hardware Requirements	Intel Core i5 or better(Quad or more Core), 8GB RAM, USB3.0 port for maximum speed
Features	Live video preview Captures still images and video Time-lapse capture Exposure and white-balance controls Image processing Measurement tools, including lines, arcs, polygons Image-stitching, extended depth-of-field, HDR

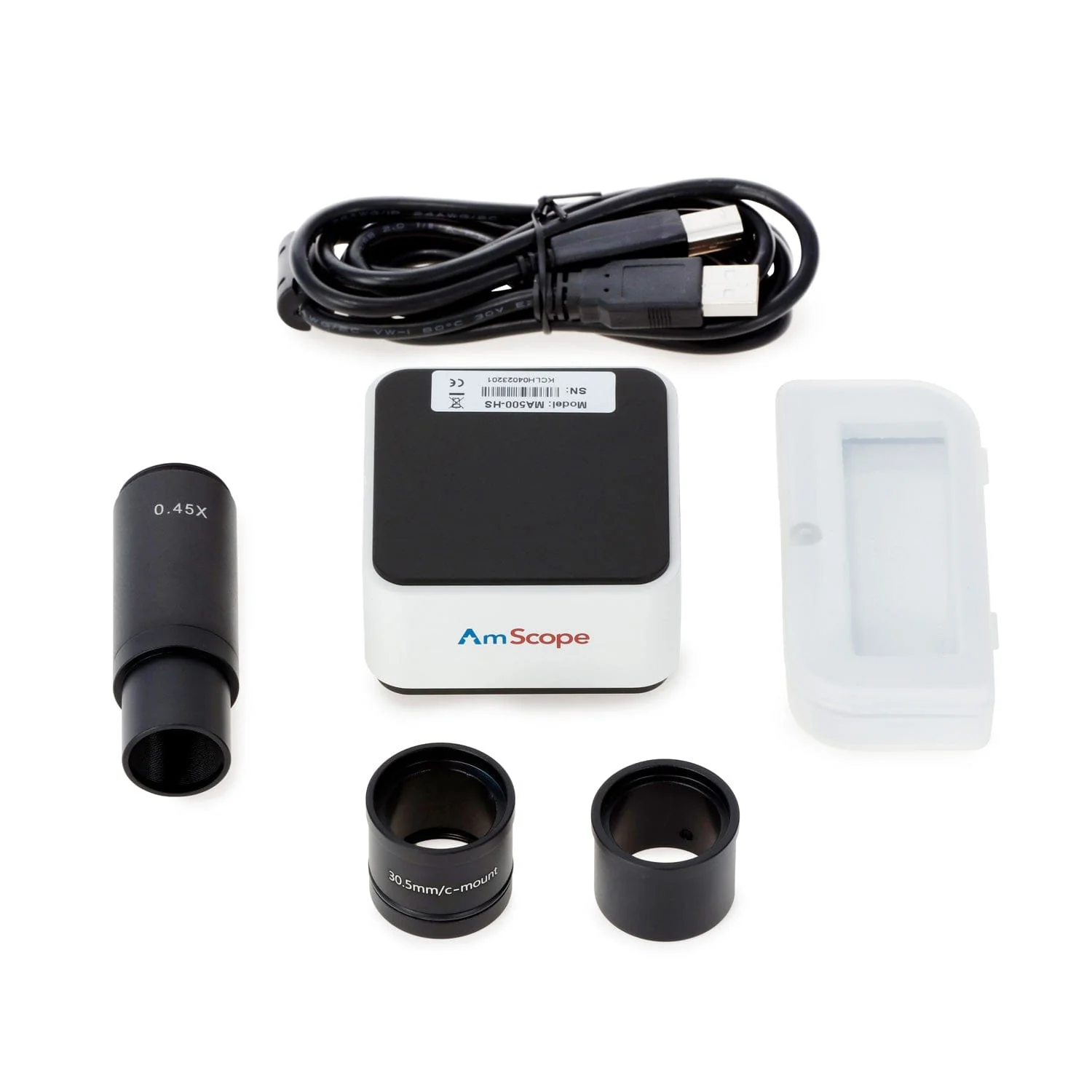

Contents:

• One Digital Camera
• One 6' (1.8m) USB Cable
• One 0.45X reduction lens
• Two sizing adapters
