AmScope IN400T Trinocular Biological Microscope with 600X Magnification and 30W Incandescent Light Source
The IN400T provides high-resolution optics in a stable, ergonomic design for observing cell cultures and other biological and chemical specimens. The inverted form accommodates larger specimen containers, with multiple specimen templates and mechanical stage controls to improve workflow. High-resolution optics and phase-contrast capability maximize contrast and clarity to ensure high quality images.
The infinity-corrected optical system eliminates optical errors when using filters and other in-line components, ensuring highly-precise images. Five brightfield objective lenses provide a wide magnification range from 40X to 600X, with plan-achromatic corrections for high resolution, accurate colors, and edge-to-edge sharpness. Additionally, three phase-ring equipped objective lenses can be used for phase-contrast observation.
The viewing head has a 45° incline and Siedentopf interpupillary adjustment for flexibility and comfort. The trinocular head provides a dedicated photo-port for mounting a microscopy camera for adding photo and video capture to the workflow.
The variable-intensity 30W halogen illumination system uses a fixed-height condenser with 72mm of working distance. A slide-in annulus board provides two centerable phase-contrast annuli, as well as an open setting which can be used with colored filters for band-isolation or color-correction.
This microscope operates on 90-240V wide-band voltage for use in multiple international regions.
Specifications
| Optical System | Infinity-corrected | ||||||||
| Head | Trinocular, 45° incline | ||||||||
| Interpupillary Adjustment | Siedentopf compensation-free gemel, 50mm-76mm | ||||||||
| Ocular Diameter | 30mm | ||||||||
| Eyepieces | 10X FN22mm plan wide-field | ||||||||
| Photo-port | Height-adjustable, 23mm tube | ||||||||
| Focusing System |
|
||||||||
| Stage | fixed-height | ||||||||
| Stage Dimensions | 160mm x 250mm |
||||||||
| Transmitted Illumination | 6V 30W halogen variable intensity centerable lamp |
||||||||
| Condenser | NA 0.3, iris diaphragm | ||||||||
| Condenser Working Distance | 72mm | ||||||||
| Phase Contrast Board | 3-position: 10X/20X, 40X, open | ||||||||
| Power | 90-240VAC 50/60Hz wide-band | ||||||||
Objective Lenses
| Magnification | Corrections | NA | Working Distance | Cover-glass Thickness |
|---|---|---|---|---|
| 4X | plan achromatic | 0.13 | 10.4mm | 1.5mm |
| 10X | plan achromatic | 0.25 | 7.30mm | 1.5mm |
| 20X | plan achromatic | 0.40 | 6.79mm | 1.5mm |
| 40X | plan achromatic | 0.60 | 3.08mm | 1.5mm |
| 60X | plan achromatic | 0.70 | 1.71mm | 1.5mm |
| 10X | phase-ring | 0.25 | 7.30mm | 1.5mm |
| 20X | phase-ring | 0.40 | 6.80mm | 1.5mm |
| 40X | phase-ring | 0.60 | 3.08mm | 1.5mm |
Magnification Chart
| Eyepiece | Objective | ||||
| 4X | 10X | 20X | 40X | 60X | |
| 10X | 40X | 100X | 200X | 400X | 600X |

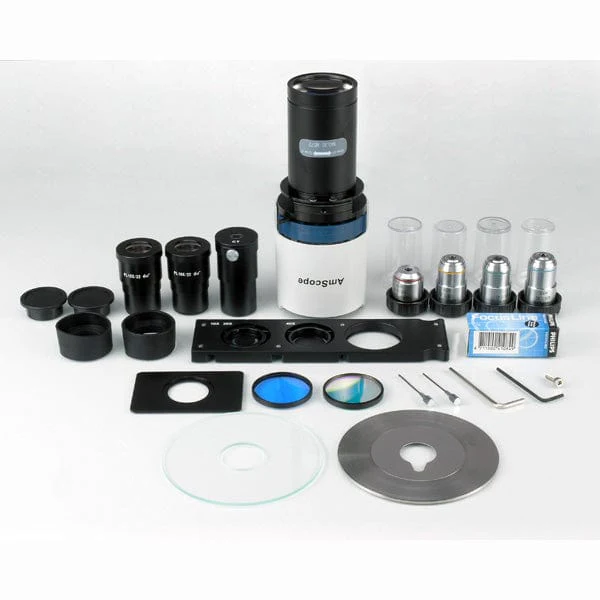

Packing List :
- One Inverted Microscope
- One photo port
- Five Long Working Distance Plan Objectives, 4X, 10X, 20X, 40X & 60X
- Three Long Working Distance Plan Phase Contrast Objectives, 10X, 20X & 40X
- One pair of PLAN WH10X Eyepieces
- One centering telescope
- One phase contrast board, 2 centering screws
- One metal stage plate
- One glass stage plate
- Specimen holder
- One light-source with integrated condenser
- One 30W halogen bulb
- One Dust Cover
- Color Filters
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The IN400T provides high-resolution optics in a stable, ergonomic design for observing cell cultures and other biological and chemical specimens. The inverted form accommodates larger specimen containers, with multiple specimen templates and mechanical stage controls to improve workflow. High-resolution optics and phase-contrast capability maximize contrast and clarity to ensure high quality images.
The infinity-corrected optical system eliminates optical errors when using filters and other in-line components, ensuring highly-precise images. Five brightfield objective lenses provide a wide magnification range from 40X to 600X, with plan-achromatic corrections for high resolution, accurate colors, and edge-to-edge sharpness. Additionally, three phase-ring equipped objective lenses can be used for phase-contrast observation.
The viewing head has a 45° incline and Siedentopf interpupillary adjustment for flexibility and comfort. The trinocular head provides a dedicated photo-port for mounting a microscopy camera for adding photo and video capture to the workflow.
The variable-intensity 30W halogen illumination system uses a fixed-height condenser with 72mm of working distance. A slide-in annulus board provides two centerable phase-contrast annuli, as well as an open setting which can be used with colored filters for band-isolation or color-correction.
This microscope operates on 90-240V wide-band voltage for use in multiple international regions.
Specifications
| Optical System | Infinity-corrected | ||||||||
| Head | Trinocular, 45° incline | ||||||||
| Interpupillary Adjustment | Siedentopf compensation-free gemel, 50mm-76mm | ||||||||
| Ocular Diameter | 30mm | ||||||||
| Eyepieces | 10X FN22mm plan wide-field | ||||||||
| Photo-port | Height-adjustable, 23mm tube | ||||||||
| Focusing System |
|
||||||||
| Stage | fixed-height | ||||||||
| Stage Dimensions | 160mm x 250mm |
||||||||
| Transmitted Illumination | 6V 30W halogen variable intensity centerable lamp |
||||||||
| Condenser | NA 0.3, iris diaphragm | ||||||||
| Condenser Working Distance | 72mm | ||||||||
| Phase Contrast Board | 3-position: 10X/20X, 40X, open | ||||||||
| Power | 90-240VAC 50/60Hz wide-band | ||||||||
Objective Lenses
| Magnification | Corrections | NA | Working Distance | Cover-glass Thickness |
|---|---|---|---|---|
| 4X | plan achromatic | 0.13 | 10.4mm | 1.5mm |
| 10X | plan achromatic | 0.25 | 7.30mm | 1.5mm |
| 20X | plan achromatic | 0.40 | 6.79mm | 1.5mm |
| 40X | plan achromatic | 0.60 | 3.08mm | 1.5mm |
| 60X | plan achromatic | 0.70 | 1.71mm | 1.5mm |
| 10X | phase-ring | 0.25 | 7.30mm | 1.5mm |
| 20X | phase-ring | 0.40 | 6.80mm | 1.5mm |
| 40X | phase-ring | 0.60 | 3.08mm | 1.5mm |
Magnification Chart
| Eyepiece | Objective | ||||
| 4X | 10X | 20X | 40X | 60X | |
| 10X | 40X | 100X | 200X | 400X | 600X |
Packing List :
- One Inverted Microscope
- One photo port
- Five Long Working Distance Plan Objectives, 4X, 10X, 20X, 40X & 60X
- Three Long Working Distance Plan Phase Contrast Objectives, 10X, 20X & 40X
- One pair of PLAN WH10X Eyepieces
- One centering telescope
- One phase contrast board, 2 centering screws
- One metal stage plate
- One glass stage plate
- Specimen holder
- One light-source with integrated condenser
- One 30W halogen bulb
- One Dust Cover
- Color Filters
