AmScope GM400-STAND-IF Track Stand and 76mm Collar Diameter

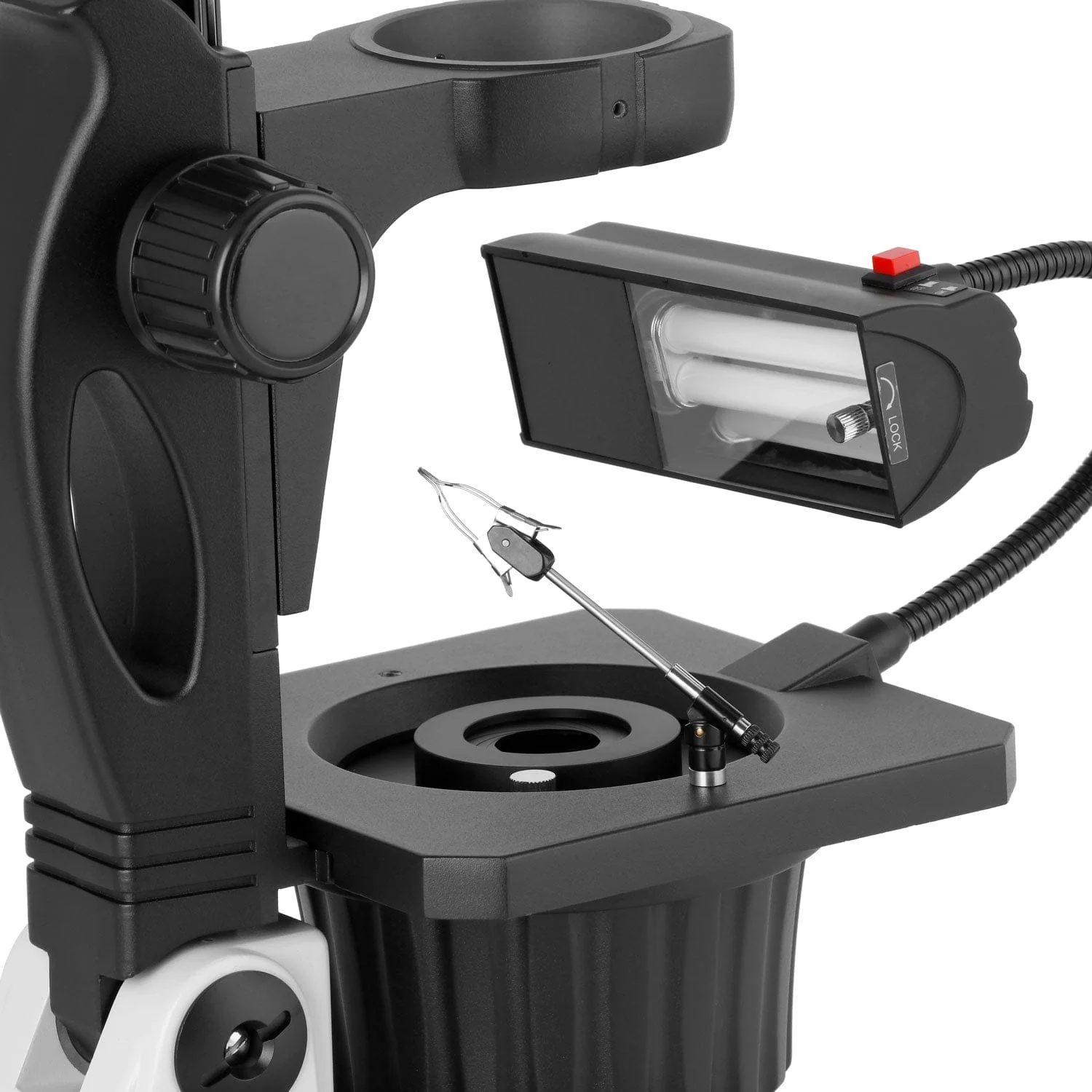

This is the jeweler’s stand from our GM400 series of gemology microscopes, compatible with stereo microscopes using 76mm mount including our SM, ZM, and SW heads. It is equipped with a gooseneck-mounted fluorescent lamp for grading and general work, and an incandescent sub-stage illuminator for viewing gemstones. The stand can be reclined up to 45°, and rotated 360°.
The sub-stage illuminator uses a 30W incandescent lamp for full spectrum coverage. The illuminator has a darkfield stop which can be moved in and out of place as needed, and an iris diaphragm for improved contrast.
Specifications
| Head Mount | 76mm ⌀ |
| Focus Range | 110mm |
| Reclining Angle | 0-45° |
| Reflected Illumination | 7W fluorescent, gooseneck mount |
| Transmitted Illumination | 6V 30W incandescent, darkfield stop and iris diaphragm |
| Power | 100-240VAC 50/60Hz |
