AmScope FK-EPI-LED-B Compound Microscopes

Product image 1
Product image 2
Product image 3

AmScope FK-EPI-LED-B Compound Microscopes

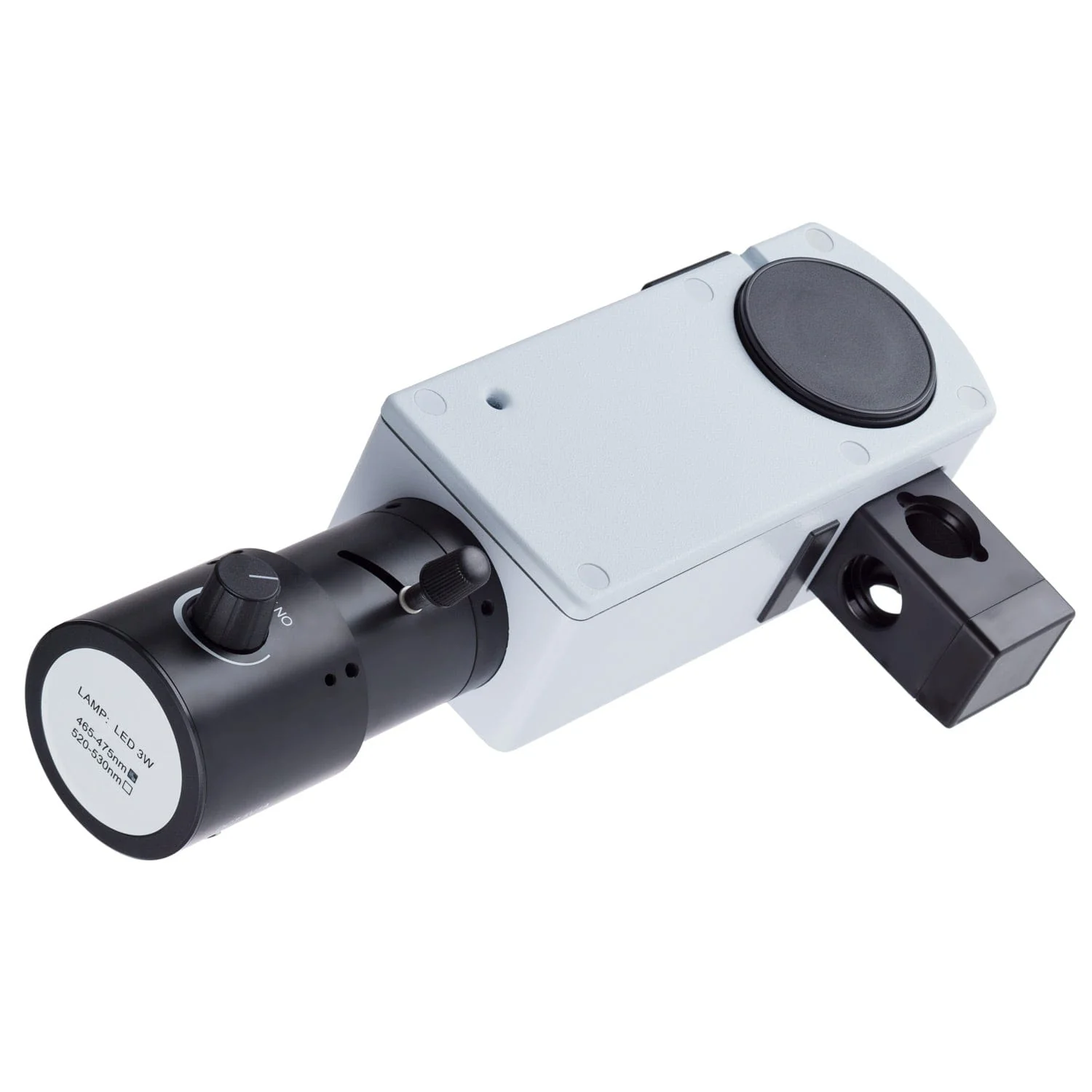

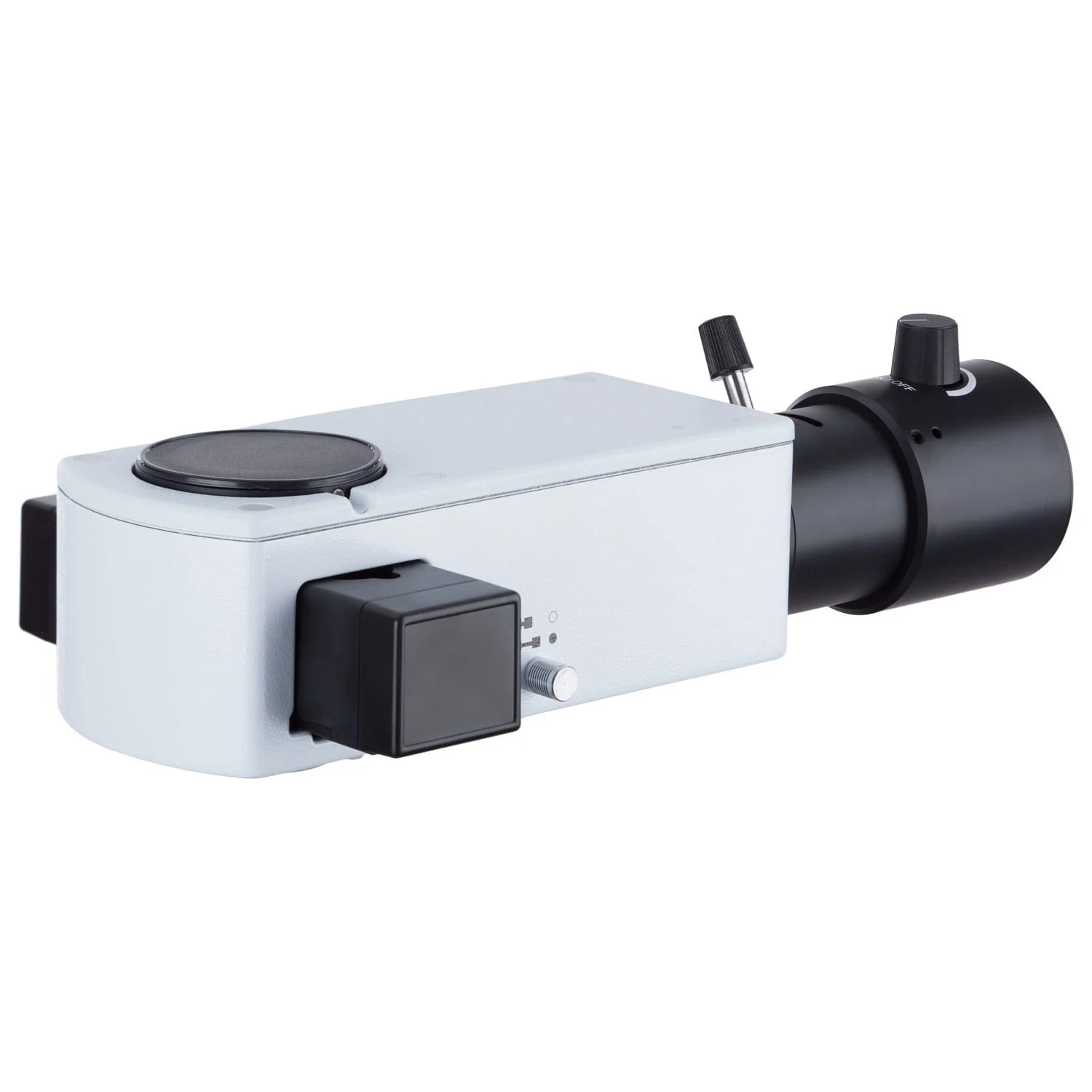

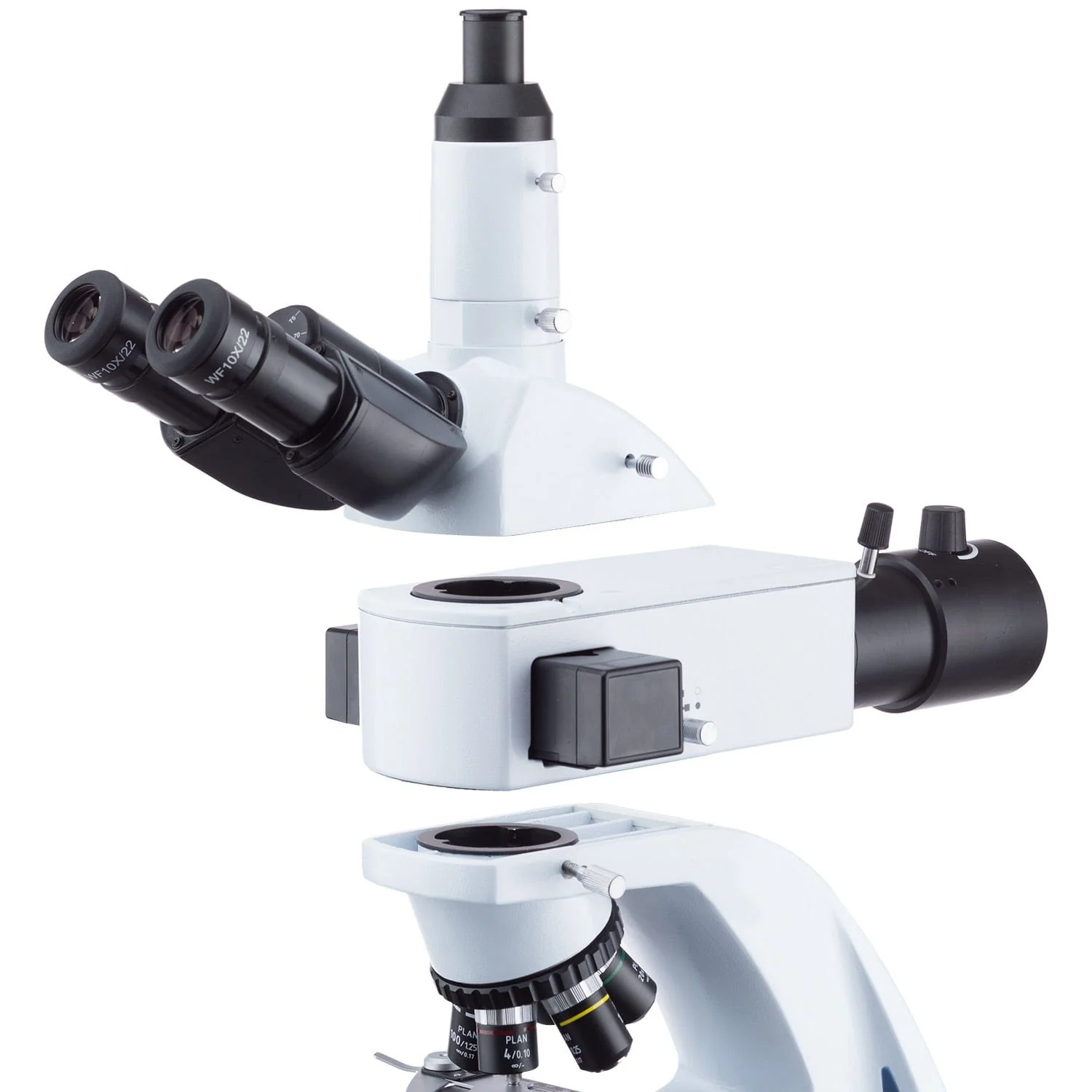

This is a blue-band LED epi-fluorescence assembly for our 670 series compound microscopes. The assembly uses a modular design, with separate lamps for different excitation bands. The use of dedicated lamps for specific bands allows for greater efficiency. The major benefit of the LED light-source is the elimination of warm-up and cool-down periods associated with arc lamps. The low power-consumption, and lack of ballasting provide much greater longevity, as well as a lower operating temperature.

The 3-slot filter-holder allows for the addition of optional filter blocks, including green and ultra-violet. Because of the modular design, the appropriate color-band should be selected for the intended use. The included blue-band LED and filter-block are ideally suited for stains or natural fluorophores which absorb blue light and emit light in the green to red bands.

Features & Specifications:

  • Cool LED light-source lasts longer and runs cooler
  • LED Output: 465-475nm
  • Filter Blocks: blue
  • Blue Filter Excitation: 460-490nm band-pass
  • Blue Filter Dichroic Mirror: 500nm
  • Blue Filter Emission: 520nm long-pass
  • Power Input: 100-240VAC 50/60Hz
  • Power Output: 7.5VDC, 1A
  • Contents:

  • One episcopic illuminator with 465-475nm LED
  • One power adapter
  • One hex wrench
  • $936.25

    Original: $2,674.99

    -65%
    AmScope FK-EPI-LED-B Compound Microscopes—

    $2,674.99

    $936.25

    Product Information

    Shipping & Returns

    Description

    This is a blue-band LED epi-fluorescence assembly for our 670 series compound microscopes. The assembly uses a modular design, with separate lamps for different excitation bands. The use of dedicated lamps for specific bands allows for greater efficiency. The major benefit of the LED light-source is the elimination of warm-up and cool-down periods associated with arc lamps. The low power-consumption, and lack of ballasting provide much greater longevity, as well as a lower operating temperature.

    The 3-slot filter-holder allows for the addition of optional filter blocks, including green and ultra-violet. Because of the modular design, the appropriate color-band should be selected for the intended use. The included blue-band LED and filter-block are ideally suited for stains or natural fluorophores which absorb blue light and emit light in the green to red bands.

    Features & Specifications:

  • Cool LED light-source lasts longer and runs cooler
  • LED Output: 465-475nm
  • Filter Blocks: blue
  • Blue Filter Excitation: 460-490nm band-pass
  • Blue Filter Dichroic Mirror: 500nm
  • Blue Filter Emission: 520nm long-pass
  • Power Input: 100-240VAC 50/60Hz
  • Power Output: 7.5VDC, 1A
  • Contents:

  • One episcopic illuminator with 465-475nm LED
  • One power adapter
  • One hex wrench
