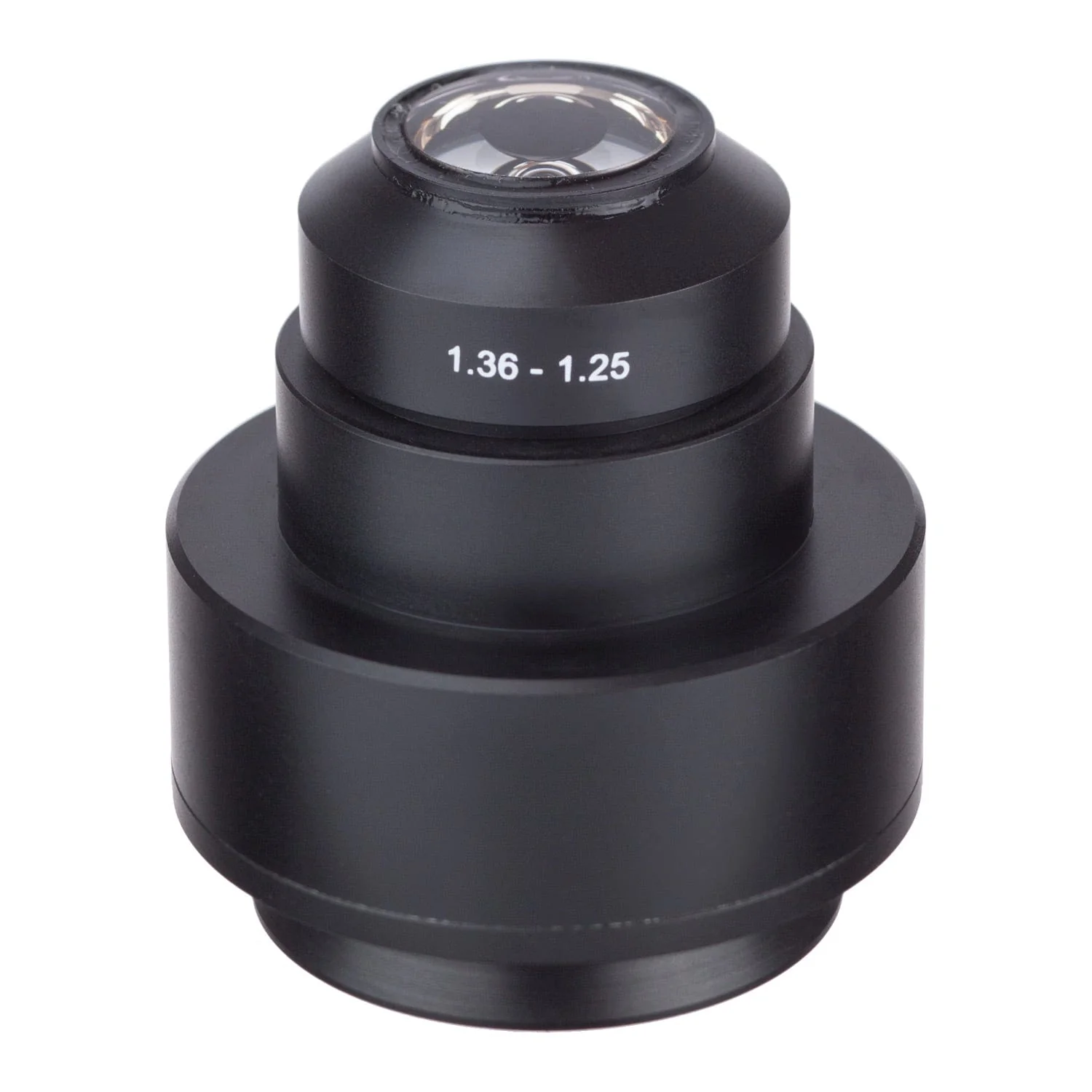

AmScope DK-OIL-670 Oil Immersion Darkfield Condenser for Compound Microscope with NA 1.25 to 1.36 and 670 Class

The darkfield condenser allows you to render detail in specimens that would otherwise be transparent. Using principles of light-diffraction to suppress field-illumination, the condenser illuminates edges of cells, microorganisms, and other objects. This is particularly useful for live blood analysis.

This darkfield condenser is designed for use with immersion oil. The 1.36 maximum numerical aperture will accommodate higher-magnification objective lenses with numerical apertures up to 1.25. However, it is recommended to use objective lenses with numerical apertures at or below 1.0 for true darkfield. Objective lenses designed for darkfield, such as those with iris-control like our PA100X-IRIS, are recommended for high magnifications. As well, magnifications of 10X and below may experience vignetting, in which case a dry condenser is preferable.

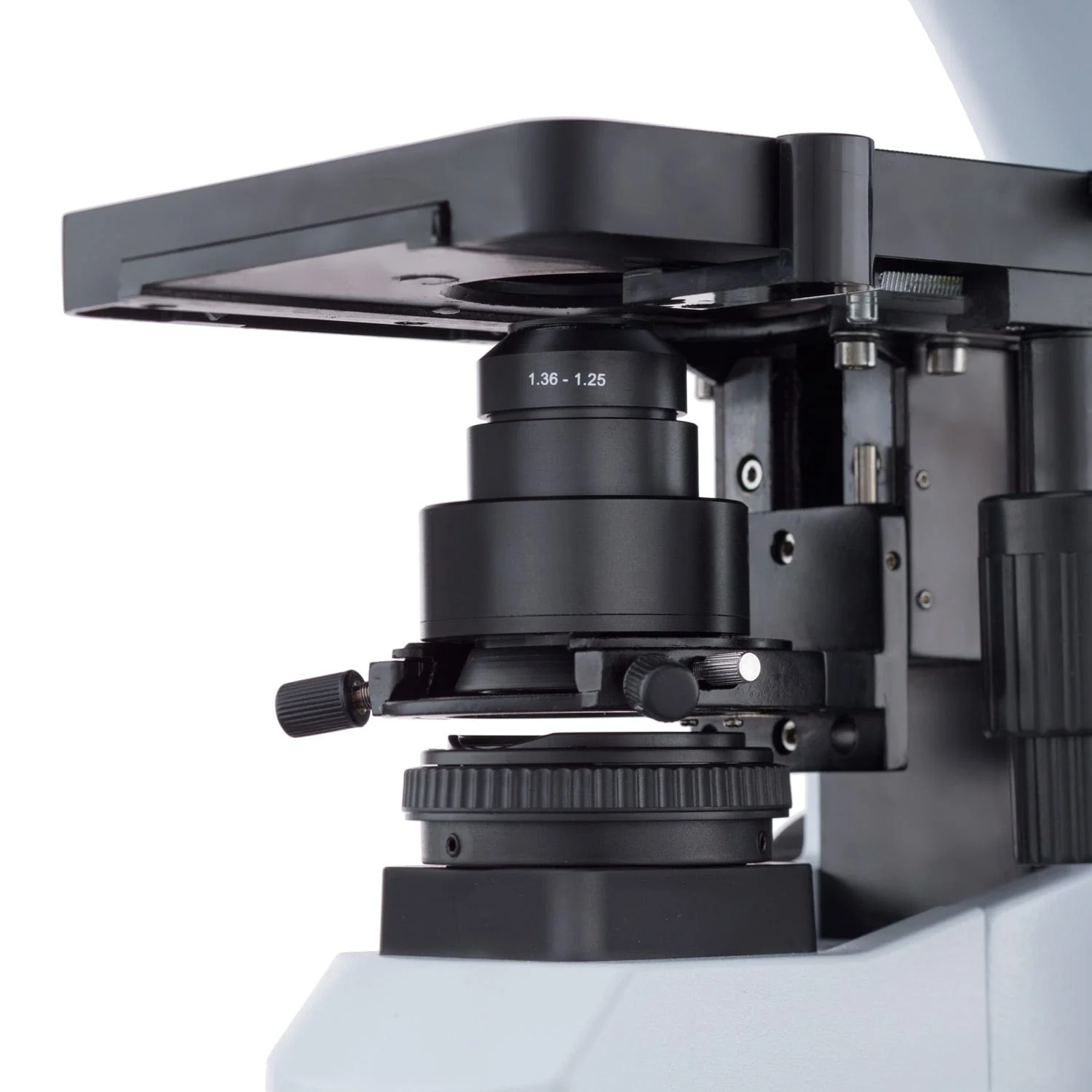

This condenser is designed to work with compound microscopes with a 37mm front-mount condenser holder. Compatible models include: T670, T670Q-PL, T750, FM820T
