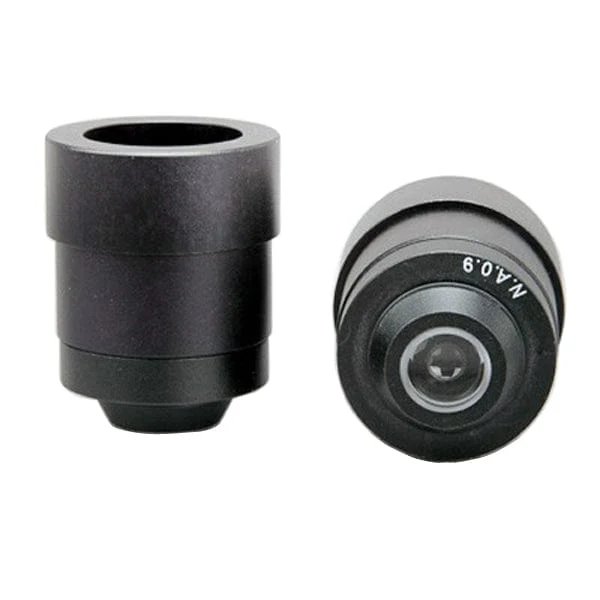

AmScope DK-DRY120 Dry Immersion Darkfield Condenser for Compound Microscope with NA 0.7 to 0.9 and 120 Class

The darkfield condenser allows you to render detail in specimens that would otherwise be transparent. Using principles of light-diffraction to suppress field-illumination, the condenser illuminates edges of cells, microorganisms, and other objects. This is particularly useful for live blood analysis.

This is a darkfield condenser designed for dry use with lower magnifications. The 0.9 maximum numerical aperture will accommodate lower-magnification objective lenses with numerical apertures up to 0.9. However, it is recommended to use objective lenses with numeical apertures below 0.7 for true darkfield. For magnifications above 40X, it is recommended to use the oil condenser.

This condenser is designed to work with compound microscopes with a 37mm bottom-mount condenser holder. Compatible models include: B020, B120, B360, M620, T120, T360. Note: the field lens for the transmitted light-source may need to be removed to change the condenser.
