AmScope CP480 Digital Enabled Tablet Camera with Tablet 8MP using a C-Mount
The CP480 combines a 4K (8MP) camera with a 13.3” high-definition screen to create a ready-to-go digital imaging system for microscopy. Like our HD200 and HD400 series multi-function cameras, the CP480 uses comprehensive built-in software for intuitive control of camera functions for capturing and processing photos and videos. Use the included mouse to navigate on-screen controls, or pair the CP480 with a computer using USB or wi-fi to make use of the expansive imaging tools included in our desktop software.
 |

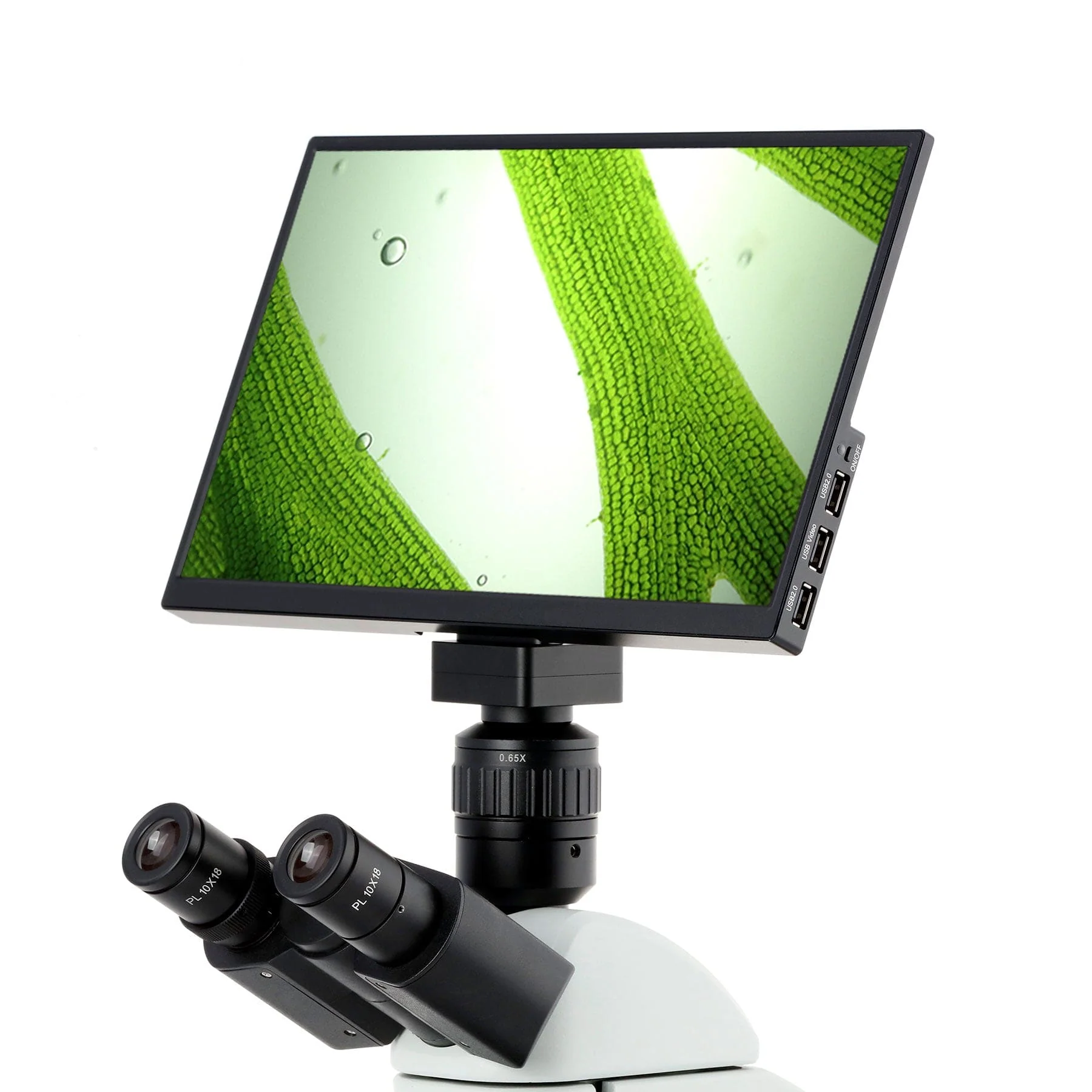

The CP480 can be used with a wide range of microscopes and video lenses. Setup is simple using the standard C-mount interface which allows the CP480 to attach directly to microscopes equipped with a C-mount photo port. To attach to an ocular port, simply use an optional reduction lens such as our RU050. The CP480 is also a perfect companion for our video inspection lenses including the H800 and H756 models. |
 |

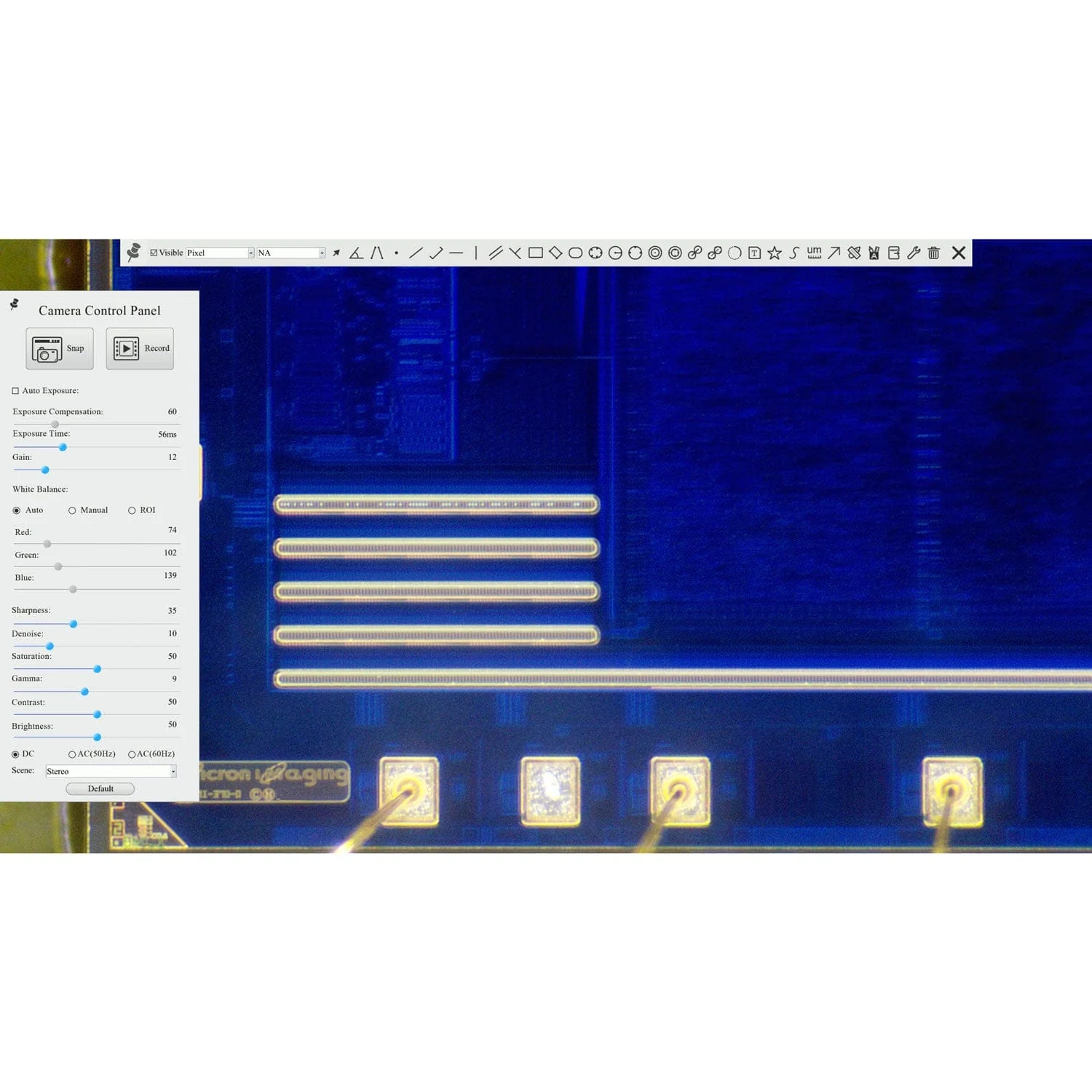

Use the included USB mouse to navigate the on-screen controls. The user interface provides all of the necessary functions needed to capture photos and videos, as well as a range of calibration and measurement tools. Files can be saved on external USB media. Alternatively, the CP480 can be connected to a PC using a USB or wi-fi connection. This allows you to use our more robust imaging application which expands the toolsets to include image-stitching, focus-stacking, HDR, counting tools, and more. |
 |

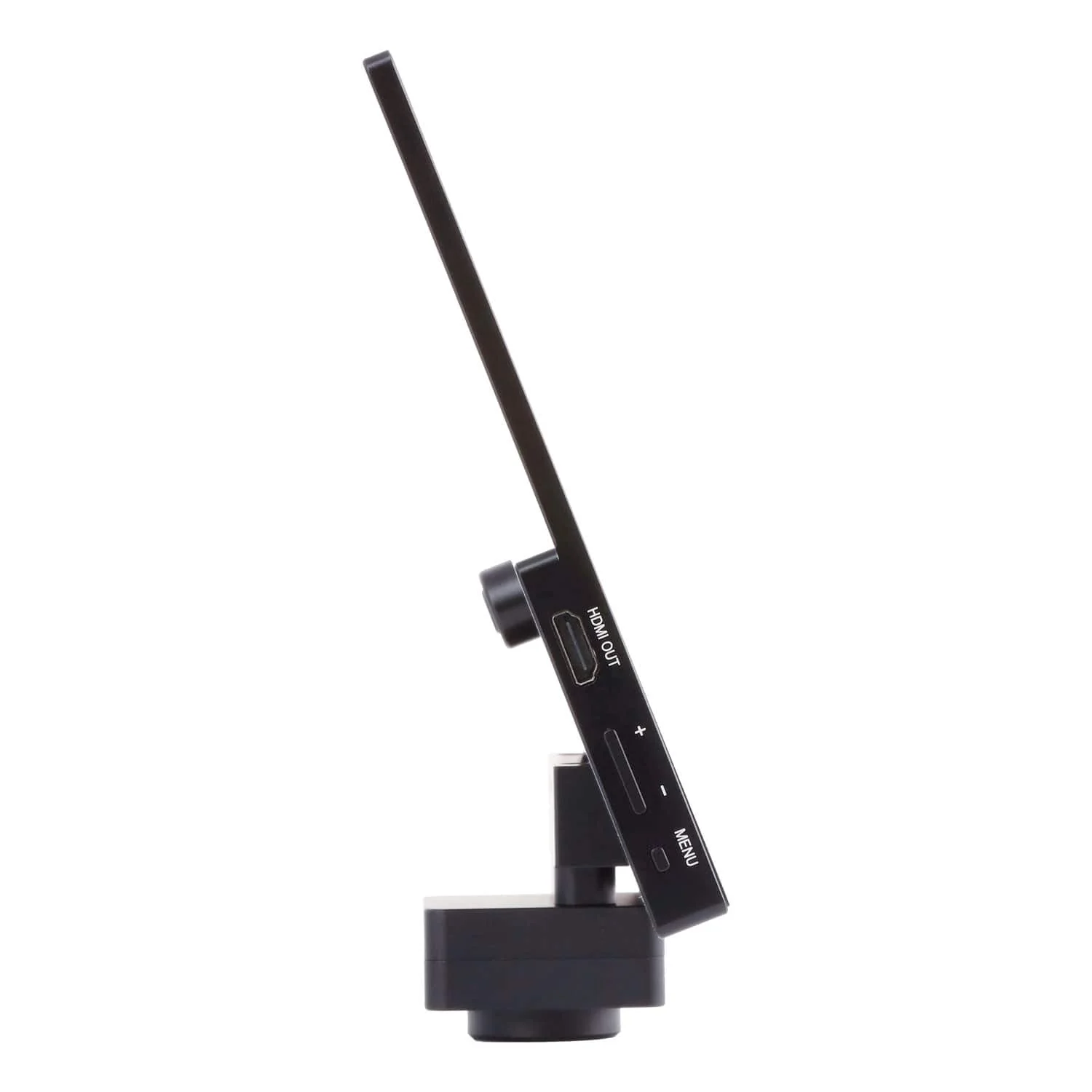

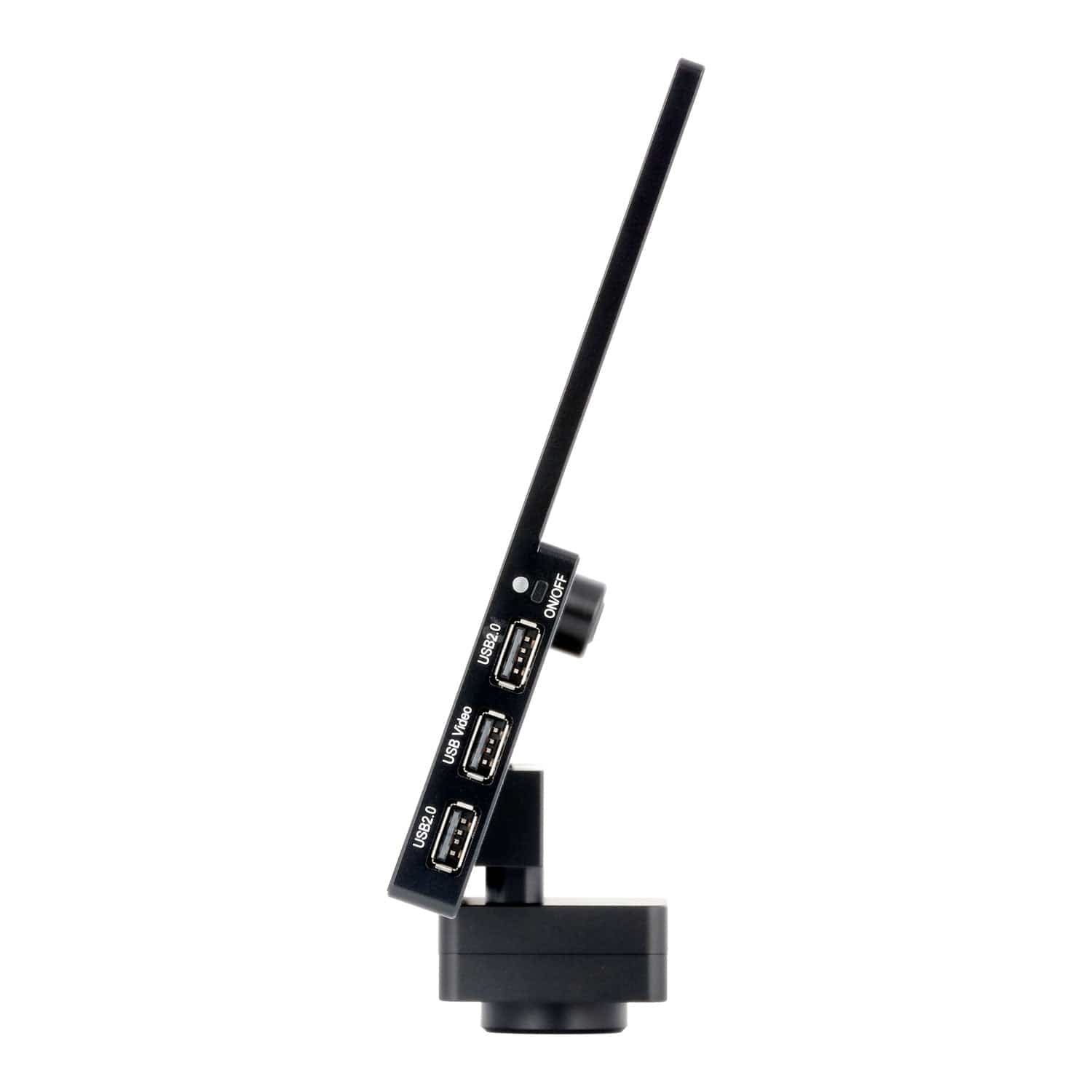

Multiple USB ports are available to use for external devices or connecting to a PC. An HDMI output can be used to connect to a larger monitor or television. |
Specifications
| Sensor Specifications | |
| Model | IMX678 (color) |
| Sensor Type | CMOS |
| Sensor Optical Format | 1/1.8" |
| Active Pixels | 8M (3840 x 2160) |
| Pixel Size | 2.0µm x 2.0µm |
| Active Sensor Area | 7.68mm x 4.32mm |
| Shutter | electronic rolling shutter |
| Sensitivity | 1364mV @ 1/30s (f/5.6) |
| Spectral Response | 380-650nm with IR-cut filter |
| Other Camera Specifications | |
| Video Resolution | 30fps @ 3840x2160 |
| Internal Video Capture Format | MP4 (H.264, H.265) |
| Photo Capture Resolution | 3840 x 2160 |
| Internal Photo Capture Format | JPG, TIFF |
| Recording Media | External USB |
| Connectivity | HDMI (v1.4), USB 2.0, wi-fi |
| Lens-mount | C-mount |
| Recommended Compensating Lens | 0.5X (optional, not included) |
| Power | 12VDC 2A |
| Screen Specifications | |
| Panel Type | TFT |
| Resolution | 1920 x 1080 |
| Luminance | 220 cd/m2 |
| Contrast Ratio | 800:1 |
| Touch Control | None |
Contents
- Imager
- USB mouse
- HDMI cable
- USB cable
- USB wi-fi adapter
- AC power adapter
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The CP480 combines a 4K (8MP) camera with a 13.3” high-definition screen to create a ready-to-go digital imaging system for microscopy. Like our HD200 and HD400 series multi-function cameras, the CP480 uses comprehensive built-in software for intuitive control of camera functions for capturing and processing photos and videos. Use the included mouse to navigate on-screen controls, or pair the CP480 with a computer using USB or wi-fi to make use of the expansive imaging tools included in our desktop software.
|
The CP480 can be used with a wide range of microscopes and video lenses. Setup is simple using the standard C-mount interface which allows the CP480 to attach directly to microscopes equipped with a C-mount photo port. To attach to an ocular port, simply use an optional reduction lens such as our RU050. The CP480 is also a perfect companion for our video inspection lenses including the H800 and H756 models. |
|
Use the included USB mouse to navigate the on-screen controls. The user interface provides all of the necessary functions needed to capture photos and videos, as well as a range of calibration and measurement tools. Files can be saved on external USB media. Alternatively, the CP480 can be connected to a PC using a USB or wi-fi connection. This allows you to use our more robust imaging application which expands the toolsets to include image-stitching, focus-stacking, HDR, counting tools, and more. |
|
Multiple USB ports are available to use for external devices or connecting to a PC. An HDMI output can be used to connect to a larger monitor or television. |
