AmScope B110 Series Premium Student Lab Binocular Compound Microscope Bundles: 40X-1000X dual LED, Ergonomic, with Digital Camera, Tweezers, and Prepared Microscope Slide Set
The B110 binocular compound microscope is designed for teaching demonstrations, clinical examinations, and laboratory applications. It is an ideal beginner microscope for teachers and students, including those in medical school or with a major in biology. It has a number of advancements in functionality compared to other microscopes in its class, such as enhanced LED lighting from both top and bottom angles, Abbe condenser with iris diaphragm, and Siedentopf head adjustments. Use the microscope for studying fixed or live cells, bacteria, plants, and soil, or water samples.
Viewing Head
To customize the microscope to your viewing comfort, the eyepiece spacing can be easily adjusted using a precision Siedentopf mechanism. A diopter is available on the left ocular tube to compensate for asymmetry, and the ocular tubes are angled at 38° to comfortably accommodate a seated position without neck strain. Various eyepieces can be used to increase the overall optical magnification.
Optics
The objective turret provides instant access to 3 magnification levels to focus on minute details from 40X to 1000X easily. Additional 25X eyepieces expand the maximum magnification to 1000X with 6 unique levels. This covers the magnifications needed for studying hair follicles, cells, and bacteria. These high-quality lenses are achromatically corrected to improve resolution and color accuracy.
The Stage
The 2-layer mechanical stage provides smooth and precise movement for the examination of specimen slides. The stage's low-position controls are conveniently placed near the coaxial focus knobs for a streamlined workflow. Examining specimen slides is intuitive and precise for users at any skill level.
Transmitted Illumination
The LED sub-stage lighting provides cool, energy-efficient illumination. The bottom light source is daylight balanced to produce natural colors for imaging. With our specially developed fly-eye lens, the light is evenly distributed at maximum brightness to improve contrast and resolution.
Specifications
| Optical System | Finite-conjugate |
| Mechanical Tube Length | 160mm |
| Head | Binocular, 38° incline, 360° rotatable |
| Interpupillary Adjustment | Siedentopf, 53-77mm |
| Ocular Diameter | 23mm |
| Eyepieces | 10X, 25X |
| Objective Mounting Thread | RMS 20.32mm |
| Objective Turret | Triple |
| Focusing System | Coaxial coarse and fine focus |
| Focus Range | 30mm |
| Division of Fine Focus | 0.002mm |
| Stage Design | Double-layer with caliper |
| Stage Dimensions | 115mm x 110mm |
| X-Y Translation Range | 50mm x 25mm |
| Transmitted Illumination |
Variable-intensity 1W LED under and overhead. |
| Condenser | NA0.65 Abbe condenser with iris diaphragm |
| Power | 100-240VAC 50/60Hz wide-band |
| Dimensions | 11" x 7" x 13-3/4" (28cm x 17.8cm x 35cm) |
Objective Lenses
| Magnification | Corrections | NA | Immersion Medium | Cover-glass Thickness |
|---|---|---|---|---|
| 4X | achromatic | 0.10 | — | 0.17mm |
| 10X | achromatic | 0.25 | — | 0.17mm |
| 40X | achromatic | 0.65 | — | 0.17mm |
Packing List:
- One binocular microscope head
- One microscope body
- Three objective lenses: 4X, 10X, and 40X
- One pair of 10X eyepieces
- One pair of 25X eyepieces
- One blue color filter
- One dust cover
- One power supply
- 50 Pre-Cleaned Blank Microscope Slides and100 22x22mm Square Cover Glass
- 5 Pack Plastic Disposable Tweezers
- AmScope PS25W 25 Glass Prepared Microscope Slides with Wooden Box

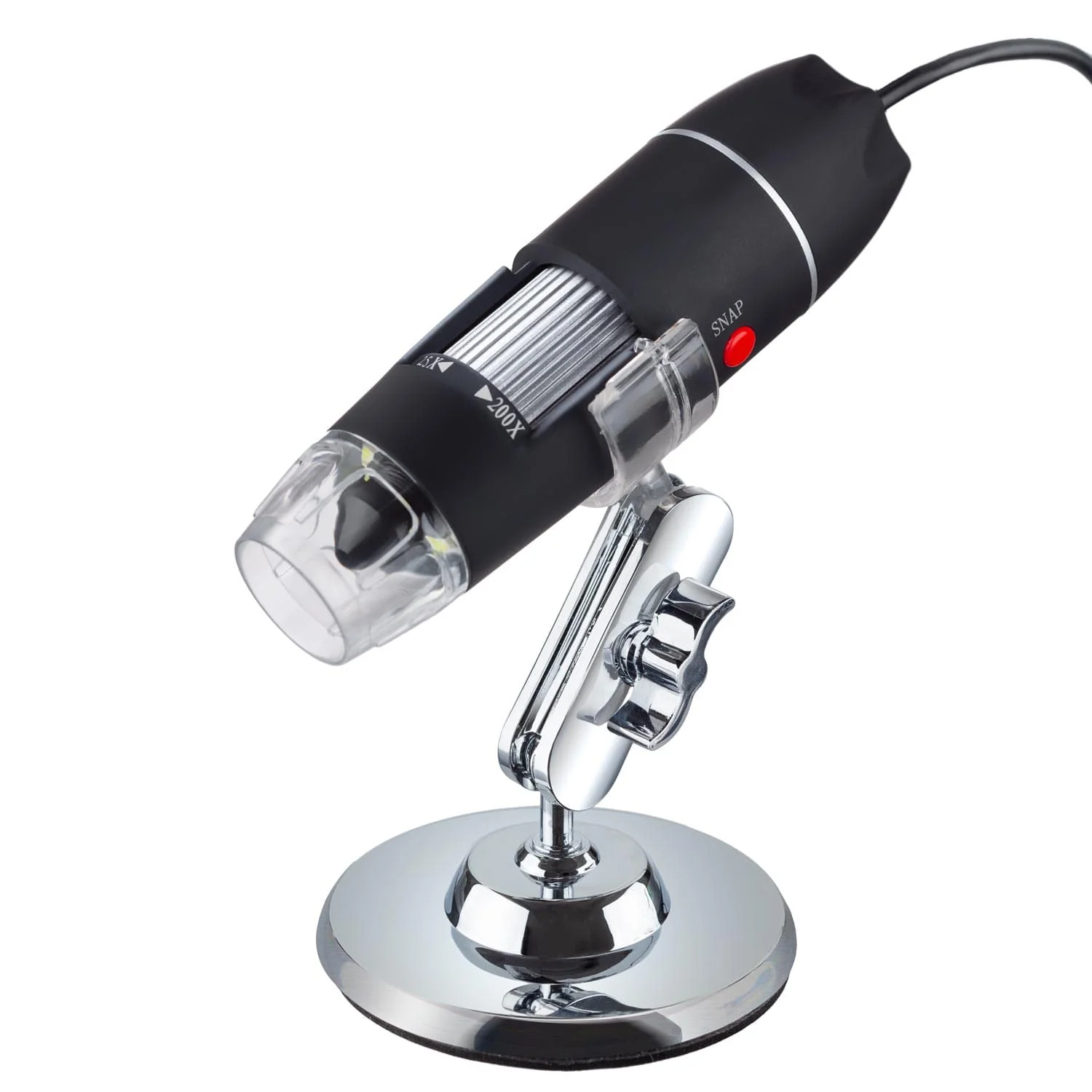

- 50X-500X 0.3MP Handheld Multi-USB Digital Microscope with LED Illumination for PC and Android
