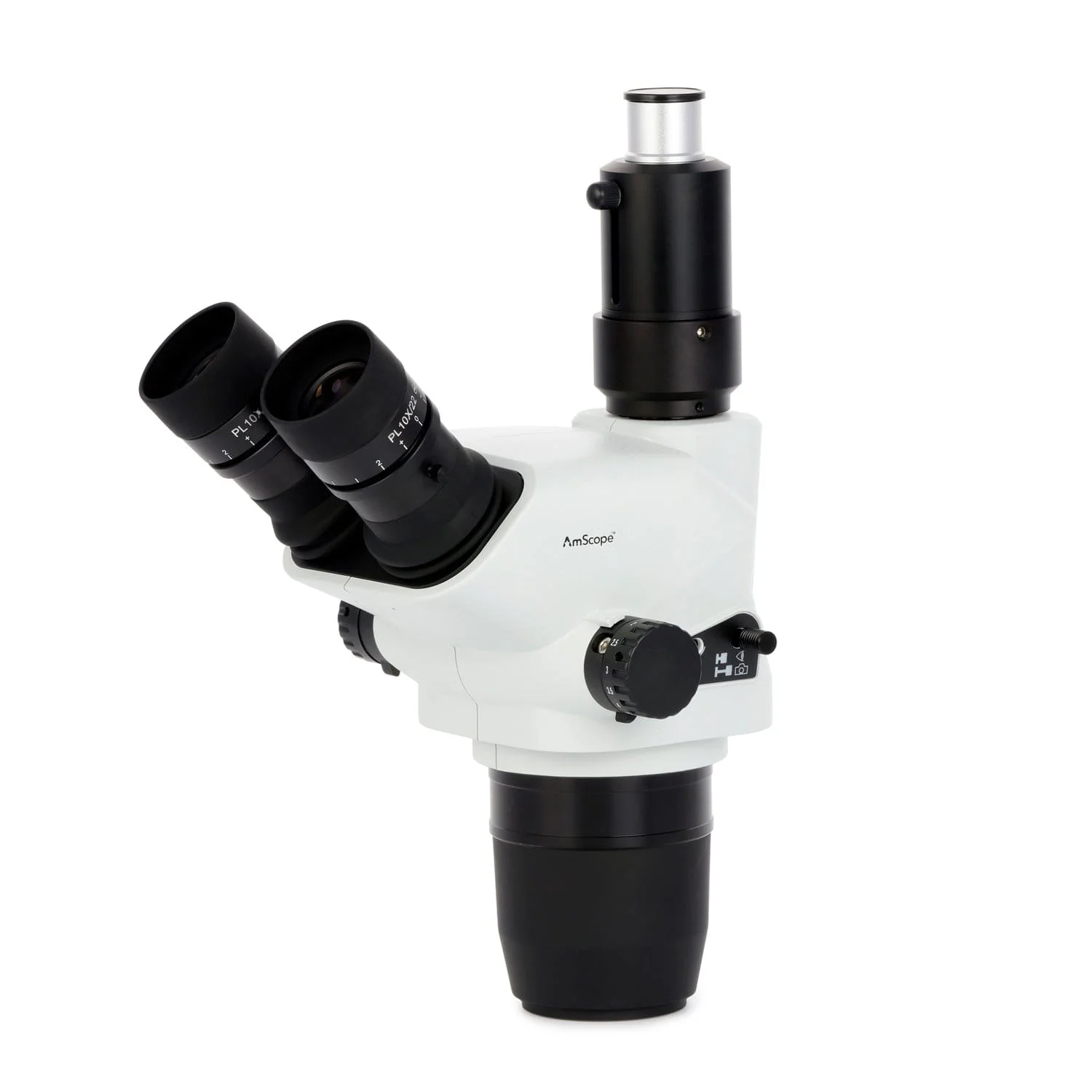

AmScope SZN6745T Trinocular Stereo Microscope Head

New from AmScope, this is a 6.7X-45X zoom magnification trinocular stereo microscope head with our top optical systems, offering premium-level sharp clear erect stereo images over a large zoom magnification range. It includes a pair of focusable plan PL10X/22 eyepieces with foldable eye-guards. Its trinocular port enables the addition of photo or video capability and can be turned on by pulling the shutter pin outwards while pushing the pin back in switches back to binocular mode. It comes with 45-degree inclined 30mm eye tubes. The extreme widefield optics and high-eyepoint design ensure an easy and comfortable observation. This microscope head fits stands with a 3" (76mm in diameter) collar.

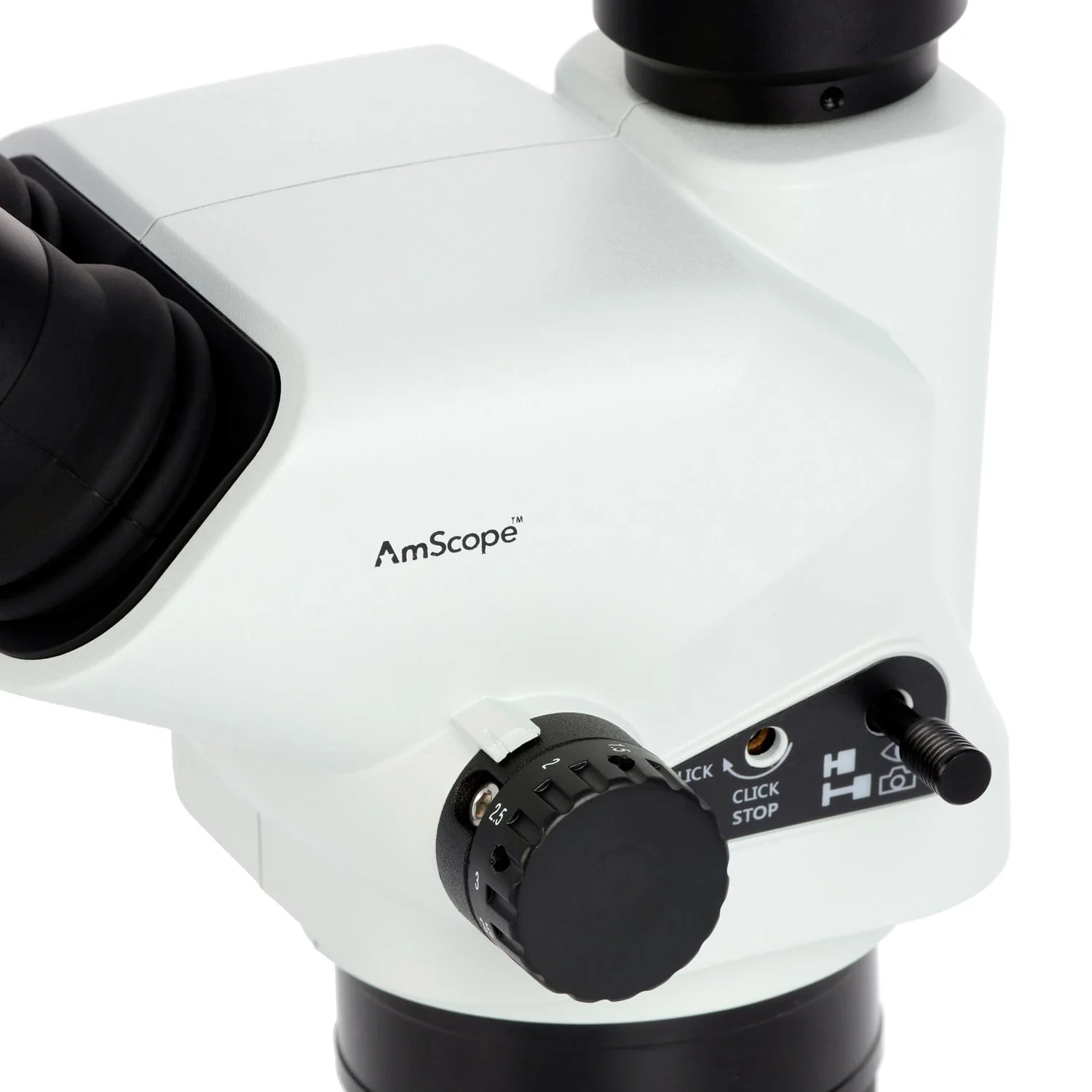

Enhanced features include the ability to set a minimum magnification level by locking the zoom knob, adjustable zoom click intensity, and a shutter pin to switch back and forth between binocular and trinocular modes.

Features:

6.7X-45X Continuous Zoom Magnification Offering Top-Level Quality Images

45-degree Inclined Trinocular Head with Extreme Widefield High-Eyepoint Eyepieces

30mm Plan PL10X/22 Eyepieces

High Resolution with Great Flatness and Contrast

Sharp Stereo Erect Images over a Wide Field View

Crystal Clear Original True Color Images

Both Ocular Tubes with Adjustable Diopter

Large Working Distance 4" (110mm)

Accurate Alignment Ensuring a Fatigue-Free Viewing

Full Optical Glass Elements

Precise Ground Glass Lens

All Metal Mechanical Components

Adjustable Interpupillary Distance

Shutter Pin - Switch Between Binocular and Trinocular

Magnification Level Lock

Zoom Wheel Click Adjustment

Rubber Eye-guards Included

Manufactured under ISO 9001 Quality Control Standard

Excellent Five (5) Year Manufacturer Warranty

Specifications

Microscope Head
Head Type	Trinocular
Optical System	Greenough stereoscopic
Ocular Incline	45°
Interpupillary Adjustment	Sliding, 54-76mm
Ocular-port Diameter	30mm
Dioptric Adjustment	Both oculars, ±5dp
Eyepieces	10X Focusable Plan PL22 high-eyepoint extreme wide-field
Objective Lenses	0.67X-4.5X zoom
Objective Numerical Aperture	0.0715 @ 4.5X
Objective Resolution	214.5 lp/mm @ 4.5X
Field-of-View (10X Eyepieces)	4.9mm-31.4mm
Working Distance	4" (110mm)
Auxiliary Lens Mount	48mm
Collar Mounting Size	76mm (3")
Photo Port	23mm

Packing List:

One Trinocular Stereo Zoom Head

One Pair of Focusable Plan PL10X/22 Eyepieces

One Pair of Foldable Eye-Guards

One Dust Cover

One Photo Port
