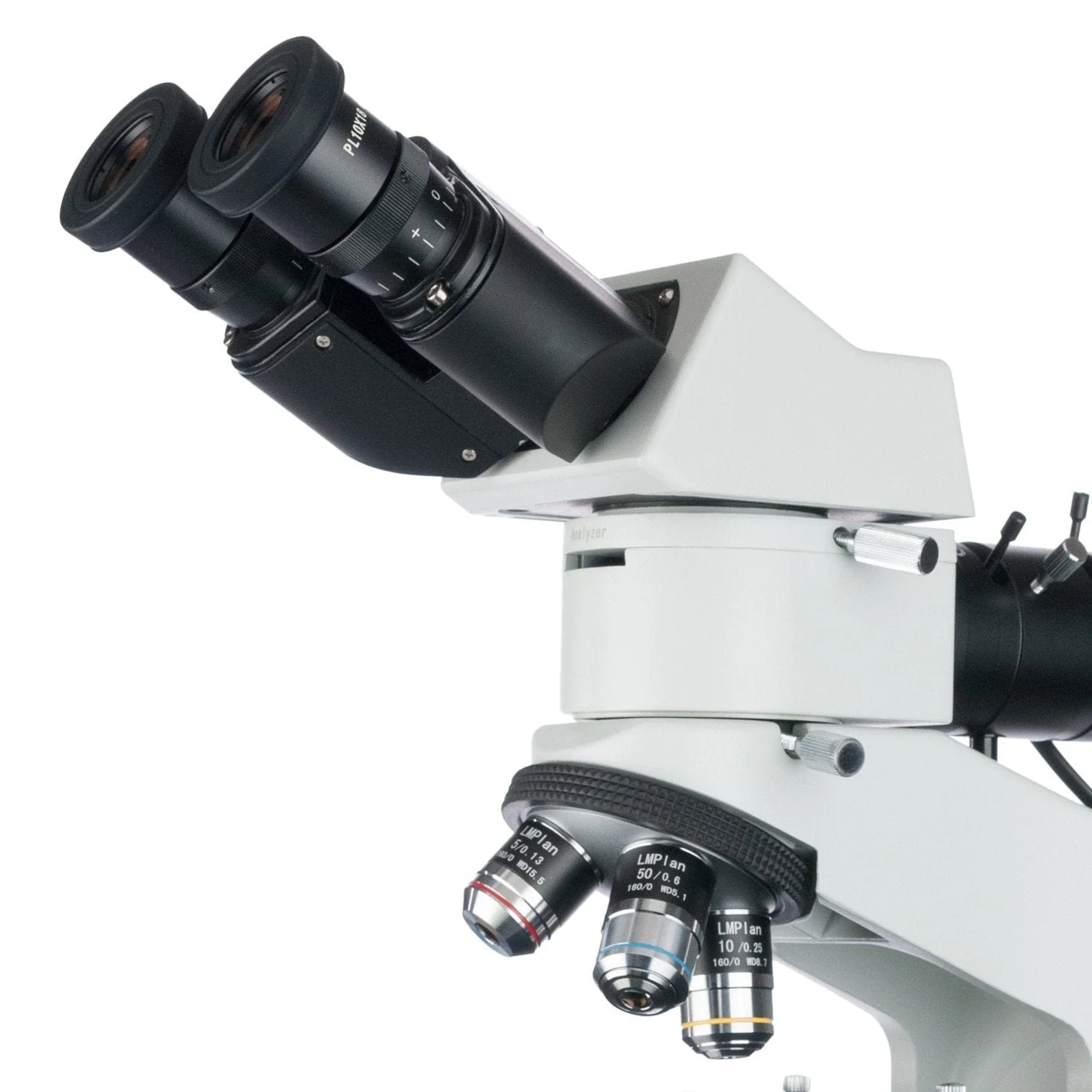

Product image 5
Product image 6
Product image 7
Product image 8
Product image 9
Product image 10

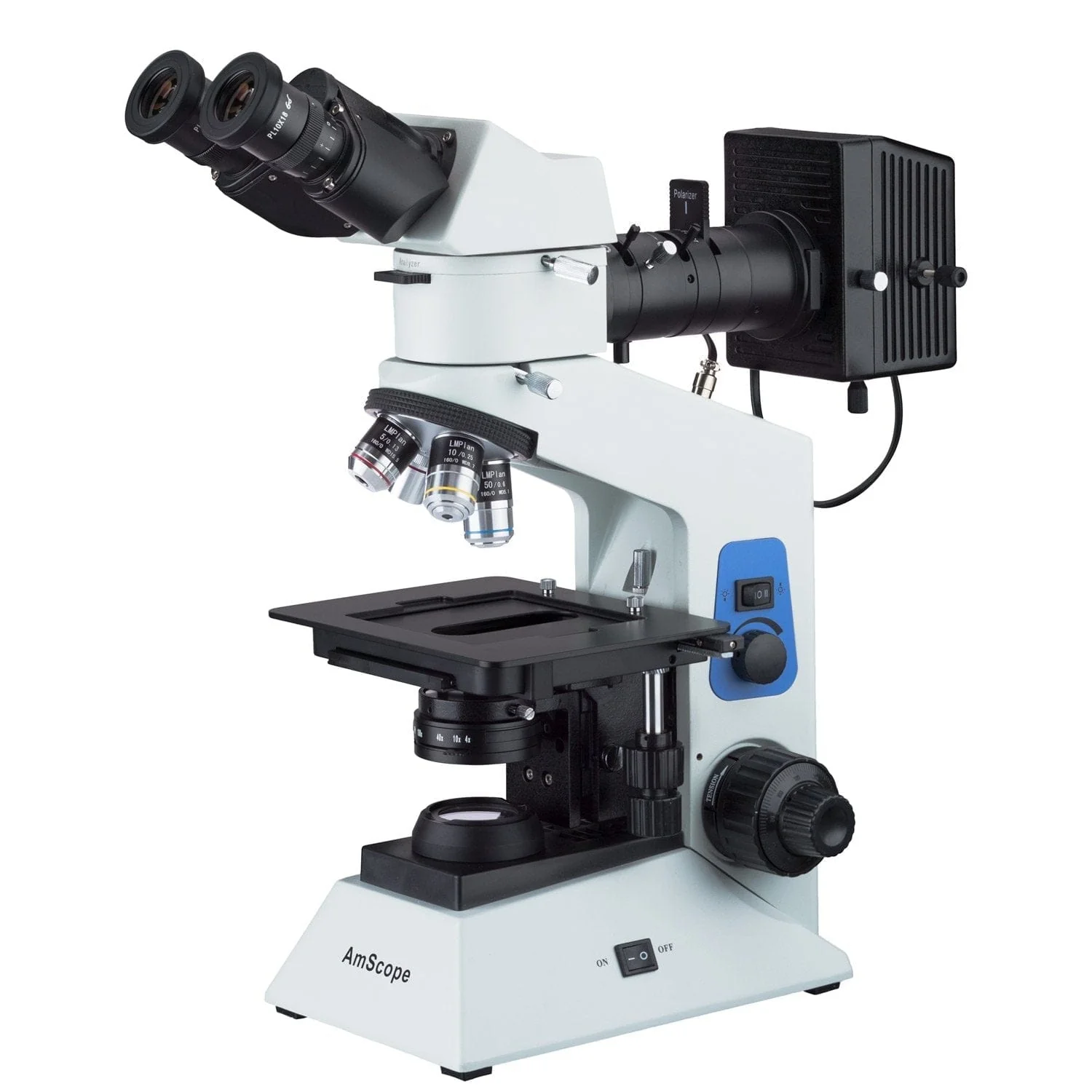

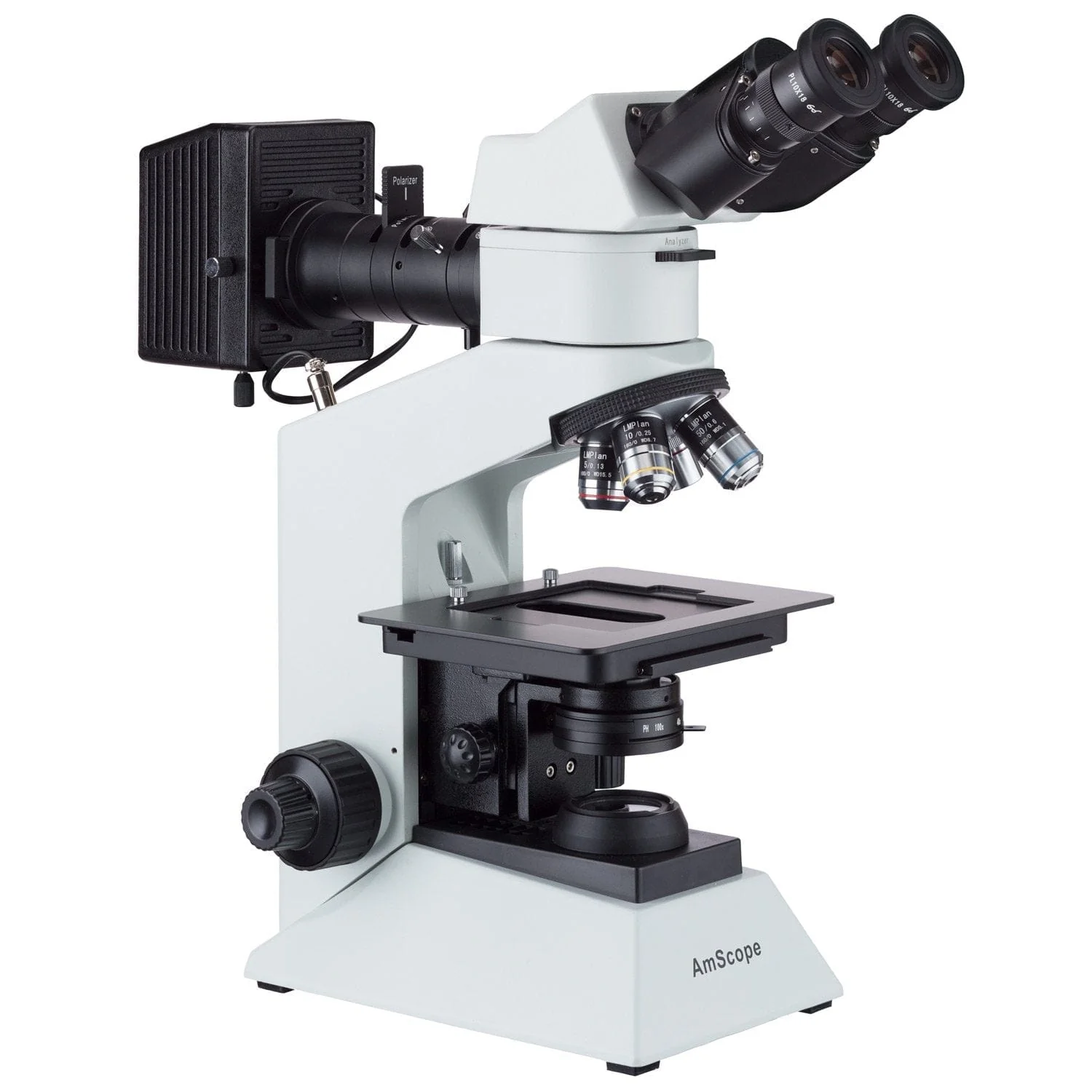

AmScope ME580 Series Compact Metallurgical Upright Binocular Compound Microscope with Dual Illumination Polarized Light and Optional Digital Camera

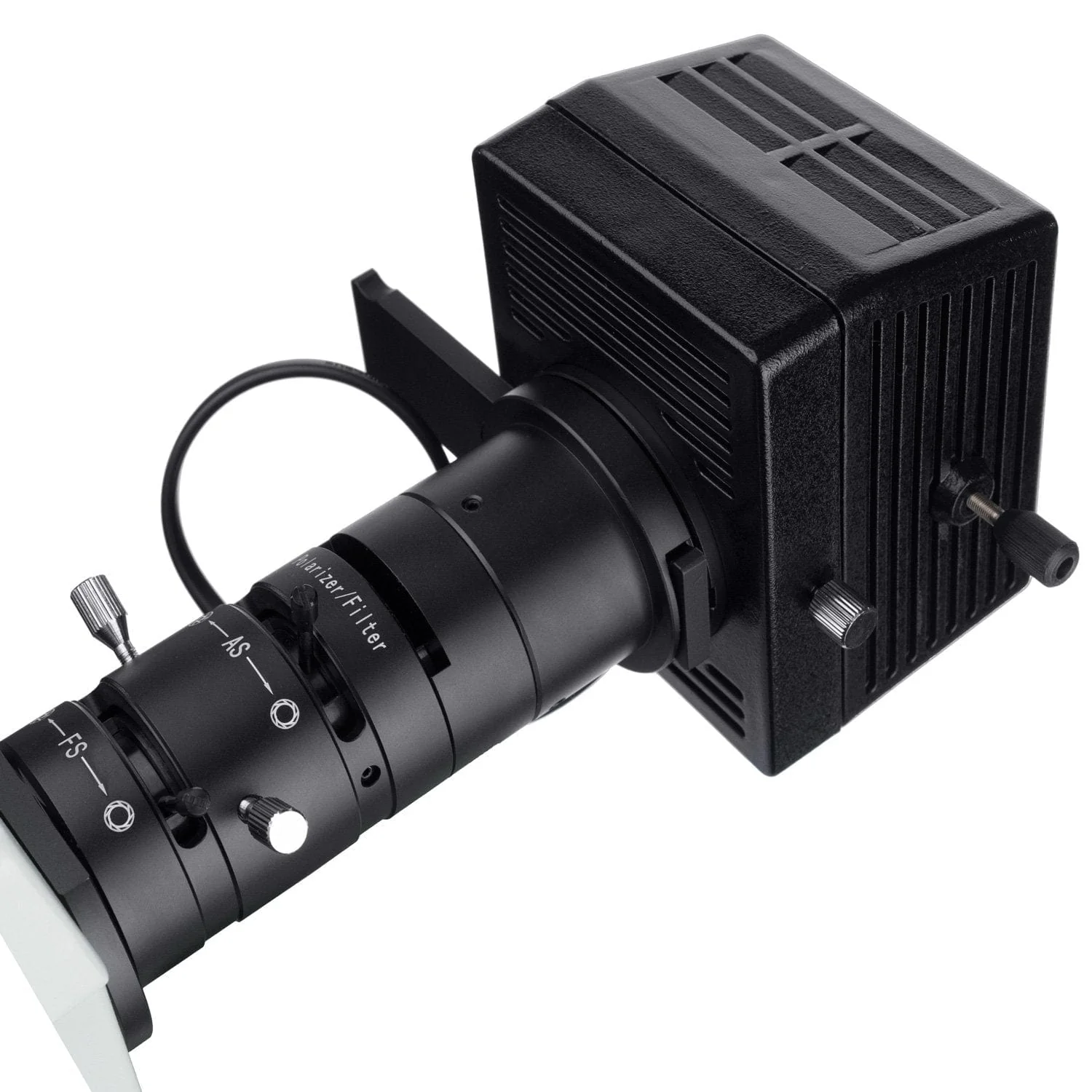

This is a feature-packed, economical metallurgical microscope with an upright design, and both trasmitted and reflected illumination. The episcopic illuminator includes removable polarizer and analyzer, as well as adjustable field and aperture diaphragms. The plan-achromatic optical system offers sharp, flat-field images with excellent color-correction. The Siedentopf head with dual diopters and high-eyepoint eyepieces provides a comfortable and adjustable viewing platform.

Change magnifications quickly using the objective turret without significant refocusing thanks to the parfocal design. Using the included 10X eyepieces and a combination of metallurgical and biological objective lenses, the magnification range spans from 40X to 500X with five unique settings. The lenses are achromatically corrected for improved resolution, and flat-field corrected to ensure edge-to-edge sharpness.

Features:

  • An advanced metallurgical microscopy system with incident and transmitted illumination
  • Polarized lighting for structural analysis
  • Includes a range of filters for lighting manipulation

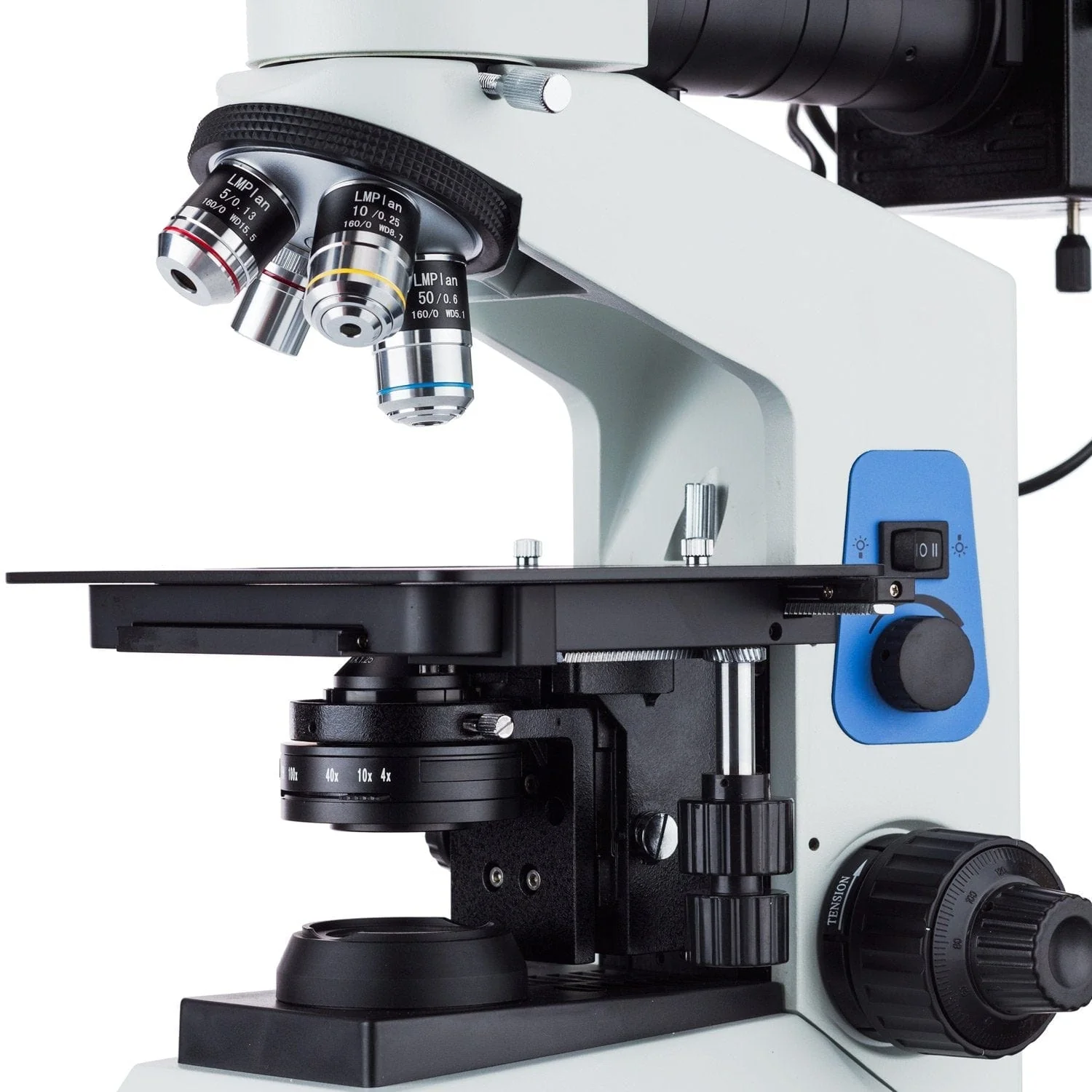

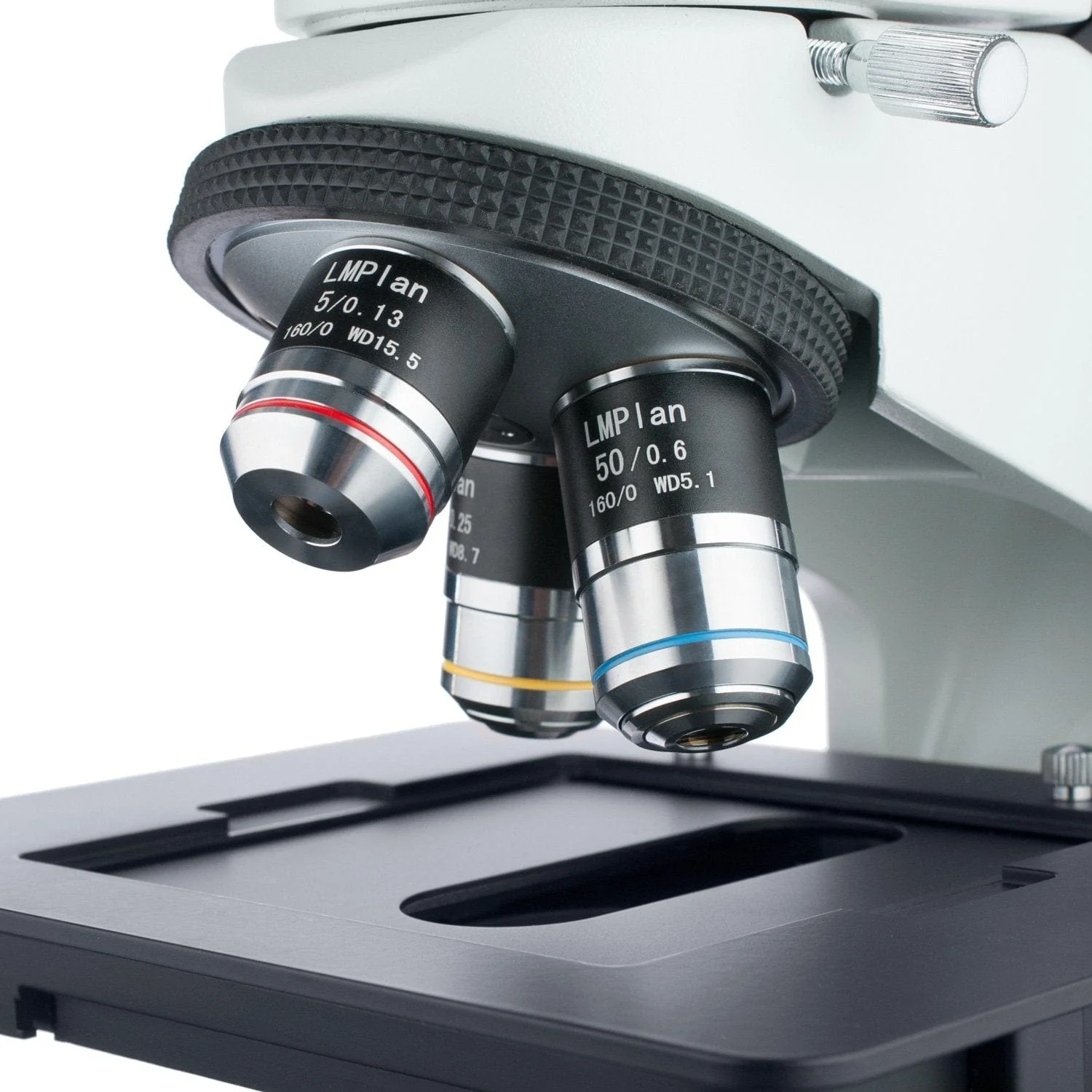

  • 5X, 10X, and 50X long-working-distance metallurgy plan achromat objectives
  • 4X, 10X, 40X achromat objectives
  • 10X plan eyepieces for flat-field viewing
  • Co-axial coarse & fine focusing system
  • 30 degree inclined 360 degree rotatable binocular head
  • Coaxial coarse and fine focusing
  • Dual focusing control knobs
  • Focusing tension control mechanism
  • Adjustable interpupillary distance
  • Adjustable diopters on both eye tubes
  • Solid metal frame construction with stain resistant enamel finish

    • Specifications:

  • Head: 30 degree inclined binocular
  • Eyepieces: 10X
  • Interpupillary Adjustment: Siedentopf
  • Nosepiece: forward quadruple RMS thread
  • Tube length: 160mm
  • Metallurgical Objectives: 5X/0.13, 10X/0.25, 50X/0.6 long-working-distance plan achromatic DIN
  • Bright-field Objectives: 4X/0.1, 10X/0.25, 40X/0.65 achromatic DIN
  • Polarization System: removable analyzer/polarizer filters for episcopic lighting with +/- 25° adjustment
  • Focus System: coaxial coarse/fine focus
  • Focus Travel Range: 25mm
  • Fine-focus Precision: 0.002mm
  • Stage: 140mm x 132mm mechanical stage
  • Stage X-Y Movement: 75x50mm
  • Illumination: 30W reflected, 20W transmitted
  • Power: 90-240VAC 50/60Hz wide-band
    • Metallurgical Objective Lenses
    Magnification Corrections NA Working Distance Cover-glass Thickness
    5X Plan-achromatic 0.13 15.5mm 0
    10X Plan-achromatic 0.25 8.7mm 0
    50X Plan-achromatic 0.60 5.1mm 0
    Biological Objective Lenses
    Magnification Corrections NA Cover-glass Thickness
    4X Achromatic 0.10 —
    10X Achromatic 0.25 0.17
    40X Achromatic 0.60 0.17

    Packing List:

  • One microscope with binocular Siedentopf head
  • Three LM Plan achromatic objectives (5X, 10X, 50X)
  • Three achromatic objectives (4X, 10X, 40X)
  • One pair 10X eyepieces
  • One sub-stage condenser
  • One Halogen episcopic illuminator module
  • One 6V 30W G4 halogen bulb
  • One 6V 20W G4 halogen bulb
  • Six filters (polarizer, analyzer, green, blue, yellow, diffuser)
  • One AC cord
  • One pack of lens tissues
  • One dust cover
  • One tension wrench
