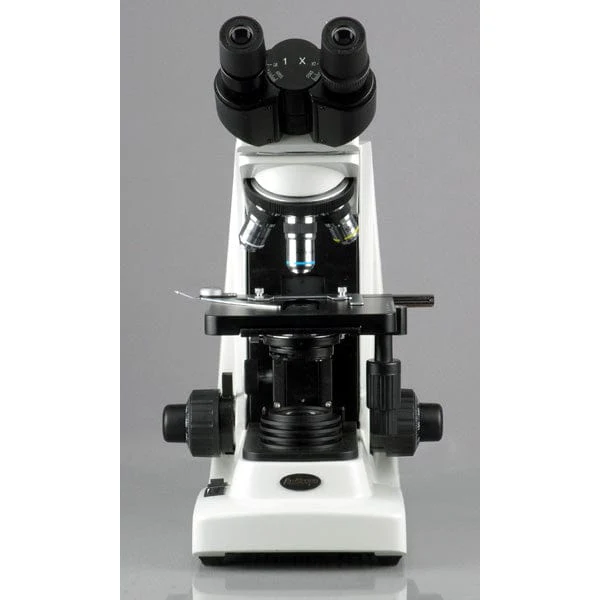

AmScope B600A-PCT Binocular Biological Microscope with 1600X Magnification and 20W Incandescent Light Source

This professional binocular microscope offers turret phase contrast features. It is designed for advanced applications in clinical offices and research laboratories. This microscope comes with a 30 degree inclined 360 degree swiveling compensation free binocular head, 3-D mechanical stage and intensity-variable halogen illumination system. It offers eight phase contrast settings (100X-160X-200X-320X-400X-640X-1000X-1600X) and eight bright field magnification powers (40X-64X-100X-160X-400X-640X-1000X-1600X). The turret phase contrast kit includes a phase contrast condenser, CT lens and a set of phase contrast 10X, 20X, 40X and 100X PLAN objectives.

Features:

• A Phase Contrast and Bright Field Microscopy System
• Perfect for Clinics, Vets, Doctors and Researchers
• Quadruple, Reversed, Extra-Large Nosepiece with Wide, Knurled Grip for Easy Operation
• 30 Degree Inclined 360 Degree Swiveling Compensation-free Binocular Head

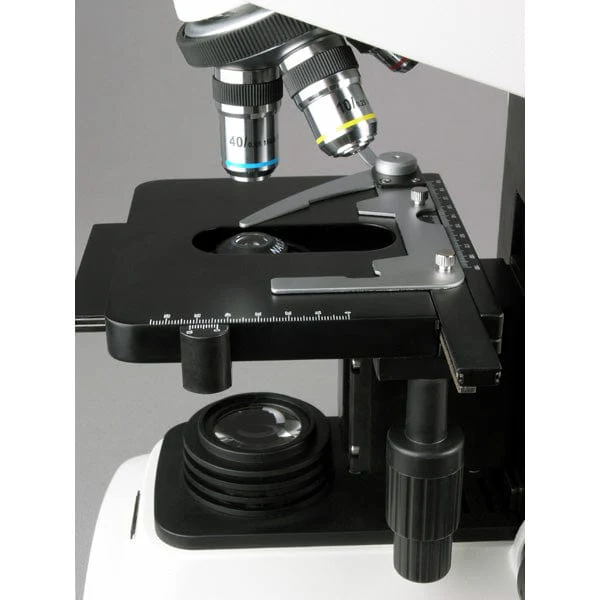

• Large 3-D Double Layer Mechanical Stage with Stain Resistant Finish
• Low Position Coaxial Stage Movement Control Knobs
• Coaxial Coarse & Fine Focusing with CA Knob Tension Control
• Fully Coated Optical System with High Resolution
• Crystal Clear Sharp Images
• High Quality Professional Grade Microscope
• Eight Bright Field Magnification Settings: 40X-64X-100X-160X-400X-640X-1000X-1600X
• Eight Phase Contrast Magnification Settings: 100X-160X-200X-320X-400X-640X-1000X-1600X
• Upward Stage Stopper to Protect Slides and Objectives
• Abbe Condenser with Iris Diaphragm & Swing-In Color Filter
• Rack and Pinion Control for Condenser
• Built-in Halogen Illumination System with Variable Brightness
• Focusing Control Knobs on Both Sides
• Four DIN Achromatic Objectives
• Three Phase Contrast DIN Achromatic Plan Objectives
• Two Sets of Eyepiece Included
• Full Optical Glass Elements
• Precise Ground Glass Lens
• All Metal Mechanical Components
• Adjustable Interpupillary Distance
• Adjustable Diopters on Both Oculars
• Rugged Cast Alloy Frame and Stand with Stain Resistant Enamel Finish
• Spare Bulb, Fuse and Immersion Oil Included
• Plan-Concave Mirror Included
• Manufactured under ISO 9001 Quality Control Standard.
• Excellent Five (5) Year Factory Warranty.



Specifications :

• Phase Contrast: Simple
• Nosepiece: ball bearing quadruple
• Mechanical Tube Length: 6-5/16" (160mm)
• Head: compensation free binocular inclined at 30 degree
• Wide-Field Eyepieces: WF10X & P16X
• Interpupillary Distance: 2-3/16" - 3" (55 - 75mm)
• Achromatic Objectives:
  4X (0.1), 10X (0.25), 40X (0.65, spring), 100X (1.25, spring, oil)
• Phase Contrast Plan Objectives:
  Plan PH 10X(0.25), PH 40X(0.65) & PH 100X(1.25) (160/0.17)
• Stage Dimensions: 5-1/2"x 6-5/16" (140x160mm)
• Stage Traveling Range: 2-3/4"x 2-0" (70x50mm)
• Focusing Range: 1-3/16" (30mm)
• Division of Fine Focusing: 0.0000787" (0.002mm)
• Abbe Condenser: NA=1.25 with rack and pinion focusing control
• Microscope Dimensions: 10" x 9" x 16"
• Illumination: 6V/20W halogen lamp.
• Power Supply: 110V
• Accessories: 6V/20W spare halogen bulb, 2" plan-concave mirror,
  bottle of objective oil, and blue, green & yellow filters



Packing List :

• One Binocular Microscope with Frame and Base
• Four High Quality DIN Objectives, 4X, 10X, 40X and 100X
• One Pair of Widefield 10X Eyepieces
• One Pair of Widefield 16X Eyepieces
• One Complete Phase Contrast Kit
• One Dust Cover
• One Power Cord
• One 6V/20W Spare Halogen Bulb
• Color Filters
• Spare Fuses
• Bottle of Sample Immersion Oil
• User's Manual Download
• Shipping Weight: 40 lbs
