AmScope AX-INF-B Infinity Achromatic Biological Objective Lense with Set Magnification

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5

AmScope AX-INF-B Infinity Achromatic Biological Objective Lense with Set Magnification

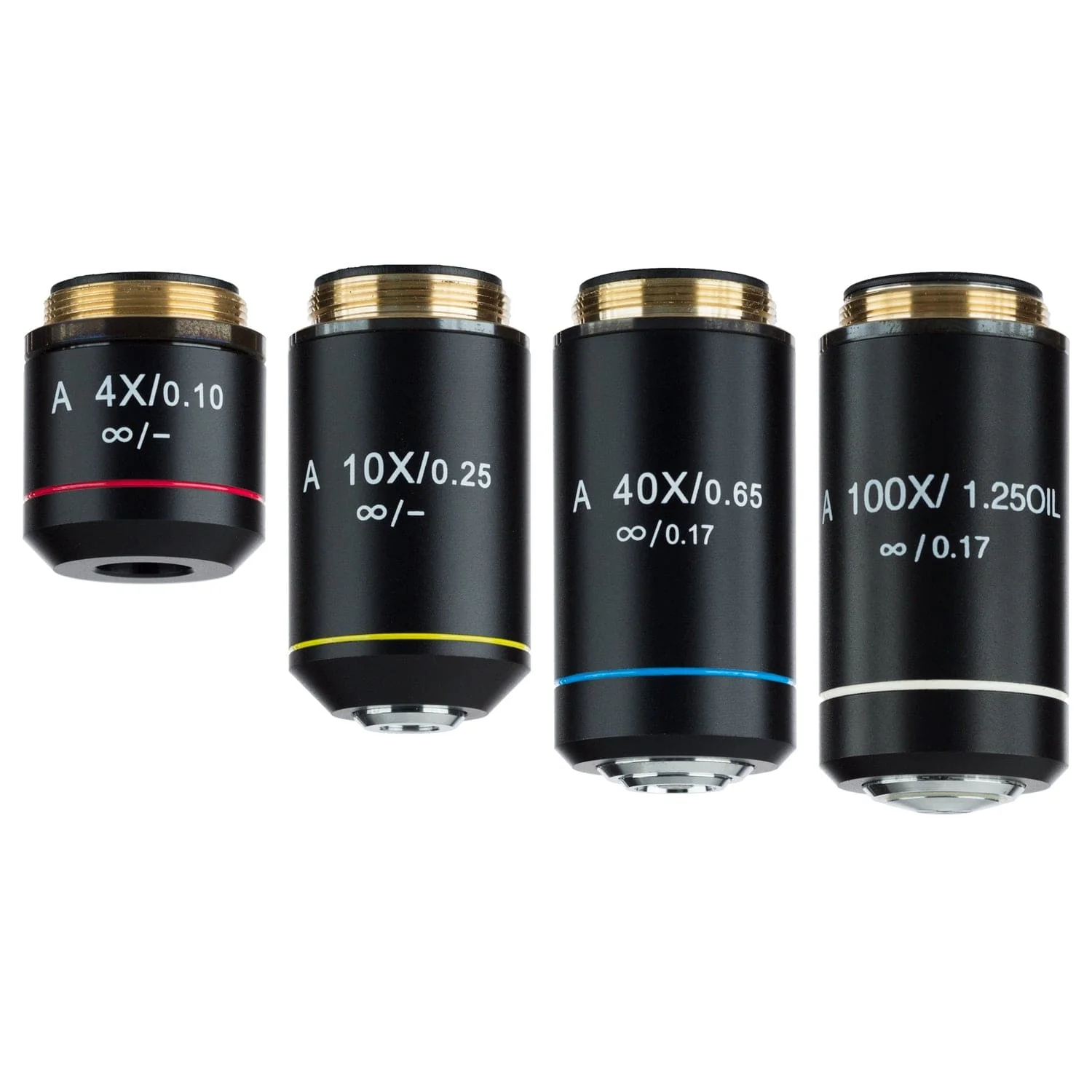

This is a set of 4 achromatic objective lenses with black finish for certain infinity-corrected microscopes. The set includes 4X, 10X, 40X, and 100X lenses. Intended primarily for biological applications, they are designed to work with infinity-corrected microscopes using RMS mounting thread 45mm parfocal distance. Achromatic correction provides improved color accuracy and resolution.

Compatibility
Optical System Infinite
Reference Focal Length 180mm
Mounting Thread RMS 20.32mm
Parfocal Distance 45mm
Lens Specifications
Magnification Corrections NA Cover-glass Thickness Immersion Medium Nosecone
4X Achromatic 0.10 — — Fixed
10X Achromatic 0.25 — — Fixed
40X Achromatic 0.65 0.17mm — Spring
100X Achromatic 1.25 0.17mm Oil Spring
$270.99
AmScope AX-INF-B Infinity Achromatic Biological Objective Lense with Set Magnification—
$270.99

Product Information

Shipping & Returns

Description

This is a set of 4 achromatic objective lenses with black finish for certain infinity-corrected microscopes. The set includes 4X, 10X, 40X, and 100X lenses. Intended primarily for biological applications, they are designed to work with infinity-corrected microscopes using RMS mounting thread 45mm parfocal distance. Achromatic correction provides improved color accuracy and resolution.

Compatibility
Optical System Infinite
Reference Focal Length 180mm
Mounting Thread RMS 20.32mm
Parfocal Distance 45mm
Lens Specifications
Magnification Corrections NA Cover-glass Thickness Immersion Medium Nosecone
4X Achromatic 0.10 — — Fixed
10X Achromatic 0.25 — — Fixed
40X Achromatic 0.65 0.17mm — Spring
100X Achromatic 1.25 0.17mm Oil Spring
