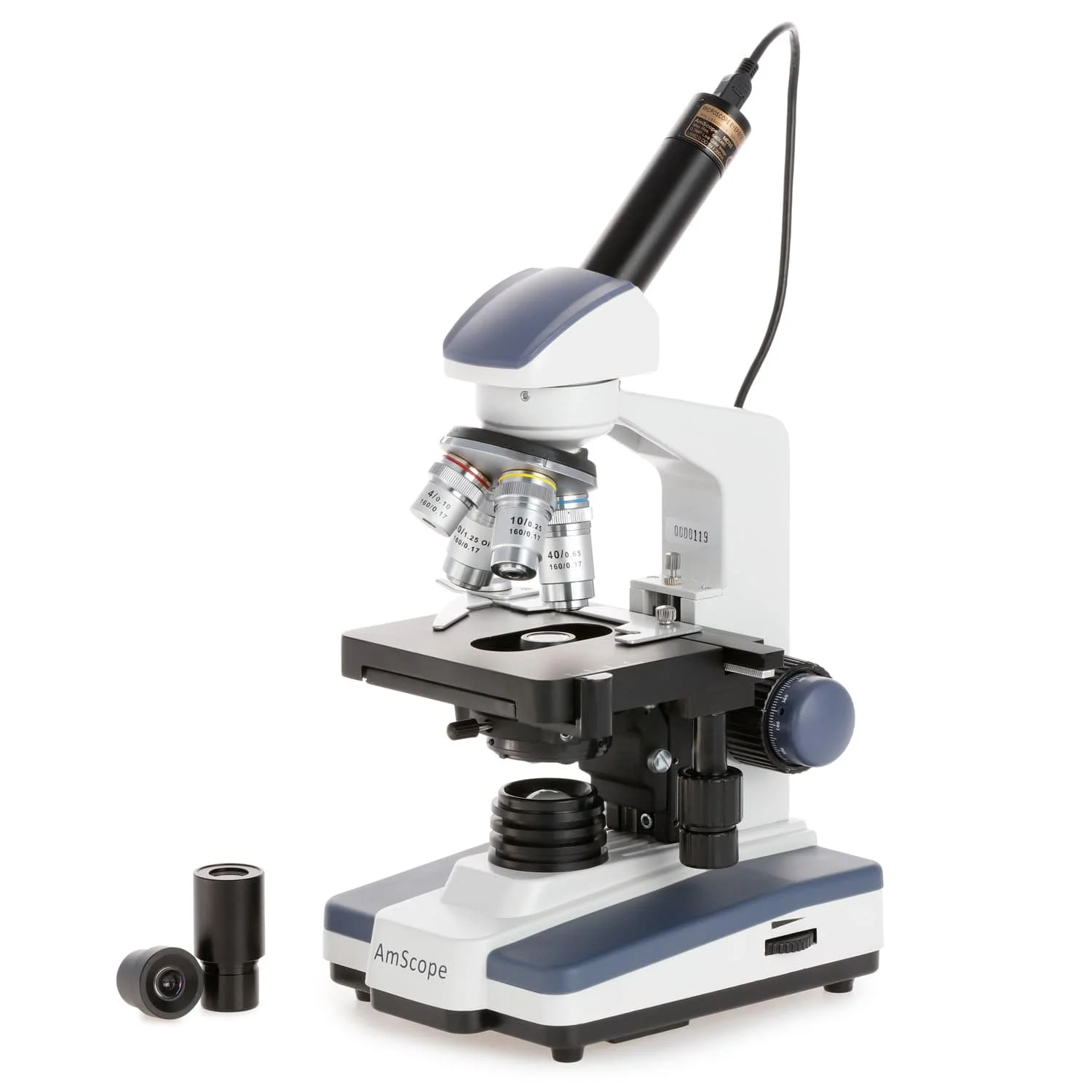

The M620 monocular compound microscope is designed for classrooms and basic laboratory applications. It is an ideal microscope for teachers and students, including those in medical school or with a major in biology. It has a number of advancements in functionality compared to other microscopes in its class, such as enhanced LED lighting and a centerable condenser. Use the microscope for studying fixed or live cells, bacteria, plants and soil, or water samples.

The monocular head keeps things simple. The use of a single eyepiece means that no adjustments are necessary for eye alignment or symmetrical focus. The head can rotate 360° for viewing from different positions. Interchangeable eyepieces allow you to change the overall magnification with optional lenses, or use a camera in place of the eyepiece to view microscopic images on a computer monitor or other display.

The objective turret provides instant access to 4 magnification levels to easily focus in on minute details from 40X to 1000X. An additional 25X eyepiece expands the maximum magnification to 2500X with 6 unique levels. This covers magnifications needed for studying hair follicles, cells, and bacteria. These high-quality lenses are achromatically corrected to improve resolution and color accuracy.

The 2-layer mechanical stage provides smooth and precise movement for examination of specimen slides. The stage's low-position controls are conveniently placed near the coaxial focus knobs for a streamlined workflow. Examining specimen slides is intuitive and precise for users at any skill level.

The LED sub-stage lighting provides cool, energy-efficient illumination. The light-source is daylight balanced to produce natural colors for imaging. With our specially developed fly-eye lens, the light is evenly distributed at maximum brightness to improve contrast and resolution. Illumination is further enhanced by a centerable Abbe condenser, which can be realigned for any magnification to guarantee proper lighting.

Monitor and capture photos and videos with the included 1MP digital eyepiece camera. The compact, lightweight camera can be used in place of an eyepiece to watch live images, and to record photos or videos on your computer. This ability to view microscopic images on your computer reduces eye-strain, and allows groups of people to view images at the same time. Our professional software for Windows provides a wide assortment of capture and photo-editing functions including color correction, time-lapse capture, image stitching, and a full complement of measuring tools. A lite version of our software is available for Mac and Linux with essential functionality for capturing photos and videos.

Specifications :

Eyepieces: 10X (with pointer), 25X

Objectives: Achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil)

Head: monocular, 45° incline, 360° swivel

Nosepiece: forward, ball-bearing quadruple

Mechanical Stage: 3D double-layer with caliper

- Size: 118mm x 127mm

- Travel Range (X-Y): 70mm x 21mm

Condenser: NA1.25 Abbe condenser with iris diaphragm

Transmitted Illumination: variable-intensity LED

Focusing: coaxial coarse & fine knobs on both sides

Power Supply: 100-240VAC, 50/60Hz, AC/DC adapter (UL approved) Included

Camera Specifications

Sensor Type	CMOS

Sensor Optical Format	1/3"

Active Pixels	1M (1280 x 1024)

Pixel Size	3.6µm x 3.6µm

Active Sensor Area	4.61mm x 3.69mm

Shutter	electronic rolling shutter

Spectral Response	380-650nm with IR-cut filter

Capture Resolution and Maximum Framerate	7.5fps @ 1280x1024 12.5fps @ 1024x768 12.5fps @ 800x600

Connectivity	USB 2.0

Power	5VDC over USB

Software

OS Requirements

Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+

Hardware Requirements

Intel Core2 2.8GHz or comparable processor, 4GB RAM

Features

Windows Version

Live video preview

Captures still images and video

Time-lapse capture

Exposure and white-balance controls

Image processing

Measurement tools, including lines, arcs, polygons

Segmentation and counting tools

Image-stitching, extended depth-of-field, HDR

Mac/Linux Versions

Live video preview

Captures still images and video

Exposure control

Color adjustment

Measurement tools, including lines, arcs, polygons

Packing List:

One monocular microscope head

One microscope body

Four objective lenses: 4X, 10X, 40X, 100X

One 10X eyepiece

One 25X eyepiece

One blue color filter

One dust cover

One sample immersion oil

One digital eyepiece camera

Two sizing adapters

One mini USB to USB type A cable

One software CD
